Safety of Moving Walks and Escalators Step Dynamic Test/Testing Machine
1 Piece
$40,0001 Piece
$20,000Product information
High-quality Safety of Moving Walks and Escalators Step Dynamic Test/Testing Machine supplied by Shandong Yuxi Instruments Co., Ltd.. Bulk wholesale pricing ranges from $20,000 to $40,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Frequency Range:
0.1—40Hz
Accuracy Grade:
1
Production Capacity:
100 Set /Year
Weight:
1000-2000Kg
Max Diameter Of Workpiece:
1200mm
Test Platform:
1800mm×1000mm×800mm(L*W*H)
Distance Between Columns:
530mm
HS Code:
9031809090
Specifications
Frequency Range:
0.1—40Hz
Accuracy Grade:
1
Production Capacity:
100 Set /Year
Weight:
1000-2000Kg
Max Diameter Of Workpiece:
1200mm
Test Platform:
1800mm×1000mm×800mm(L*W*H)
Distance Between Columns:
530mm
HS Code:
9031809090
Maxcapacity:
<1000KN
Mass Scope Of Workpiece:
<900kg
Power Source:
AC380V
Transport Package:
Carton
Control:
Computer Control
Model NO.:
DFT-TB
Display:
Digital
Loading Method:
Dynamic Load
Load Way:
Electronic Load
Application:
Escalator Steps and Moving Walks Pallets
Trade Term:
FOB
Type:
Fatigue Testing Machine
Constant Pressure Servo Pump Station:
Flow 36L/Min, 21MPa,Motor Power 15kw
Origin:
Jinan, China
Maximum Test Space:
No Less Than 750mm
Payment Term:
To be discussed
Oil Cylinder Position:
Under
Trademark:
YUXI
Specification:
± 20kN
Maximum Static Test Force:
±20kN, Accuracy± 1% Within 2-100% Fs
Maximum Dynamic Test Force:
±20kN,Accuracy± 1% Within 2-100% Fs
Maximum Amplitude:
±50mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
a kind of brake lining friction material friction performance drag tester, a kind of chase testing machine loading device and test equipment, A kind of pendulum impact tester, a kind of pulley laser alignment tool, Certificate of trademark registration, ISO 9001, Radiation Safety Permit
Product descriptions from the supplier
SONA2024 2.2.1

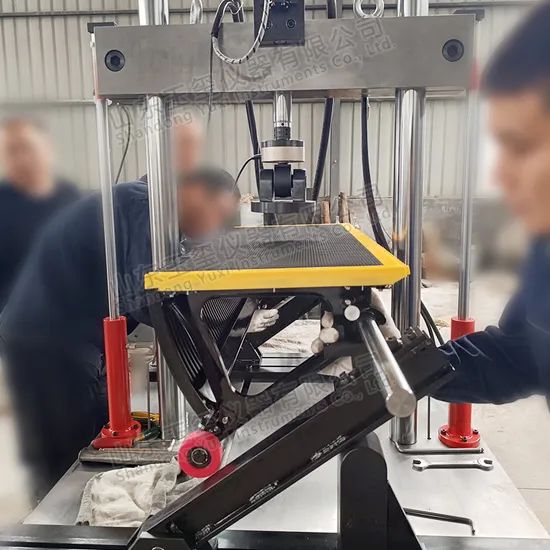

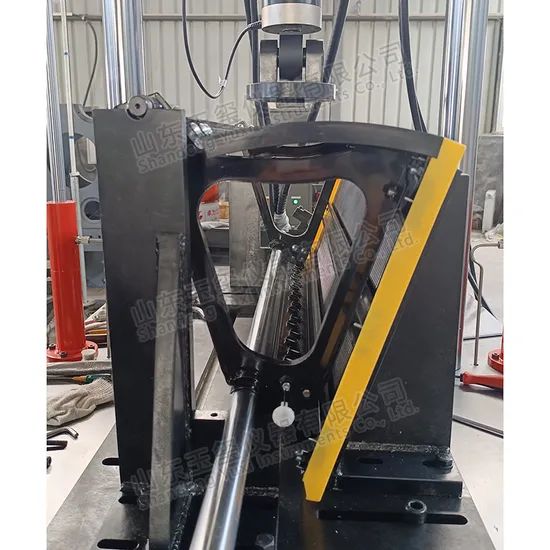

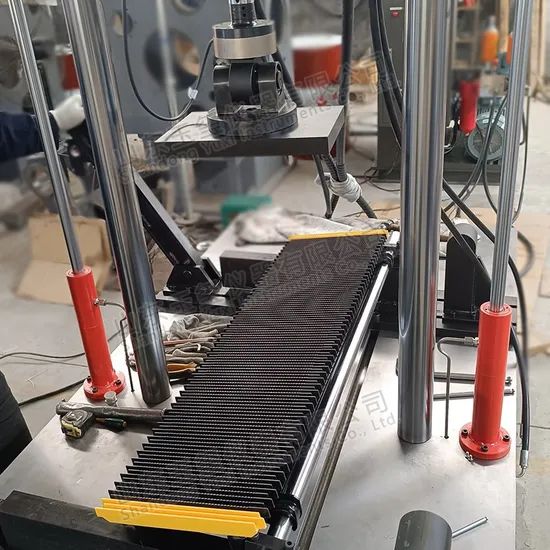

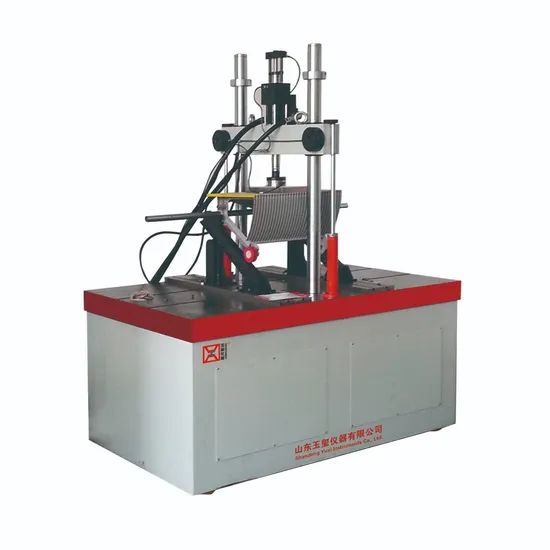

Safety of Moving Walks and Escalators Step Dynamic Test/Testing Machine
Application:
This testing machine is applicable for static and dynamic test for the steps and pallets of escalator and moving walks.
With additional clamps and fixtures, this machine can complete the dynamic and static mechanical properties of materials and components,including Tensile, compression, low cycle and high cycle fatigue tests of materials and components.
Test standards and project
EN 115-1:2017 <Safety of escalators and moving walks >
5.3.3.2 Static test:
Test project in "5.3.3.2.1 steps, 5.3.3.2.2 step riser, 5.3.3.2.3 pallets"
5.3.3.3 Dynamic test
Load test in "5.3.3.3.1 steps, 5.3.3.3.2 Pallets"
Product Show
Specification
Technical Parameter | ||
Maximum static test force: | ±20kN, accuracy± 1% within 2-100% FS | |
Maximum dynamic test force: | ±20kN,accuracy± 1% within 2-100% FS | |
Maximum amplitude: | ±50mm | |
Frequency range: | 0.1—40Hz | |
Maximum test space: | No less than 750mm | |
Distance between columns: | 530mm | |
Test platform: | 1800mm×1000mm×800mm(L*W*H) | |
Constant pressure servo pump station : | Flow 36L/min, 21Mpa,Motor power 15kW | |
Company Profile
Shandong YUXI Instrument Co., Ltd
Founded in 2006, YUXI Instrument Co, Ltd is professional in developing, manufacturing, marketing and servicing of instruments and equipment. And now YUXI is one of the largest suppliers in China, with wide products range, competitive price, reliable quality and perfect after-sales service, we have won good reputation from the customers.
We have 10 product lines covering over 20 kinds of products. Now we mainly offer 5 product lines for export business, including followings. To satisfy the customer's need, we launch 2 new products per year.
-Elevator inspection and testing tool
-Escalator inspection and testing tool
-Brake pad& lining testing equipment
-Material mechanic testing machine
-Torque calibration equipment
Our products have been certified by ISO9001. Now our products have been exported to more than 20 countries, including India, Indonesia, UAE, Saudi Arabia, Philippines, Myanmar, Austria, Brazil, Peru, Egypt, Nigeria, Kenya, Zambia, Tanzania, Ghana, Cameroon, etc.
Our Mission
Is to be one-stop manufacturer for measurement/inspection/testing/Calibration solutions by offering professional, reliable and high cost-effective products and solutions, as well as the satisfactory after-sale service.
Our Culture
Profession & Accuracy
We are looking for foreign partners who are interested in distributing our products or OEM cooperation.
Factory Show
Certifications
FAQ
1. Are you a manufacturer or trading company?
We are manufacturer, have our own R&D team,Software copyright certificate, registered mark and ISO 9001 quality management system certification.
2. What is your payment terms?
T/T ,L/C at sight,Credit card and so on. Other payment is negotiable
3. What about the lead time?
Portable testers and tools: 4-10 days.
Regular testing machines: 10-20 days.
Customized testing machines: 15-40 working days.
4. What about the warranty?
One year.
5. Can I request OEM service?
OEM order is welcome.
