Sand Making Processing Machinery Vibrating Screen
Set
Negotiable
Product information
High-quality Sand Making Processing Machinery Vibrating Screen supplied by Shanghai Super-Above Industry Holdings Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Warranty:
1 Year
Number Of Layer:
1-4 Layers
Capacity:
10-1000tph
Motor Power:
11-37kw
Inclination:
18-25 Degree
Voltage:
220V/380V or as Required
Mesh Size:
3-100mm
Production Capacity:
300 Sets/ Month
Specifications
Warranty:
1 Year
Number Of Layer:
1-4 Layers
Capacity:
10-1000tph
Motor Power:
11-37kw
Inclination:
18-25 Degree
Voltage:
220V/380V or as Required
Mesh Size:
3-100mm
Production Capacity:
300 Sets/ Month
Max Feed Size:
400mm
Vibrating Frequency:
730-970r/Min
HS Code:
8474100000
Main Body Material:
Carbon Steel/ Stainless Steel 304
Running Track:
Circular Vibrating Screen
Supporting Device:
Coil Spring
Customized:
Customized
Shaft Number:
Double
Trade Term:
FOB, CIF, CFR
Certification:
ISO9001:2008, BV, Ce, SGS
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Mesh Material:
Manganese Silk Weaving
Usage:
Mine Shaker
Keywords:
Mining Circular Vibrating Screen Machine
Condition:
New
Object:
Ore
Port Of Loading:
Shanghai Port
Origin:
Shanghai, China
Motor Brand:
Siemens or Chinese Famous Brand
Works:
Spiral Flash Shaker
Transport Package:
Steel Frame + Wooden Box
Installation:
Under Engineer's Guide
Transmission Structure:
Vibrating Screen
Color:
White, Black, Grey or as Required
Specification:
YK&S5X series vibrating screen
Model NO.:
YK&S5X series vibrating screen
Trademark:
super-above
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2014-11-06
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Shanghai Port
Certificates:
CE, CE of generator, ISO, SGS
Product descriptions from the supplier

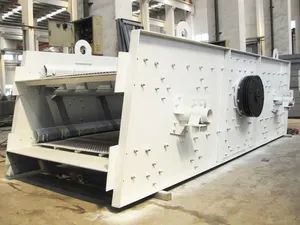

sand making processing machinery vibrating screen
Product description of vibrating screen
The circular vibrator is driven by an inertial vibrator with an eccentric block fixed in it, which makes the sieve box vibrate. Because of the position deviation of the vibrator installation, the actual motion track of the sieve box is usually ellipse. The machine mainly comprises a sieve box, a screen mesh, a vibrator, a vibration-damping spring device, a chassis, a suspension(or support)device,and an electric motor. In addition, the vibrator adopts the eccentric structure, the feeding box can be selected, the application of the feeding box increases the effective screening area of the vibrating screen, and the service life of the feeding end screen is prolonged.
Features and Advantage of vibrating screen
1. Reliable structure and strong vibration force, high screening capacity.
2. Widely used in mining, building materials, metallurgy, energy and chemical industries.
3. Vibrating screen can be adjusted of the screen inclination to achieve the best screening effect.
4. Low noise and smooth structure small impact on the motor.
5. Wide application and high screening efficiency.
6. Low noise and no dust that create a good working environment.
7. Replace the different mesh sizes to meet customers' requirements.
8. Screen replaceable for different mesh sizes, multilayer screens.
Complete sand crushing, screening and washing line with vibrating screen

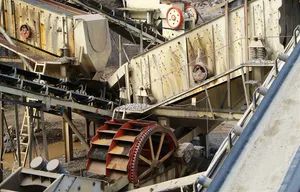

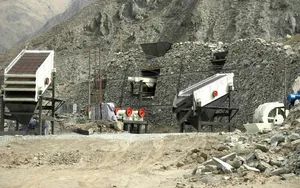

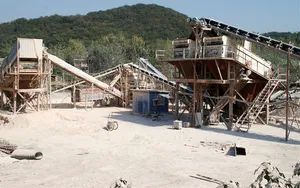

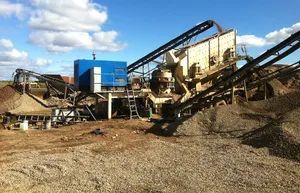

Woking sites from different clients
Working principle of vibrating screen
Vibrating screens is compiled of mainframe, eccentric bock, screen web, rub spring, electric motor, coupler and some more. Vibrating Screen moves round. It has multi-layers and is of high efficiency. The eccentric shaft vibration exciter and partial block help to adjust amplitude. The material drops down along the long line.We have always kept in our minds the choices, preferences and the tastes of our all clients. We will offer you suitable type according to your requirements.
Specifications of vibrating screen
1>. S5X series vibrating screen
| Model | Screen Size W×L(mm) | Screen Layers | inclination (°) | Vibration frequency (RPM) | Double amplitude (mm) | Power (kW) | Capacity(t/h) | Mesh Size(mm) |
| S5X1230-2 | 1200×3000 | 2 | 18(18-25) | 800-900 | 7-12 | 11 | 25-200 | 2-70 |
| S5X1545-2 | 1500×4500 | 2 | 18(18-25) | 800-900 | 7-12 | 11 | 45-380 | 2-70 |
| S5X1545-3 | 1500×4500 | 3 | 18(18-25) | 800-900 | 7-12 | 15 | 45-380 | 2-70 |
| S5X1845-2 | 1800×4500 | 2 | 18(18-25) | 800-900 | 7-12 | 15 | 60-450 | 2-70 |
| S5X1845-3 | 1800×4500 | 3 | 18(18-25) | 800-900 | 7-12 | 22 | 60-450 | 2-70 |
| S5X1860-2 | 1800×6000 | 2 | 18(18-25) | 800-900 | 7-10 | 15 | 75-600 | 2-70 |
| S5X1860-3 | 1800×6000 | 3 | 18(18-25) | 800-900 | 7-12 | 30 | 75-600 | 2-70 |
| S5X1860-4 | 1800×6000 | 4 | 18(18-25) | 800-900 | 7-12 | 37 | 75-600 | 2-70 |
| S5X2160-2 | 2100×6000 | 2 | 18(18-25) | 800-900 | 7-12 | 22 | 85-700 | 2-70 |
| S5X2160-3 | 2100×6000 | 3 | 18(18-25) | 800-900 | 7-12 | 30 | 85-700 | 2-70 |
| S5X2160-4 | 2100×6000 | 4 | 18(18-25) | 800-900 | 7-11 | 37 | 85-700 | 2-70 |
| S5X2460-2 | 2400×6000 | 2 | 18(18-25) | 800-900 | 7-12 | 22 | 100-800 | 2-70 |
| S5X2460-3 | 2400×6000 | 3 | 18(18-25) | 800-900 | 7-11 | 30 | 100-800 | 2-70 |
| S5X2460-4 | 2400×6000 | 4 | 18(18-25) | 800-900 | 7-10 | 37 | 100-800 | 2-70 |
| S5X2760-2 | 2700×6000 | 2 | 18(18-25) | 800-900 | 7-12 | 30 | 120-900 | 2-70 |
| S5X2760-3 | 2700×6000 | 3 | 18(18-25) | 800-900 | 7-11 | 37 | 120-900 | 2-70 |
2>. YK series vibrating screen
| Model | Screen Size (mm) | Layers | Mesh Size (mm) | Feeding Size (mm) | Capacity (t/h) | Power (kw) | Motor Model |
REV (r/min) | Amplitude (mm) | Angle (°C) | Machine Size (mm) |
| 2YK1237 | 1200×3700 | 2 | 3-50 | ≤200 | 7.5-80 | 4-15 | Y160L-4/15 | 970 | 8 | 20 | 4010×2250×2660 |
| 3YK1237 | 1200×3700 | 3 | 3-50 | ≤200 | 7.5-80 | 4-15 | Y160L-4/15 | 970 | 8 | 20 | 4010×2250×3140 |
| 2YK1548 | 1500×4800 | 2 | 5-50 | ≤400 | 50-208 | 4-15 | Y160L-4/15 | 970 | 8 | 20 | 5120×2590×3060 |
| 3YK1548 | 1500×4800 | 3 | 5-50 | ≤400 | 50-250 | 4-15 | Y160L-4/15 | 970 | 8 | 20 | 5120×2590×3540 |
| 2YK1848 | 1800×4800 | 2 | 5-80 | ≤400 | 50-260 | 4-18.5 | Y180M-4/18.5 | 970 | 8 | 20 | 5120×2950×3060 |
| 3YK1848 | 1800×4800 | 3 | 5-80 | ≤400 | 50-300 | 4-18.5 | Y180M-4/18.5 | 970 | 8 | 20 | 5120×2950×3540 |
| 2YK1860 | 1800×6000 | 2 | 5-80 | ≤400 | 50-300 | 4-18.5 | Y180M-4/18.5 | 970 | 8 | 20 | 6260×2950×3480 |
| 3YK1860 | 1800×6000 | 3 | 5-80 | ≤400 | 50-350 | 4-22 | Y180L-4/22 | 970 | 8 | 20 | 6260×2990×3960 |
| 2YK2160 | 2100×6000 | 2 | 5-150 | ≤400 | 100-500 | 4-22 | Y180L-4/22 | 730 | 6-8 | 20 | 6270×3410×3670 |
| 3YK2160 | 2100×6000 | 3 | 5-100 | ≤400 | 100-500 | 4-30 | Y200L-4/30 | 730 | 6-8 | 20 | 6270×3470×4100 |
| 2YK2460 | 2400×6000 | 2 | 5-150 | ≤400 | 150-700 | 4-37 | Y225S-4/37 | 730 | 6-8 | 20 | 6270×3770×3610 |
| 3YK2460 | 2400×6000 | 3 | 5-150 | ≤400 | 150-700 | 4-37 | Y225S-4/37 | 730 | 6-8 | 20 | 6270×3790×4100 |
Packing&Shipping
1>.Packaging Detail:
Export standard,nude packing in container.if client have requirement,we can use wooden case.
2>.Transportation:
1. These machines are processed to be rustproof and moisture proof before delivery.
2. Large mainframes are in nude, while small spare parts and motors are in wooden boxes.
3. All items are in bulk or containers, details will be negotiated by both parts afterwards.
Company Services
1. Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3.After-sale services: Available
To establish long term friendship, we will regularly pay return visit to customers.
Supplying technique, building design, instruction, installation and debugging for free.
4.We offer one year warranty to make sure your machine runs consistently.
We always offering lifelong services and provide spare parts for a long term,and repairing main parts under right using for free in two years.
FAQ
1.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.
2.Guaranteed:
If products'quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3.How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that " for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity".
4.Service and Payment Terms?
A. We usually accept T/T, L/C;
B. T/T: 30% in advance as down payment, the balance before delivery;
C. We take pictures of finished products before delivery.
