Sanitary Napkin Paper Making Machine Trademark JRX Model NO. JRX Condition New Certification CE Specification SGS Automation

High speed toilet tissue paper making machine

1.The process flowing chart:
Raw materials -pulper--vibrating sieve--pulp tank--pulp pump--bleach machine(thruster)--refiner machine--pulp tank--pulp pump--pressure sieve--pulp tank-- pulp pump--except sand machine--net box--cylinder--blanket--paper making machine--drying--roll paper--the big finished jumbo paper -- process machine.


2.Main structure
*. cylinder part: 1500mm×2250mm stainless steel wire mould(1pc), Cylinder mould pressure forming machine (1 set),450mm×2250mm couch roll(1 pc),rubber HSD38°±2

*. Dryer part: 2500mm×2250mm Dryer ( 1 pc ), 500mm×2250mm carrier roller( 1 pc ), 300mm×2250mm wringing roll(2 pcs),including all the felt carrying rolls,air-powered pressure device,rubber HSD 90°±2, equiped with double-layer exhaust bood on the dryer.

*.Winding part:1000mm×2250mm sweat cylinder (1pc),280mm×2250mm fly rubber roll( 1pc ).rubber HSD75°±2. winding on the sweat cylinder. Equipped with the 250 speed reducer(1 set)

*. Rewinding and cutting part: matching 1880mm rewinding and perforating machine,toilet roll cutting machine..

*. Drive and control part: adopting AC frequency conversion speed, drive step by step.



Company Information

       We areQINGDAO JIERUIXIN MACHINERY AND TECHNOLOGY CO.,LTD,which company is mainly working onpaper coating machine ,paper making machine and related technology. Through more than 10 years effort , Besides the machine self ,we have our own chemist and prefer to supply chemical ,formulation ,technology and other suggestion to customers.Then our formulation will match our machines ,and get the best quality paper for them. Now Our company had been one of the famous paper coating machine manufacturer in China and our coating machine and technology had been exported to Iran,Egypt,Mexico,Australia , India and etc. Our Survice

♦. Reasonable suggestions for selection of equipment
♦. Provide detailed description and assembly drawing , to make you more aware of the device's ability to work
♦. Engineers on-site equipment installation and commissioning
♦. Train and teach your worker to operate the paper machine
♦. Professional technical guidance and technical support during your production, make sure the device's work properly      and production
♦. Equipment modification and updating
♦. We will testing installation machine in the factory workshop , to ensure safety and quality
♦. Supply Carbonless paper and Paper coating chemicals ,formulation ,technology and other suggestion to customers.
♦. After-sales service for one year: equipment maintenance guidance
♦. Provide Turnkey projects



Our Product Display

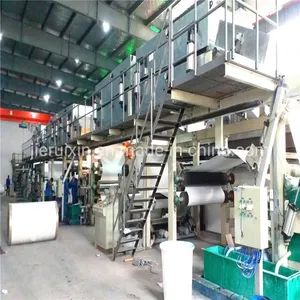

These are our mainpaper coating machineas follows. Any other requirments, please feel free to contact with us. We acceptcustomized productsat the basis of complying with the requirements of technical specification. Very glad and look forward to your inquiry.

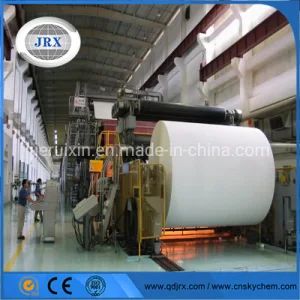

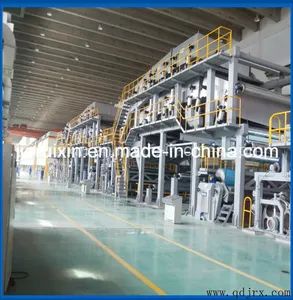

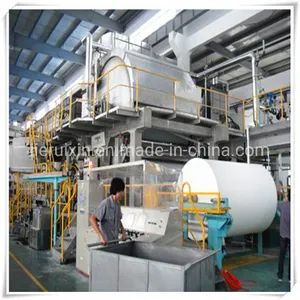

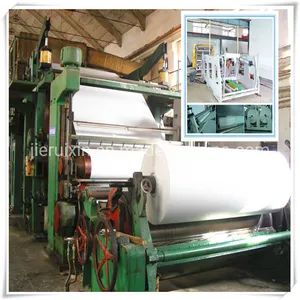

 These are ourPaper making machine.


These are ourequipment accessory and machine parts as follows, meeting your needs is our belief, best service for you is our pleasure.

we have our own chemist and prefer to supplychemical ,formulation ,technologyandother suggestionto customers.Then our formulation will match our machines ,and get the best quality paper for them.
