Satin Label Printing Machine
1 set
$1,000,0001 set
$400,000Product information
High-quality Satin Label Printing Machine supplied by Good Choice Machinery Co., Ltd. Bulk wholesale pricing ranges from $400,000 to $1,000,000 per set with a minimum order of 1 set. Inquiry for latest prices.
Printable Thickness:
0.02-0.35mm
Max. Unwind Roll Diameter:
1000mm
Printing Speed:
120m/Min
Production Capacity:
20 Sets/Month
Specification:
30m(L) x 3m(W)
Max. Printing Width:
315mm
Max. Web Width:
330mm
Printing Colors:
5 Offset Units+2 Flexo Units
Specifications
Printable Thickness:
0.02-0.35mm
Max. Unwind Roll Diameter:
1000mm
Printing Speed:
120m/Min
Production Capacity:
20 Sets/Month
Specification:
30m(L) x 3m(W)
Max. Printing Width:
315mm
Max. Web Width:
330mm
Printing Colors:
5 Offset Units+2 Flexo Units
Printing Color:
7 Colors
HS Code:
8443160001
Automatic Grade:
Automatic
Anilox Roller:
Ceramic Anilox Roller
Origin:
China
Trade Term:
FOB, CIF
Application:
Flexible Packaging Printing
Embossing Structure:
Flexo Printing Machine
Type:
Flexo Printing Machine
Trademark:
JD
Model NO.:
JD-P+ 330
Payment Term:
LC, T/T
Port Of Loading:
Shanghai port
Printing Page:
Single Faced
Transport Package:
Standard Export Package
Dryer:
UV& IR
Structure:
Unit Type
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2017-11-17
Annual Revenue Amount:
Not specified
Numbers Of Employees:
6
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF
Port Of Loading:
Shanghai port
Product descriptions from the supplier

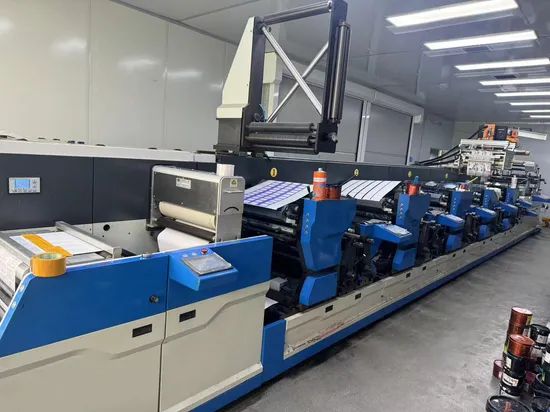

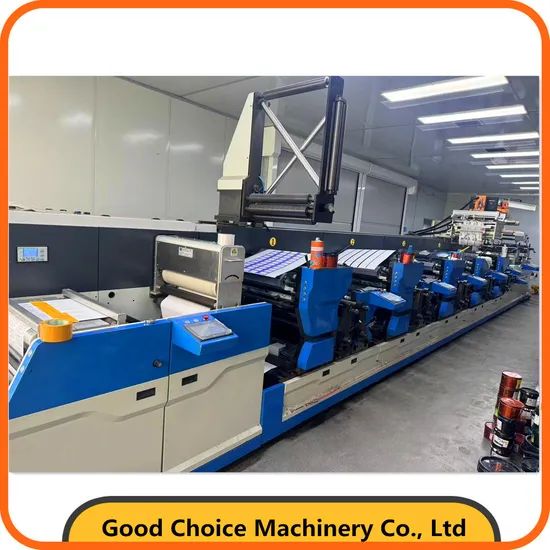

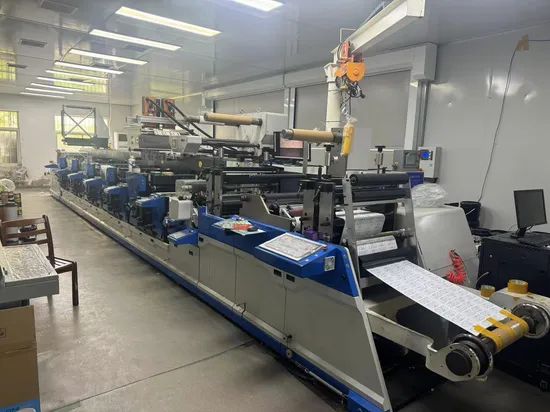

JD-P+ 330 combined machine with 5 offset units+2 flexo unit
JD-P+ customized version combination printing machine
"Offset-flexo combination" offers the best solutions forlabel printing
* Combination of offset and flexo printing - for maximum versatility
* Developed from the sheet-fed offset press - for optimal print quality
* Flexo unit is suitable for a variety of substrates - for greater flexibility
* Flexible application of inline technologies - offers comprehensive solutions
* Pre-registration and auto registration system - easier to operate
JD-P+ customized version 520/420/330-series combination printing machine is the perfect combination of offset and flexo printing. The modules are specifically designed for the label printing industry to ensure extremely high print quality and have the ability to print on a wide variety of materials.
This machine is ideal for a variety of substrates from0.02mm to 0.35mm including Cardboard,film, self-adhesive label, metal foil,cotton paper and etc. The wide range of acceptable substrates makes this a very versatile machine.
1Automatic web guide system
The ultrasonic sensor automatically corrects the left and right position when feeding paper or film.
2Unique adjustment mechanismis designed to handle the most demanding registration requirements.
3Quick change cylinder
4 Adjustment handleswith servo drives
5Inline flexo printing (option)
6 Optimized design of the offset ink unit
1Offset-flexo combination
Offset and flexo printing unitscan be customized upon request.
The offset printing unit was developed from the sheet-fed offset printing machine. The unique design of the ink unit allows for the ink and water to be balanced and stabilized quickly.
2Get the highest print quality
Pre-registration system and auto registration system - With the pre-registration system, the plate roller will automatically search for the zero position for registration. Consequently, this system makes it possible to achieve faster changeover time and reduce material loss. The printing process needs no manual adjustment to ensure the best registration. The automatic registration has an accuracy tolerance of 0.01 mm.
Flexible application of inline technologies- Cold foil stamping, laminatingandcoatingcan be used for different product requirements.
3Higher degree of automation makes it operator friendly
JD-P+series machine automation components include: pneumatic roll lift on unwind station, automatic web guide, web break monitoring, automatic adjustment of printing pressure, automatic calculation of the plate length and automatic print registration. In addition, the ink-water balance can also be adjusted to the machine speed automatically.
| Model | JD-P+ 330 |
| Printing Speed | 120m/min |
| Printing Colors | 5 offset units+2 flexo units |
| Max. Printing Repeat length | 600.075mm(189 Teeth). |
| Min. Printing Repeat length | 428.625mm(135 Teeth). |
| Max. Web Width | 330mm |
| Max. Printing Width | 315mm |
| Printable Thickness | 0.02-0.35mm |
| Max. Unwind Roll Diameter | 1000mm |
| Max. Rewind Roll Diameter | 1000mm |
| Cold Foil Stamping: Max. Unwind Roll and Rewind Roll Diameter |
400mm |
| Offset Plate Thickness | 0.30mm |
| Flexo Plate Thickness | 1.14mm |
| Blanket Thickness | 1.95mm |
| Margin | 3mm |
1Basic machine and equipment
| No. | Equipment | Qty. |
| 1 | Unwind unit | 1 |
| 2 | Web-guider | 1 |
| 3 | Tension control | 1 |
| 4 | Video inspection | 1 |
| 5 | Rewind unit | 1 |
| 6 | Master control cabinet | 1 |
2Offset printing units
| No. | Equipment | Qty. |
| 7 | Offset units | 5 |
| 8 | Auto registration for printing | 5 |
| 9 | Remote ink control | 5 |
3Flexo printing units
| No. | Equipment | Qty. |
| 10 | Flexo units | 2 |
| 11 | Auto registration for printing | 2 |
4Drying equipment
| No. | Equipment | Qty. |
| 12 | Dryer UV (traditional UV)for flexo units | 2 |
| 13 | Dryer UV (LED) for offset units | 5 |
5Ancillary Equipment
| No. | Equipment | Qty. |
| 14 | Alcohol box | 1 |
6Options
| No. | Equipment | Qty. |
| 15 | Bending Machine | 1 |
| 16 | Plate installation machine | 1 |
| 17 | Corona | 1 |
| 18 | Dust remover | 1 |
| 19 | Turn bar | 1 |
| 20 | Cold foil | 1 |
| 21 | Delam/relam | 1 |
| 22 | Sleeves for offset units | 3 sets |
| 23 | Anilox rollers for flexo units | 4 pcs |
Warmly welcome to visit our factory!
1 Price or Quotation of this machine
It iscustommachine!
So,please directly tell us:
the pictures of your label;
Printing material;
All related requirements!
we quote according to your requirements!
