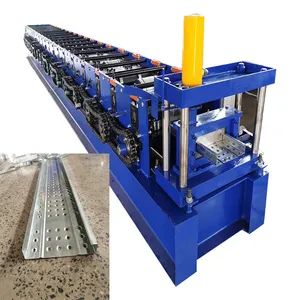

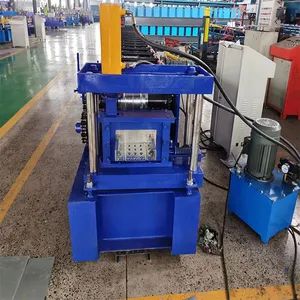

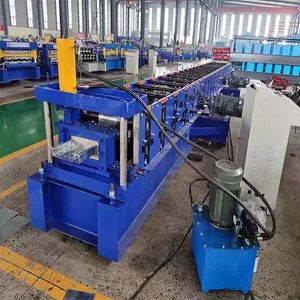

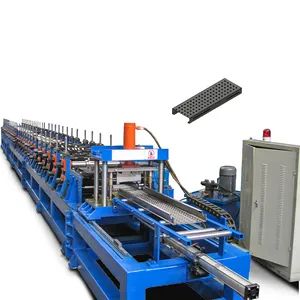

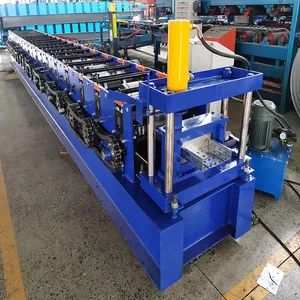

Scaffolding Platform Steel Walking Panel Scaffolding Boards Making Roll Forming Machine
Piece
Negotiable
Product information
High-quality Scaffolding Platform Steel Walking Panel Scaffolding Boards Making Roll Forming Machine supplied by Cangzhou Guangchi Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Working Speed:
10-12 Meters / Min
Package Size:
1200.00cm * 100.00cm * 100.00cm
Package Gross Weight:
13000.000kg
Production Capacity:
200PCS/Year
Main Frame:
350h Steel
Roller Material:
45#Steel Chrome Plated
Certification:
CE, ISO
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Specifications
Working Speed:
10-12 Meters / Min
Package Size:
1200.00cm * 100.00cm * 100.00cm
Package Gross Weight:
13000.000kg
Production Capacity:
200PCS/Year
Main Frame:
350h Steel
Roller Material:
45#Steel Chrome Plated
Certification:
CE, ISO
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Cutting Blade Material:
Cr 12 High Grade Steel
Customized:
Customized
Transmission Method:
Electric
Trade Term:
FOB, CIF, CFR, EXW
Tile Type:
Glazed Steel
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Condition:
New
Control System:
PLC(Imported Brand)
Machine Type:
Roll Forming Machine
Usage:
Roof
Payment Methods:
Support payments in USD
Port Of Loading:
Tianjin Port
Transport Package:
by Sea
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013-12-12
Annual Revenue Amount:
Not specified
Numbers Of Employees:
9
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Tianjin Port
Certificates:
Certificates
Product descriptions from the supplier
SONA2024 2.2.1
Scaffolding Plank Roll Forming Machine | ||
Machinable Material | A) Galvanized Steel | Thickness(MM): 1.5-2.0, 2.0-2.5, up to 3mm |
B) Mild Steel | ||
Yield strength | 250 - 550 Mpa | |
Tensil stress | G250 Mpa-G550 Mpa | |
Decoiler | Manual Decoiler | * Hydraulic Decoiler(Optional) |
Punching System : | Hydraulic Punching Station | * Punching Press (Optional) |
Forming Station | About 20 Stands | * According To Your Profile Drawings |
Driving System | Chain Drive | |
Machine Structure | Wall Panel Station | * Cast Iron Stands(Optional) |
Forming Speed | 5-15 (M/MIN) | * According To Your Profile Drawings |
Rollers’ Material | GCr15 | * Cr12 (Optional) |
Cutting System | Hydraulic Cutting | * Servo Tracking Cutter (Optional) |
Frequency Changer Brand | Yaskawa | * Siemens (Optional) |
PLC Brand | Panasonic | * Siemens (Optional) |
Power Supply | 380V 50Hz 3ph | * Or According To Your Requirment |
Machine Color | Industrial Blue | * Or According To Your Requirment |
roll forming
Scaffolding, also called scaffold or staging, it is a temporary structure used to support a work crew and materials to aid in the construction, maintenance and repair of buildings, bridges and all other man-made structures. Scaffolds are widely used on site to get access to heights and areas that would be otherwise hard to get to. Unsafe scaffolding has the potential to result in death or serious injury. Scaffolding is also used in adapted forms for formwork and shoring, grandstand seating, concert stages, access/viewing towers, exhibition stands, ski ramps, half pipes and art projects.
cutting
Working type: hydraulic cutting drive mode: column cylinder cutting device structure: guide column tool material: GB-Cr12 heat treatment cutting length tolerance: 1mm/3m cutting characteristics: stable and safe working state oil pipe and wire connection all
pipes and wires They will be marked with numbers or letters, so it is very easy to connect for unprofessional customers.
pipes and wires They will be marked with numbers or letters, so it is very easy to connect for unprofessional customers.
Standard unwinding machine
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading
capacity:5T,Inner diameter: 500-508mm.
capacity:5T,Inner diameter: 500-508mm.
CONTROL PANELS
Frequency brand:Delta,PLC
brand:Delta Screen
type:Touch screen, also have buttons on the panel Screen language:English /Chinese/Spanish
Low pressure electric part: Schneiders brand
Encode:Omron brand Remark:Support multi orders input,ensure the machine canwork continuously according to different request without stop.
All the electrical parts are branded with high quality, it can be fixed easily if damaged.
Product Description

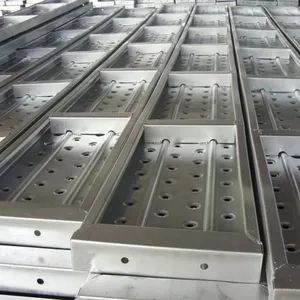

1.Scaffolding System Manufacturing
Fastener-Type Scaffold Planks: Standard scaffold platforms for high-rise building construction
Frame Scaffold Planks: Interior decoration, exterior wall maintenance work platforms
2. Aerial Work Platforms
Scissor Lift Platform Planks: Shopping malls, factory building interior maintenance platforms
Boom Lift Work Platforms: Bridge maintenance, large equipment installation
Fastener-Type Scaffold Planks: Standard scaffold platforms for high-rise building construction
Frame Scaffold Planks: Interior decoration, exterior wall maintenance work platforms
2. Aerial Work Platforms
Scissor Lift Platform Planks: Shopping malls, factory building interior maintenance platforms
Boom Lift Work Platforms: Bridge maintenance, large equipment installation
3. Construction Safety Walkways
Temporary Safety Walkway Planks: Construction site personnel and material transport walkways
Fire Emergency Walkway Planks: High-rise building fire emergency evacuation walkways
Temporary Safety Walkway Planks: Construction site personnel and material transport walkways
Fire Emergency Walkway Planks: High-rise building fire emergency evacuation walkways
Company Profile
FAQ
Q:How to visit our company:
1. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
2. Fly to Shanghai Airport: By high speed train to Cangzhou Xi(4.5 hours),then we can pick up you.
1. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
2. Fly to Shanghai Airport: By high speed train to Cangzhou Xi(4.5 hours),then we can pick up you.
Q: Can you customize the machine from your company?
A: Of course, we can manufacture the machine according to your customized size demand.
A: Of course, we can manufacture the machine according to your customized size demand.
Q: How to play order?
A: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit
A: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit
Q:How to visit our company:
1. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
2. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
1. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
2. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
Q: How is the quality? Is there any department related to quality control?
A: All raw materials we use are quality controlled. Workers will take care of every detail when handling production and packaging. The quality control department is responsible for the quality of each process.
A: All raw materials we use are quality controlled. Workers will take care of every detail when handling production and packaging. The quality control department is responsible for the quality of each process.
Q: Is the packaging form?
A: Yes, of course! All our machines will be packaged in dust and water proof, and they can be reinforced after loading to fully meet export packaging standards.
A: Yes, of course! All our machines will be packaged in dust and water proof, and they can be reinforced after loading to fully meet export packaging standards.
Q: How about after-sales service?
A: TM is online 24 hours a day, and you can also contact them via email, Skype, MSN, whatsapp. and many more Two-year
warranty and parts replacement.
A: TM is online 24 hours a day, and you can also contact them via email, Skype, MSN, whatsapp. and many more Two-year
warranty and parts replacement.
