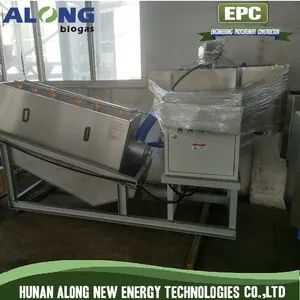

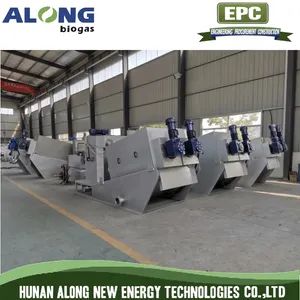

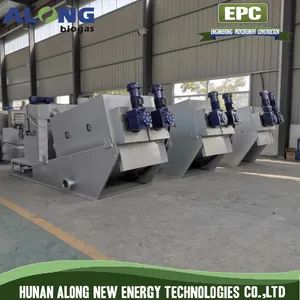

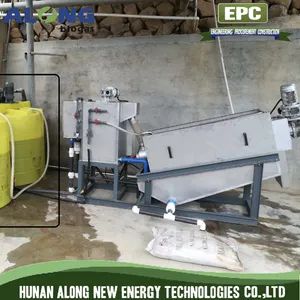

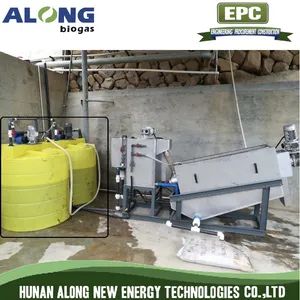

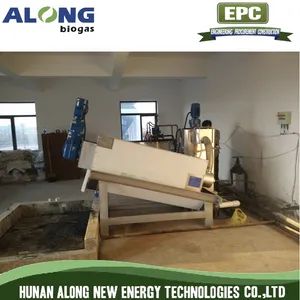

Screw Stacked Type Biogas Slurry Sludge Dewatering Machine Solid Liquid Separator Spiral Dehydrator
Piece
Negotiable
Product information
High-quality Screw Stacked Type Biogas Slurry Sludge Dewatering Machine Solid Liquid Separator Spiral Dehydrator supplied by Hunan Along New Energy Technologies Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Specification:
2600*1200*1800
Dry Sludge Processing Capacity:
5-640 Kg/Hr
Production Capacity:
5000 Units/Year
HS Code:
8521192000
Trademark:
ALONG-BIOGAS
Chemical Dosing System:
Automatic with Metering Pump
Origin:
China
Trade Term:
FOB, CFR, CIF, EXW
Specifications
Specification:
2600*1200*1800
Dry Sludge Processing Capacity:
5-640 Kg/Hr
Production Capacity:
5000 Units/Year
HS Code:
8521192000
Trademark:
ALONG-BIOGAS
Chemical Dosing System:
Automatic with Metering Pump
Origin:
China
Trade Term:
FOB, CFR, CIF, EXW
Usage:
Industrial
Payment Term:
LC, T/T, Western Union
Port Of Loading:
Shenzhen, Guangzhou
Feedstock:
Sludge From Waste-Water Treatment Plant
Material:
Stainless Steel SS304
Transport Package:
Wooden Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-07-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
Shenzhen, Guangzhou
Certificates:
CERTIFICATE, PATENT
Product descriptions from the supplier
The stacked screw sludge dewatering system operates on screw compression technology, leveraging intense pressure from variations in screw diameter and thread spacing, combined with the minimal clearance between the stationary and moving rings, to effectively press and remove water from sludge. A modern solution for solid-liquid separation. Design structure: The core unit features several stationary and floating rings, with a helical shaft passing through the filtering chamber they create. The initial part functions as a thickening zone, while the latter serves as the dewatering stage. All sludge concentration, compression, and drying occur within a single chamber, eliminating the need for conventional filter cloths or centrifugal separation, instead employing a refined, finely tuned filtration structure. Dewatering mechanism: Sludge first gathers via gravity in the thickening zone before being moved into the dewatering zone. As the filtration gap and screw pitch progressively narrow, and the back pressure plate begins to obstruct flow, significant internal pressure builds up, continuously shrinking the sludge volume until complete dehydration is achieved.
| Model | DS standard treatment amount | Sludge treatment amount (According to different concentration) | ||||
| 10000mg/L | 20000mg/L | 30000mg/L | 40000mg/L | 50000mg/L | ||
| YDL101 | 5~7kg/h | ~0.5m³/h | ~0.25m³/h | ~0.2m³/h | ~0.15 | ~0.14 |
| YDL131 | 10~14kg/h | ~1m³/h | ~0.5m³/h | ~0.4m³/h | ~0.3 | ~0.28 |
| YDL201 | 15~20kg/h | ~1.5m³/h | ~0.75m³/h | ~0.6m³/h | ~0.5 | ~0.4 |
| YDL202 | 30~40kg/h | ~3m³/h | ~1.5m³/h | ~1.2m³/h | ~1 | ~0.8 |
| YDL251 | 25~40kg/h | ~2.5m³/h | ~1.25m³/h | ~1m³/h | ~0.9 | ~0.8 |
| YDL252 | 50~80kg/h | ~5m³/h | ~2.5m³/h | ~2m³/h | ~0.8 | ~1.6 |
| YDL301 | 50~70kg/h | ~5m³/h | ~2.5m³/h | ~2m³/h | ~1.5 | ~1.4 |
| YDL302 | 100~140kg/h | ~10m³/h | ~5m³/h | ~4m³/h | ~3 | ~2.8 |
| YDL303 | 150~210kg/h | ~15m³/h | ~7.5m³/h | ~6m³/h | ~4.5 | ~4.2 |
| YDL304 | 200~280kg/h | ~20m³/h | ~10m³/h | ~8m³/h | ~6 | ~5.6 |
| YDL351 | 100~120kg/h | ~10m³/h | ~5m³/h | ~4m³/h | ~3 | ~2.4 |
| YDL352 | 200~240kg/h | ~20m³/h | ~10m³/h | ~8m³/h | ~6 | ~4.8 |
| YDL353 | 300~360kg/h | ~30m³/h | ~15m³/h | ~12m³/h | ~9 | ~7.2 |
| YDL354 | 400~480kg/h | ~40m³/h | ~20m³/h | ~16m³/h | ~12 | ~9.6 |
| YDL401 | 130~160kg/h | ~13m³/h | ~6.5m³/h | ~5m³/h | ~4 | ~3.2 |
