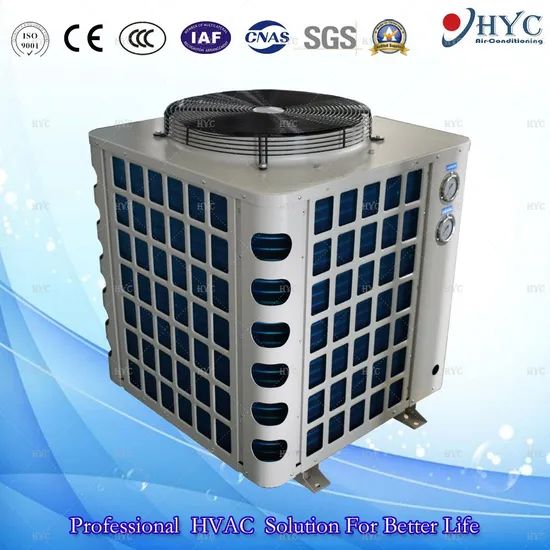

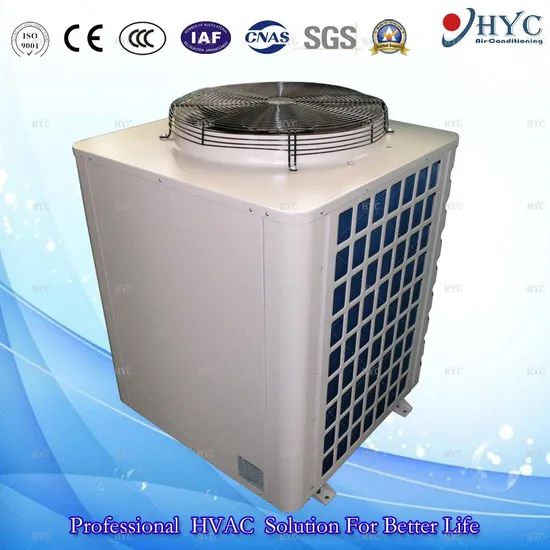

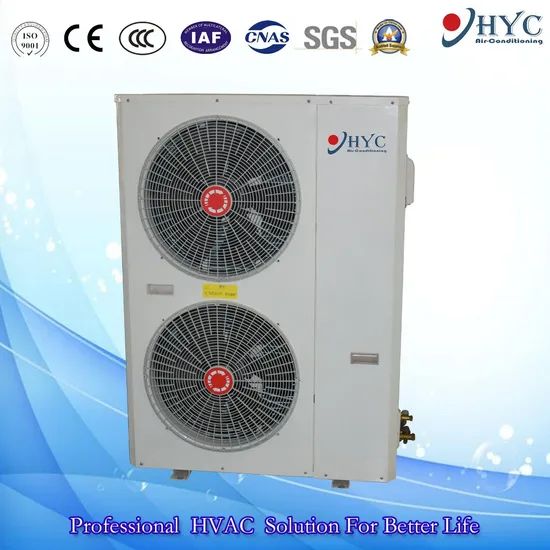

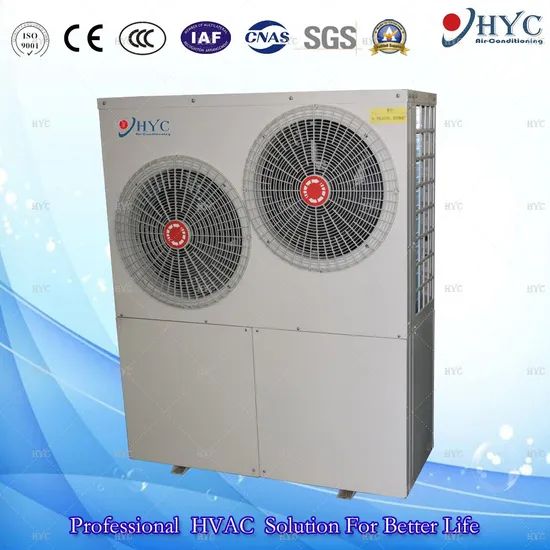

Scroll Compressor Air to Water Heat Pump Water Heater
1 Piece
$1,4001 Piece
$9,000Product information
High-quality Scroll Compressor Air to Water Heat Pump Water Heater supplied by Qingdao Hongyu Cles Air Conditioning Co., Ltd.. Bulk wholesale pricing ranges from $1,400 to $9,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Delivery Time:
30days
Production Capacity:
5000sets
Capacity:
65-130kw
Heat Source:
Air-source
Tailor Made:
Avaiable
OEM/ODM:
Avaiable
Certification:
CE, CCC
Origin:
China
Specifications
Delivery Time:
30days
Production Capacity:
5000sets
Capacity:
65-130kw
Heat Source:
Air-source
Tailor Made:
Avaiable
OEM/ODM:
Avaiable
Certification:
CE, CCC
Origin:
China
Heating Type:
Circulating Heat
Trade Term:
FOB
Transport Package:
Film/Wooden Package
Model NO.:
HCA
Trademark:
OEM/ODM/HYC
Refrigerant:
R22/R407c/R410A/R134A
Compressor Type:
Scroll
Payment Term:
To be discussed
Work Environment:
Ultra-Low Temperature
Application:
Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons
Color:
Whilte/Optional Other Colors
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
CB for rooftop packaged unit, CE certificate of DX type rooftop packaged unit, CE for air to water chiller&heat pump, CE for fan coil unit, CE for geothermal(water) source chiller&heat pump, ISO14001, ISO9001
Product descriptions from the supplier
Sincerely welcome to visit our factory at your convience. Customer could witness their order production real conditions by online videos or photos at any time during production.
STRUCTURE
The master module can work independently or together with up to 11 slave modules.
HERMETIC COMPRESSOR
The units use high efficiency, hermetically sealed, compressors, oil return lubrication and rubber vibration
damper. The thermal overload cut-out, phase sequence relay and crankcase heater are integrated as the security
protection to enhance reliability and performance.
AXIAL FAN
External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level
IP55, provided with a protective outlet grille.
EVAPORATOR
Evaporator built with high efficiency plate type heat exchanger, factory insulated with flexible close cell material.
CONDENSER
Condenser built with seamless internal screw thread copper tubes mechanically expanded into blue wave hydrophilic aluminum fins.
HYDRAULIC CIRCUIT
Hydraulic circuit built with galvanized pipe, complete with water discharge connection for tube in tube heat exchanger and flange type hydraulic connectors in two directions easy for connections from both sides of the units.
ELECTRIC PANEL
Electric panel consist of: Compressor contactor, fan motor contactor, compressor protection breaker, fan protection breaker, phase sequence relay and microprocessor with function display (display only for master/packaged unit) Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.
OPTIONAL
• Flow switch;
• Rubber anti-vibration mounting..
• Compressor soft connection
• BMS
• Stainless steel covering
• Heat recovery 20%-25%
• Remote condenser
Factory View
Production Machinery
Test Lab

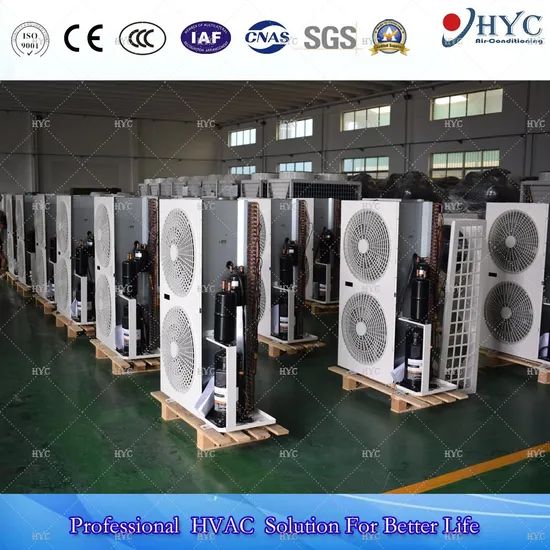

Air cooled water chiller & heat pump Production Line
Sincerely invite you to visit our factory for inspection and guidance.
STRUCTURE
The master module can work independently or together with up to 11 slave modules.
HERMETIC COMPRESSOR
The units use high efficiency, hermetically sealed, compressors, oil return lubrication and rubber vibration
damper. The thermal overload cut-out, phase sequence relay and crankcase heater are integrated as the security
protection to enhance reliability and performance.
AXIAL FAN
External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level
IP55, provided with a protective outlet grille.
EVAPORATOR
Evaporator built with high efficiency plate type heat exchanger, factory insulated with flexible close cell material.
CONDENSER
Condenser built with seamless internal screw thread copper tubes mechanically expanded into blue wave hydrophilic aluminum fins.
HYDRAULIC CIRCUIT
Hydraulic circuit built with galvanized pipe, complete with water discharge connection for tube in tube heat exchanger and flange type hydraulic connectors in two directions easy for connections from both sides of the units.
ELECTRIC PANEL
Electric panel consist of: Compressor contactor, fan motor contactor, compressor protection breaker, fan protection breaker, phase sequence relay and microprocessor with function display (display only for master/packaged unit) Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.
OPTIONAL
• Flow switch;
• Rubber anti-vibration mounting..
• Compressor soft connection
• BMS
• Stainless steel covering
• Heat recovery 20%-25%
• Remote condenser
| Model | 20 | 30 | 40 | ||
| Power supply | V-Ph-Hz | 380v/3ph/50hz | 380v/3ph/50hz | 380v/3ph/50hz | |
| Cooling* | |||||
| cooling capacity | KW | 65 | 97.5 | 130 | |
| cooling power input | KW | 20.8 | 31.2 | 41.6 | |
| cooling current input | A | 38.50 | 55.8 | 74.3 | |
| Heating** | |||||
| heating capacity | KW | 68 | 103 | 141 | |
| heating power input | KW | 21.5 | 32.25 | 43 | |
| heating current input | A | 38.4 | 57.6 | 76.8 | |
| Compressor | |||||
| qty | / | 2 | 3 | 4 | |
| input power | kW | 10.1*2 | 10.1*3 | 10.1*4 | |
| input current | A | 17.6*2 | 17.6*3 | 17.6*4 | |
| Condensor | |||||
| condensor coil qty | / | 3 | 4 | 5 | |
| air flow | m3/h | 12700*2 | 17800*2 | 23800*2 | |
| axial fan qty | / | 2 | 2 | 2 | |
| motor power input | KW | 0.75*2 | 1.1*2 | 1.5*2 | |
| Evaporator | |||||
| type | / | shell and tube | shell and tube | shell and tube | |
| water flow | m3/h | 11.2 | 16.8 | 22.4 | |
| water pressure drop | kPa | 38 | 38 | 38 | |
| water pipe | mm | DN50 | DN50 | DN50 | |
| Noise level | dB(A) | 60 | 74 | 78 | |
| Dimension(L*W*H) | mm | 2020*1000*1920 | 2020*1000*1920 | 2020*1000*1920 | |
| Net weight | kg | 605 | 830 | 925 | |
Production Machinery
Test Lab
Air cooled water chiller & heat pump Production Line
Sincerely invite you to visit our factory for inspection and guidance.
