Self-Discharging Type Electric Magnetic Separator Mass 140kg Origin China Duty Cycle 100% Belt Width 800mm Cold Power
1-9 Piece
$1,50010 Piece
$1,000Product information
High-quality Self-Discharging Type Electric Magnetic Separator Mass 140kg Origin China Duty Cycle 100% Belt Width 800mm Cold Power supplied by Yueyang Shengang Lifting Electromagnet Co., Ltd.. Bulk wholesale pricing ranges from $1,000 to $1,500 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Warranty:
1 Year, 1 Year
Duty Cycle:
100%
Weight:
100kg -8000kg, 1t
Mass:
140kg
Driving Motor Power:
2.2kw
Cold Power:
2.6kw
Unload Trigger Specification:
2.7
Standard Erection Height:
250mm
Specifications
Warranty:
1 Year, 1 Year
Duty Cycle:
100%
Weight:
100kg -8000kg, 1t
Mass:
140kg
Driving Motor Power:
2.2kw
Cold Power:
2.6kw
Unload Trigger Specification:
2.7
Standard Erection Height:
250mm
Size(L*W*H):
2750*1600*782mm
Magnetic Intensity Field:
700GS
Belt Width:
800mm
Production Capacity:
80sets Per Month
HS Code:
84741000
Material:
Carbon Steel, Carbon Steel
Origin:
China
Customized:
Customized, Customized
Energy Saving:
Energy Saving, Energy Saving
Trade Term:
FOB, CIF, CFR
Material Feature:
Fire Resistant, Heat Resistant
Specification:
ISO9001: 2008
Certification:
ISO9001:2008, ISO9001:2008
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Condition:
New, New
Color:
Orange or Others, Red
After Sales Service:
Provided
Model NO.:
RCDD-8
Application:
Remove Iron Impurities From Non-Magnetic Material
Trademark:
SHENGANG Electric Magnetic Separator
Port Of Loading:
Shanghai Port
Transport Package:
Standard Export Package Magnetic Separator
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2001-02-15
Annual Revenue Amount:
Not specified
Numbers Of Employees:
102
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Shanghai Port
Certificates:
CE
Product descriptions from the supplier

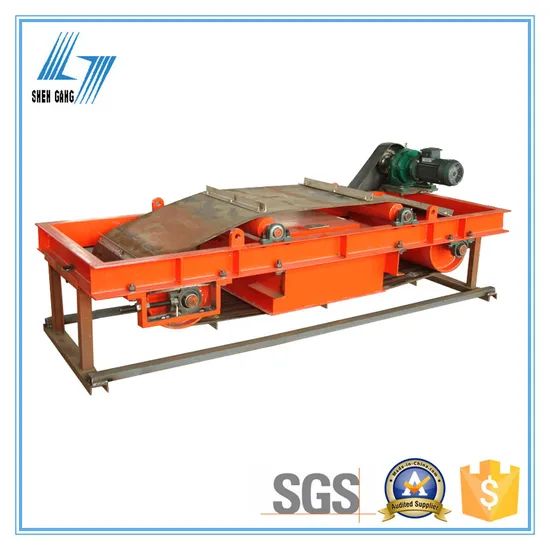

Self-Discharging Type Electric Magnetic Separator
Introduction:
RCDD series electric separator is used to clean metal tramp iron, such as nails, bolts, staples and metal debris, from non-magnetic metarials in conveyor system, to protect conveyor, crusher, hammer mill and other process equipment downstream from damage.
It is suspended crossly over the belt conveyor, with rectification control equipment to rectify AC into DC, supplying power for the coil to generate a suitable magnetic field, and capture ferrous impurities. Capture and discharge of magnetic impurities are operated by the control equipment, no need manual operation.
Features:
-Half sphere shaped magnetic field;
-Long-term working shift;
-Unload tramp iron into the tramp iron box;
-Moving conveyor for unloading
-There are electromagnetic type RCDD series and permagnent magnetic type RCYD type (made of ferrite magnet or rare earth magnet neodymium iron boron).
Application:
1) Remove tramp iron from thick material layers and larger particles of mineral ores, coal, coke and limestone for purification of product or ingredient
2) Protect processing equipment such as crushers, pulverizers, conveyors, belts, screens, etc.
3) Recovery of steel from steelworks slag.
Overall dimension drawing
Self-Discharge Magnetic Separator Application photo
FAQ for Self-Discharge Electric Magnetic Separator:
Introduction:
RCDD series electric separator is used to clean metal tramp iron, such as nails, bolts, staples and metal debris, from non-magnetic metarials in conveyor system, to protect conveyor, crusher, hammer mill and other process equipment downstream from damage.
It is suspended crossly over the belt conveyor, with rectification control equipment to rectify AC into DC, supplying power for the coil to generate a suitable magnetic field, and capture ferrous impurities. Capture and discharge of magnetic impurities are operated by the control equipment, no need manual operation.
Features:
-Half sphere shaped magnetic field;
-Long-term working shift;
-Unload tramp iron into the tramp iron box;
-Moving conveyor for unloading
-There are electromagnetic type RCDD series and permagnent magnetic type RCYD type (made of ferrite magnet or rare earth magnet neodymium iron boron).
Application:
1) Remove tramp iron from thick material layers and larger particles of mineral ores, coal, coke and limestone for purification of product or ingredient
2) Protect processing equipment such as crushers, pulverizers, conveyors, belts, screens, etc.
3) Recovery of steel from steelworks slag.
Overall dimension drawing
Self-Discharge Magnetic Separator Application photo
Magnetic Seprator Series:
--application for separating the magnetic material from non-magneic material in metallurgical ,mining,power,seaport,ceramic industry,etc.
FAQ for Self-Discharge Electric Magnetic Separator:
1.What is raw material on conveyor and how about material thickness?
2.The magnetic separator is hanging on the conveyor.So please inform us width and speed of the conveyor?
3.How about the handling capacity you require? and the separation material size?
4.Kindly tell us your power supply information.
Technical Data for Electric Magnetic Separator:
Technical Data for Electric Magnetic Separator:
| Model | Belt Width (mm) | Standard erection height(mm) | Rated voltage (V) | Cold power (kw) | Overall dimension(mm) | Unload trigger specification | Mass(kg) | Driving motor power(kw) | ||||||||
| A | B | C | D | E | F | G | H | I | ||||||||
| RCDD-5 | 500 | 160 | DC-110 | 1.03 | 2300 | 1330 | 1100 | 914 | 500 | 520 | 710 | 850 | 720 | 2.7 | 1074 | 1.5 |
| RCDD-6 | 650 | 170 | 1.4 | 2400 | 1400 | 1150 | 1068 | 650 | 520 | 860 | 928 | 720 | 2.7 | 1160 | 1.5 | |
| RCDD-8 | 800 | 250 | 2.6 | 2750 | 1600 | 1360 | 1270 | 800 | 580 | 1065 | 1100 | 782 | 2.7 | 1470 | 2.2 | |
| RCDD-10 | 1000 | 260 | 2.9 | 2900 | 1770 | 1465 | 1480 | 900 | 625 | 1165 | 1200 | 768 | 2.7 | 2000 | 2.2 | |
| RCDD-12 | 1200 | 310 | DC-220 | 4.2 | 3200 | 2000 | 1590 | 1680 | 1000 | 625 | 1375 | 1400 | 782 | 3.3 | 2700 | 2.2 |
| RCDD-14 | 1400 | 360 | 5.38 | 3460 | 2310 | 1680 | 1853 | 1200 | 673 | 1584 | 1650 | 886 | 3.3 | 4200 | 4 | |
| RCDD-16 | 1600 | 410 | 8.2 | 3800 | 2620 | 1850 | 1990 | 1400 | 725 | 1780 | 1920 | 945 | 4.1 | 6020 | 4 | |
| RCDD-18 | 1800 | 460 | 9.8 | 3850 | 2700 | 1950 | 2250 | 1600 | 675 | 1930 | 1900 | 1050 | 4.1 | 8260 | 4 | |
| RCDD-20 | 2000 | 510 | 11.6 | 4400 | 3000 | 2100 | 2420 | 1800 | 710 | 2087 | 2100 | 1072 | 6.8 | 10500 | 5.5 | |
| RCDD-22 | 2200 | 550 | 22.5 | 4600 | 3400 | 2250 | 3000 | 2000 | 850 | 2700 | 2100 | 1320 | 16 | 15500 | 5.5 | |
| RCDD-24 | 2400 | 570 | 25 | 4800 | 3200 | 2450 | 3200 | 2200 | 1000 | 3000 | 2300 | 1380 | 16 | 17500 | 7.5 | |
