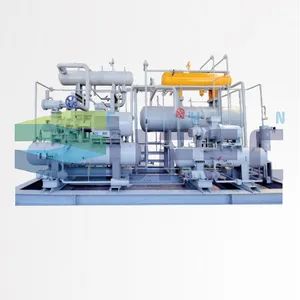

Semi Seal Refrigeration Compressor Unit CO2 System
Piece
Negotiable
Product information
High-quality Semi Seal Refrigeration Compressor Unit CO2 System supplied by Yantai Guangwei Food Cold-Chain Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
1000/Year
Power Source:
AC Power
Material:
Carbon Steel
Origin:
China
Transport Package:
Container
Drive Mode:
Electric
Trade Term:
FOB, EXW, CIF
Application:
Intermediate Back Pressure Type
Specifications
Production Capacity:
1000/Year
Power Source:
AC Power
Material:
Carbon Steel
Origin:
China
Transport Package:
Container
Drive Mode:
Electric
Trade Term:
FOB, EXW, CIF
Application:
Intermediate Back Pressure Type
Payment Term:
LC, T/T
Performance:
Low Noise
Lubrication Style:
Lubricated
Mute:
Not Mute
Port Of Loading:
Qingdao, Shanghai, Ningbo
Principle:
Rotary Compressor
Configuration:
Stationary
Trademark:
UFEC
Model NO.:
UHSC12T
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2022-02-26
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, EXW, CIF
Port Of Loading:
Qingdao, Shanghai, Ningbo
Certificates:
China Compulsory Certification, EC Examination Certificate, IOS9001, ISO 9001 Quality Management System Certification
Product descriptions from the supplier
CO2 Semi-hermetic Screw Refrigeration Compressor
A CO2 semi-hermetic screw compression unit is primarily applied in CO2 cascade systems and CO2 heat pumps, and finds broad application in food processing, cooling solutions, and energy recovery.outstanding performance :
A new generation of bilateral asymmetric screw rotor profile, polishing process, high efficiency, low noise.
Base on the design of the 3D cavity body and the flow channel, the flow resistance is small.
Special thrust bearing for compressor, high precision and long lifetime.
Crane mechanical seal, reliable and durable.
Intelligent control:
·Semi-hermetic structure,without vulnerable part like seal,can seal high pressure CO2 medium for a long time.
·Efficient oil and gas processor, exhaust oil content is not more than 5ppm.
Automatic control system , unmanned check-in.
Intelligent stepless automatic energy regulation.
Friendly man-machine communication interface, easily achieve personalized parameter settings.
The communication interface can easily realize the remote monitoring and data transmission.
| Model | Unit | UHSC12 | UHSC16 |
| Refrigerant | / | R744 | |
| Nominal working condition | ºC | 3 | |
| Max. refrigerating capacity | KW | 240 | 510 |
| Regular electric power | / | 3N/380V/50Hz or 3N/440V/60Hz | |
| Volume control mode | / | Frequency converter adjustment | |
| Working frequency | Hz | 25~70 | |
| Compressor rated power | KW | 70 | 135 |
| Oil pump rated power | KW | 1.5 | 2.2 |
| Refrigeration oil | / | 46#special mineral oil | |
| Addition amount of refrigerating oil | KG | 100 | 150 |
| Net weight | KG | ~3000 | ~4000 |
| Operating weight | KG | ~3200 | ~4300 |
| Cooling type of oil cooling&motor | / | Refrigerant thermal siphon | |
Screw Compressor Unit Other model parameters reference
|
Model
|
refrigerant
|
refrigeration capacity kW
|
Motor rated power kW
|
||||
|
High temperature condition
|
Middle temperature condition
|
Low temperature with economizer
|
temperature condition
|
Middle temperature condition
|
temperature with economizer
|
||
|
UA12M
|
R717
|
317
|
172
|
62
|
65
|
65
|
55
|
|
UA16S
|
470
|
257
|
95
|
90
|
90
|
75
|
|
|
UA16M
|
681
|
380
|
138
|
132
|
132
|
110
|
|
|
UA16L
|
805
|
441
|
161
|
160
|
160
|
132
|
|
|
UA20S
|
952
|
521
|
191
|
185
|
185
|
160
|
|
|
UA20M
|
1305
|
719
|
265
|
250
|
250
|
200
|
|
|
UA20L
|
1560
|
853
|
310
|
315
|
315
|
250
|
|
|
UA25S
|
2135
|
1175
|
437
|
400
|
400
|
315
|
|
|
UA25M
|
2695
|
1483
|
553
|
500
|
450
|
400
|
|
|
UA25L
|
3360
|
1850
|
690
|
630
|
560
|
500
|
|
|
Model
|
refrigerant
|
refrigeration capacity kW
|
Motor rated power kW
|
||||
|
|
|
High temperature condition
|
Middle temperature condition
|
Low temperature with economizer
|
High temperature condition
|
Middle temperature condition
|
temperature with economizer
|
|
UF12M
|
R507A
|
281
|
162
|
70
|
65
|
65
|
55
|
|
UF16S
|
425
|
244
|
107
|
90
|
90
|
75
|
|
|
UF16M
|
615
|
371
|
156
|
132
|
132
|
110
|
|
|
UF16L
|
726
|
420
|
182
|
160
|
160
|
132
|
|
|
UF20S
|
849
|
491
|
220
|
185
|
185
|
160
|
|
|
UF20M
|
1162
|
675
|
298
|
250
|
250
|
220
|
|
|
UF20L
|
1390
|
806
|
357
|
315
|
315
|
250
|
|
|
UF25S
|
1910
|
1107
|
500
|
400
|
400
|
355
|
|
|
UF25M
|
2421
|
1403
|
625
|
500
|
500
|
450
|
|
|
UF25L
|
3025
|
1755
|
780
|
600
|
600
|
560
|
|
Note: 1.Can provide other products in addition.
