Seven Relay Output GSM SMS Wireless Switch
1-49 Piece
$10050 Piece
$50Product information
High-quality Seven Relay Output GSM SMS Wireless Switch supplied by Shanghai Wafer Microelectronics Co., Ltd.. Bulk wholesale pricing ranges from $50 to $100 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Voltage:
12V
Production Capacity:
3000 PCS Per Month
Transmission Distance:
50-100m
Output Channel:
7 Channels
Output Rating:
7*220V/10A
Working Frequency:
850/900/1800/1900MHz
Specification:
CE
Power Supply:
DC12V
Specifications
Voltage:
12V
Production Capacity:
3000 PCS Per Month
Transmission Distance:
50-100m
Output Channel:
7 Channels
Output Rating:
7*220V/10A
Working Frequency:
850/900/1800/1900MHz
Specification:
CE
Power Supply:
DC12V
Trade Term:
FOB
Material:
Metal
Transport Package:
Paper Carton
Signal Transmission:
RF Remote Control
Origin:
Shanghai
Payment Term:
To be discussed
Universal:
Universal
Trademark:
WAFER
Box Type:
Water Proof Box
Type:
Wireless, GSM Controller
Model NO.:
gsm-relay
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
CE Certificate, FCC Certificates, trademark certificate
Product descriptions from the supplier
GSM-RELAY GSM wireless remote switch System ( SMS switch Control )
GSM remote control switch
Power input: DCAC/9-12V 2A
Working Frequency: 850/900/1800/1900MHz
GSM remote control switch
Power input: DCAC/9-12V 2A
Working Frequency: 850/900/1800/1900MHz

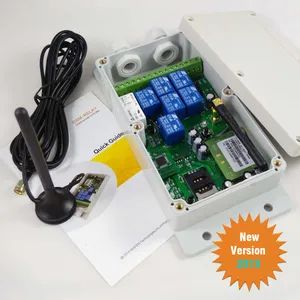

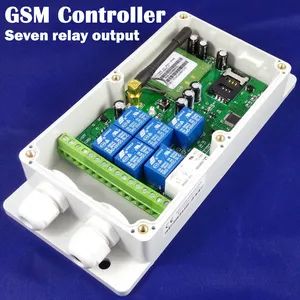

It has seven independent relay switches, and the NO.1 Relay switch is activated by calling its cell phone number, it will reject the call without answering and switch on the device connected to it,then there are no call costs incurred when dialling the unit, it will recognise an authorised telephone number calling it and reject the call without answering.
It has other 6 independent relay switches which can be switched on or off by sending the GSM-RELAY an sms text message.
GSM-RELAY app software on the mobile phone for android and iphone system
Specifications:
| Power input | AC/DC9-12V |
| Output Channel | 7 channels 250V 10A 50 Hz relay contacts |
| Small standby power | < 10mA 12V |
| Input channel | no input alarm |
| Operating temperature | -25 .. +60 °C |
| Box type | Water proof ABS box |
Relays operates almost every appliance
Relay memory after power failure
Optional password to keep the system at safety operating mode.
Remote Password change
Two operating mode optional ( remote setting with GSM phones)
One relay is woking with the phone calling, and others working with the SMS
Commands can added to GSM-phone number for raeady made commands

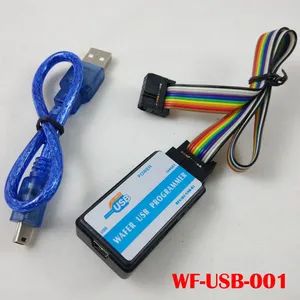

USB program adapter:
Applications:
Applications include the remote control of heating in holiday homes, lighting, engine pre-heaters, aviation engine heaters, irrigation systems, water well pumps, pumping stations, cabin heaters, resetting of remote servers, arming and disarming security systems, access control of gates and garage doors.
