Shanghai Swan Top Quality Reasonable Price 90 Extrusion Line Electric Wire Cable Making Machine
Set
Negotiable
Product information
High-quality Shanghai Swan Top Quality Reasonable Price 90 Extrusion Line Electric Wire Cable Making Machine supplied by SWAN Wire Engineering. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Central Height:
1000mm
Rotating Speed Of Screw:
10~90r/Min
Warranty:
12 Months
Production Capacity:
15set/Year
L/D Of Screw:
25:1
Max. Extrusion Output:
400kg/H(PVC)
Certification:
CCC, ISO, CE
Origin:
China
Specifications
Central Height:
1000mm
Rotating Speed Of Screw:
10~90r/Min
Warranty:
12 Months
Production Capacity:
15set/Year
L/D Of Screw:
25:1
Max. Extrusion Output:
400kg/H(PVC)
Certification:
CCC, ISO, CE
Origin:
China
Transport Package:
FCL. Film Wrapping
Trade Term:
FOB, CIF, CFR, EXW
Model NO.:
JC 90
Payment Term:
LC, T/T
Designed Speed:
Max 120m/Min(According to The Cable Size)
Condition:
New
Pay Off Bobbin Size:
PN 800~1250mm
Take Up Bobbin Size:
PN 800~1250mm
Trademark:
SWAN
Port Of Loading:
Shanghai Port
Screw:
Single-Screw
Diameter Of Cable Core:
Φ3.5~25mm
Outer Diameter Of Sheath:
Φ5.0~28mm
Screw Diameter:
φ90mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-08-12
Annual Revenue Amount:
Not specified
Numbers Of Employees:
8
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
ISO, OHSAS, Reach, ROHS, UL
Product descriptions from the supplier

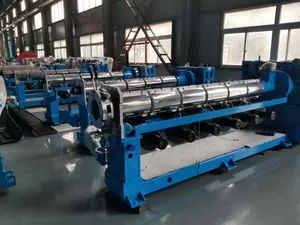

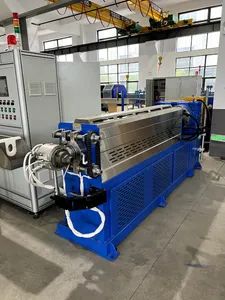

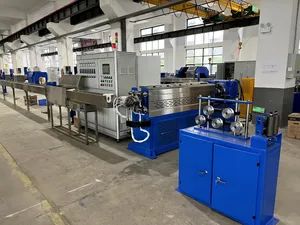

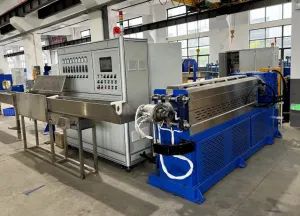

SWAN SJ-90×25 cable extrusion line
This equipment is primarily used to hot-extrude insulation and protective layers made of PVC, PE, XLPE, and other thermoplastic materials for wire and cable conductors.
Equipment composition and accessories can be customized according to customer needs
|
Equipment composition
|
|
| PN1250 cantilever type passive payoff | one set |
| Korea type straightener | one set |

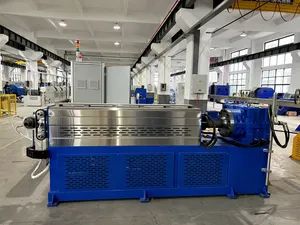

| SJ-90×25 extruder | one set |
| Cross head | one set |
| Drying and loading device | one set |
| Cooling stainless steel trough (sectional trough) | one set |
| Drying device | one set |
| WK-GX 20W laser jet | one set |
| Spark tester | one set |
| External diameter gauge | one set |
| Mechanical electron meter counter | one set |
| TQDV800 wheel type capstan | one set |
| PN1250 cantilevered take up and traverse | one set |
| Line synchronization electric control system | one set |
|
Main technical parameters
|
|
| Diameter of cable core | Φ3.5~25mm |
| Outer diameter of sheath | Φ5.0~28mm |
| Designed speed | max 120m/min (according to the size of cable) |
| Central height of equipment | 1000mm |
| Size of pay off reel | PN 800~1250mm |
| Size of take up reel | PN 800~1250mm |
| Diameter of screw | Φ90mm |
| L/D of screw | 25:1 |
| Rotating speed of screw | 10~90r/min |
| Max. extrusion output | 400 kg/h(PVC) |
| Voltage class | three-phase five-line, ~380V / 50Hz. |
SWAN INT'L, headquartered in Shanghai, produces and exports wire, cable, and associated manufacturing machinery; it also offers advisory support for international tender processes and sourcing solutions for industrial product supply chains.
The business has expanded globally, serving over 100 international clients across more than 20 regions including Germany, Italy, Brazil, Southeast Asia, Russia, Turkey, the Middle East, and Africa. In the wire and cable sector, the company offers comprehensive factory-level technological solutions for cable manufacturers, covering customized technical planning, equipment technology advisory, equipment selection, and advanced innovation. We deliver cable products and support OEM requirements.
Our machinery covers: complete production system for copper rod up-casting, tandem setup for CAT5/6/7 and coaxial cable production, standalone units for drawing, stranding, bunching, and extrusion. Our wire and cable offerings consist of: power cables, telecom cables, enameled copper (aluminum) wire, and other similar items.
The Chinese government's latest "Belt and Road" initiative opens a fresh opportunity for industrial manufacturing collaboration across international markets. Under this strategic framework, Shanghai SWAN INT'L warmly extends its invitation to build a sustainable, mutually advantageous partnership with you moving forward.
For extruders , pls inform :
1, Max. section
2, Conductor structure ( single or multi-core , pls inform wire number and single wire size )
3, What is the payoff bobbin size
4, What is take up bobbin size ( or you need auto coiling with film wrapping ) ;
5, If you need the online testing units ( Diameter ; pre-heating unit ; sparkle test) ;
6, If you need the printer ( ink or laser jet printer ) ;
7, For extruding capacity ( kgs/hour) , speed ( meters/minute ), what's requirement ?
8, Pls inform me your budget , we can recommend accordingly .
With above specific information ,we can provide quotation accordingly .Thanks .
