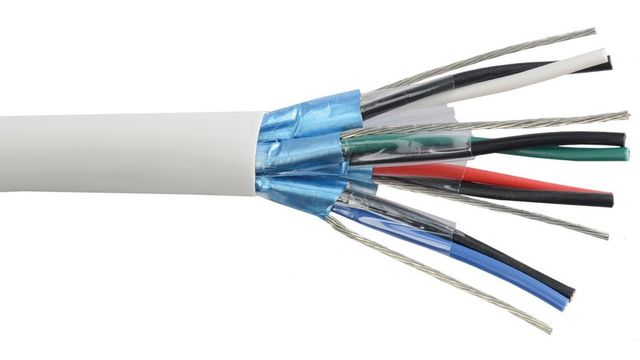

Shielded Cables, for Industrial, Packaging Type: Box Packaging Type Box Brand Electro Cables Usage/Application
1 Meter
$11Product information
High-quality Shielded Cables, for Industrial, Packaging Type: Box Packaging Type Box Brand Electro Cables Usage/Application supplied by Electro Cables Industries. Bulk wholesale pricing is $11 per Meter with a minimum order of 1 Meter. Inquiry for latest prices.
Test Voltage:
1000V r.m.s. Between conductors and screen / Armour
Conductor Resistance 7/0.53 Mm:
12.10 Ohm/km
Minimum Ambient Temperature:
15 C after installation and only when cable is in a fixed position
Minimum Insulation Resistance:
25 Mω/km
Maximum Mutual Capacitance:
250 Pf/m At 1 Khz For Adjacent Cores
Conductor Resistance 24/0.20 Mm:
26.0 Ohm/km
Maximum Working Voltage:
300/500V r.m.s
Conductor Resistance 16/0.20 Mm:
39.0 Ohm/km
Specifications
Test Voltage:
1000V r.m.s. Between conductors and screen / Armour
Conductor Resistance 7/0.53 Mm:
12.10 Ohm/km
Minimum Ambient Temperature:
15 C after installation and only when cable is in a fixed position
Minimum Insulation Resistance:
25 Mω/km
Maximum Mutual Capacitance:
250 Pf/m At 1 Khz For Adjacent Cores
Conductor Resistance 24/0.20 Mm:
26.0 Ohm/km
Maximum Working Voltage:
300/500V r.m.s
Conductor Resistance 16/0.20 Mm:
39.0 Ohm/km
Maximum Capacitance Unbalance:
450 Pf/metre At 1 Khz
Minimum Bending Radius Type 1:
5 Times Overall Diameter
Maximum Dc Resistance:
52 Ohm/km At 20° C
Minimum Bending Radius Type 2:
6 Times Overall Diameter
Packaging Type:
Box
Brand:
Electro Cables
Flame Spread Compliance:
Iec 332-1, Bsen 60332-1, Hd 405-1
Usage/Application:
Industrial
Aluminum Polyester Tape:
Metallic Side Down, In Contact With 0.5 Mm Tinned Copper Drain Wire
Armored Construction Types:
Multi-core Collectively Screened, Multipair Collectively Screened, Multipair Individual & Collectively Screened
Unarmored Construction Types:
Multi-core Collectively Screened, Multipair Collectively Screened, Multipair Individual & Collectively Screened
Conductor Size:
Multicore, Multipair
Individual Pair Screen:
Optional
Collective Screen:
Optional, Aluminum / Polyester Tape, Metallic Side Down, In Contact With 0.5 Mm Tinned Copper Drain Wire
Polyester Isolating Tape:
Optional, Numbered For Identification
Conductor Material:
Plain Annealed Copper Wire
Polyester Binder Tape:
Present
Sheath Type:
St1 Of Is 5831, Type Tm1 Or Type 6 Pvc Sheath To Bs 7655
Trade Term:
To be discussed
Payment Term:
To be discussed
Insulation Type:
Type A Of Is 5831, Type Ti 1 Pvc To Bs 7655, Polyethylene
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2011
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier
We offer Shielded & Instrumentation Cables, these cables ensure smooth communication of low level signals from electronic transmitters to the control room. We manufacture and export these products.
Construction Type 1 (Unarmoured) :
-
Plain annealed copper wire conductors to BS 6360
-
Insulation type A of IS 5831, Type Ti 1 PVC to BS 7655, Polyethylene
-
Individual pair screen (optional)
-
Aluminium / Polyester tape, metallic side down, in contact with 0.5 mm tinned copper drain wire
-
Polyester isolating tape (S) numbered for identification (optional).
-
Polyester binder tape
Construction Type 2 (Armoured) :
-
Plain annealed copper wire conductors to IS 8130, BS 6360
-
Type A of IS 5831, Type Ti 1 PVC to BS 7655
-
Individual pair screener (optional)
-
Aluminum / Polyester tape, metallic side down, in contact with 0.5 mm tinned copper drain wire
-
Polyester isolating tape (S) numbered for identification (optional).
-
Polyester binder tape
-
Collective screen (optional) – Aluminum / Polyester tape, metallic side down, in contact with 0.5 mm tinned copper drain wire
Details :
- Conductor Size-Multicore, Multipair and Maximum conductor d.c resistance: 52/km at 20° C
-
16/ 0.20 mm (0.5 mm) 39.0 Ω/ km
-
24/ 0.20 mm (0.75 mm) 26.0 Ω/ km
-
7/ 0.53mm (1.5 mm) 12.10 Ω/ km
-
Collective screen (optional) – Aluminum / Polyester tape, metallic side down, in contact with 0.5 mm tinned copper drain wire
-
ST1 of IS 5831, type TM1 PVC sheath to BS 7655
Type 1-Unarmored:
-
Multi-core Collectively screened
-
Multipair Collectively screened
-
Multipair, individual & Collectively screened
-
ST1 of IS 5831, type TM1 or type 6 PVC sheath to BS 7655
-
IS 3975, Single layer galvanized steel wire armour to IS 3975, BS EN 10257-11
-
ST1 of IS 5831, type TM1 PVC sheath to BS 7655
Type 2-Armoured :
-
Multi-core Collectively screened
-
Multipair Collectively screened
-
Multipair, individual & Collectively screened
- Maximum Capacitance Unbalance: 450 pF/metre 1 kHz
- Maximum mutual capacitance at 1 kHz: pair of adjacent cores- 250 pF/m at kHZ
- Spread of Flame: Type 1 & 2 comply with IEC 332-1, BSEN 60332-1, HD 405-1
- Minimum insulation resistance: individual conductors- 25 MΩ km
- Minimum bending radius: Type 1-5 x overall diameter Type 2-6 x overall diameter
