Si-Applications Plus Module 82400000016500 Control Techniques System Integration Modules
Piece
Negotiable
Product information
High-quality Si-Applications Plus Module 82400000016500 Control Techniques System Integration Modules supplied by China One-Tone Industrial Group Co., Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Volume:
0.01m3
Specification:
0.1KG
Model NO.:
82400000016500
HS Code:
85049090
Function:
Automatic Control
Trademark:
CT NIDEC
Transport Package:
Cartons/Wooden Box/Pallet
Signal:
Continuous
Specifications
Volume:
0.01m3
Specification:
0.1KG
Model NO.:
82400000016500
HS Code:
85049090
Function:
Automatic Control
Trademark:
CT NIDEC
Transport Package:
Cartons/Wooden Box/Pallet
Signal:
Continuous
Color:
Dark Brown
Trade Term:
FOB, CFR, CIF, DDP, CIP, CPT, FCA, EXW
Payment Term:
LC, T/T, Western Union, Small-amount payment, Money Gram
Mathematical Model:
Linear
Condition:
New
Customized:
Non-Customized
Communication Type:
Profibus
Certification:
RoHS, CCC, ISO: 9001, CE
Port Of Loading:
TIANJIN PORT
Origin:
UK
Application:
for M700 M701m702
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2010-04-02
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, CFR, CIF, DDP, CIP, CPT, FCA, EXW
Port Of Loading:
TIANJIN PORT
Product descriptions from the supplier
Control Techniques - 82400000016500 SYSTEM INTEGRATION MODULES - APPLICATIONS SI-APPLICATIONS PLUS FOR M700
Nidec Control Techniques SI-UNI-ENCODER
Encoder feedback module for Unidrive M600 - M700
The SI-Universal Encoder enables additional formats to be used that could not otherwise be supported by the single 15 pin connector. They also provide Closed loop Rotor Flux Control for induction motors (RFC-A).
UNIVERSAL SI ENCODER 82400000018100 Nidec Control Techniques M600 M700

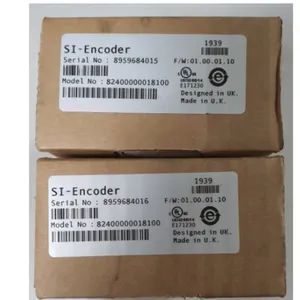

Control Techniques SI-Encoder Module
SI-Encoder has an incremental encoder input to provide Closed loop Rotor Flux Control for induction motors (RFC-A) on M600 and an additional encoder input on M700.
Features include: Supports AB quadrature encoders without marker pulse
The SI-Universal Encoder enables additional input and output formats to be used that could not otherwise be supported by the single 15 pin connector. They also provide closed loop rotor flux control for induction motors (RFC-A).
Support for:
SinCos with communications
SinCos with or without commutation
Quadrature incremental with or without commutation
Pulse and direction
SSI and EnDat
The module also provides a simulated encoder output that can be programmed to operate in the following modes
Quadrature incremental
Pulse and direction
SSI
The module also incorporates high speed inputs for position capture.
Drive compatibility
Unidrive M600
Unidrive M700
Digitax HD
Elevator Drive E300
Pump Drive F600
PROFIBUS-DP (Decentralized Peripheral) interface module enables follower connectivity. It is possible to use more than one SI-PROFIBUS or a combination of SI-PROFIBUS and other option modules to add additional functionality such as extended I/O, gateway functionality, or additional PLC features.CT SI-PROFIBUS Adapter for Unidrive M and Commander C
82400000017500 (SI-PROFIBUS)
Nidec Control Techniques PROFIBUS communications adapter for Unidrive M and Commander C size 2 and above.
The module is designed to be installed in the module slot located under the drive cover. It is not compatible with M100, M101 or frame size 1 drives.
Other Unidrive M modules are available.
Manufacturer part number is 82400000017500, SI-PROFIBUS.
Drive Compatibility
The compatibility table below highlights which Control Techniques drives support this option module
| Commander | Commander | Unidrive | Unidrive | Unidrive | Digitax |
| C200 | C300 | M400 | M600 | M700 | HD |
| √ | √ | √ | √ | √ | √ |
SI-PROFINET-V2 allows the drive to communicate and interface with PROFINET PLCs and networks.
Features include:
Dual 100 BASE-TX RJ45 connectors with support for shielded twisted pair, full-duplex 100 Mbps connectivity with auto crossover correction
Integrated switches allow for use of line networks i.e. daisy chaining
Both ports operate in full duplex mode as a network switch PROFINET Real-time class RT_Class_1 and conformance class A
Cycle times from 2 ms to 512 ms specified during configuration
Automatic device replacement using the LLDP and DCP protocols
LED indication of network port activity
Up to 64 cyclic I/O module slots (maximum of 32 in and 32 out) configured by network configuration tool and GSDML file Identification and maintenance functions I&M0 to I&M4 supported
