Sign Modules Screen Panels Outdoor Panel RGB P6, P8, P10 LED Display Module
1 Piece
$81 Piece
$12Product information
High-quality Sign Modules Screen Panels Outdoor Panel RGB P6, P8, P10 LED Display Module supplied by Shenzhen LED World Co., Limited. Bulk wholesale pricing ranges from $8 to $12 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
10000sqm Per Moth
Power:
15W
Outdoor:
1r1g1b
HS Code:
8528591090
1 LED Power:
<0.3W
Specification:
CE UL Rohs etc
LED Chips:
Epistar
Trade Term:
FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, FCA, EXW, Others
Specifications
Production Capacity:
10000sqm Per Moth
Power:
15W
Outdoor:
1r1g1b
HS Code:
8528591090
1 LED Power:
<0.3W
Specification:
CE UL Rohs etc
LED Chips:
Epistar
Trade Term:
FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, FCA, EXW, Others
Install:
Fixed
Good Waterproof Grade:
IP65
IP Rating:
IP65
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Trademark:
LED World, OEM, ODM
Model NO.:
LW-MO 6
Origin:
Made in China
At Any Dimention:
Permanent
Port Of Loading:
Shenzhen, Hongkong, Guangzhou
Waterproof:
Waterproof
Transport Package:
Wooden/Case Carton Box or as Required
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2009-05-18
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, FCA, EXW, Others
Port Of Loading:
Shenzhen, Hongkong, Guangzhou
Certificates:
CE, FC, ISO 14001, ISO 27001, ISO 9001, RoHS
Product descriptions from the supplier

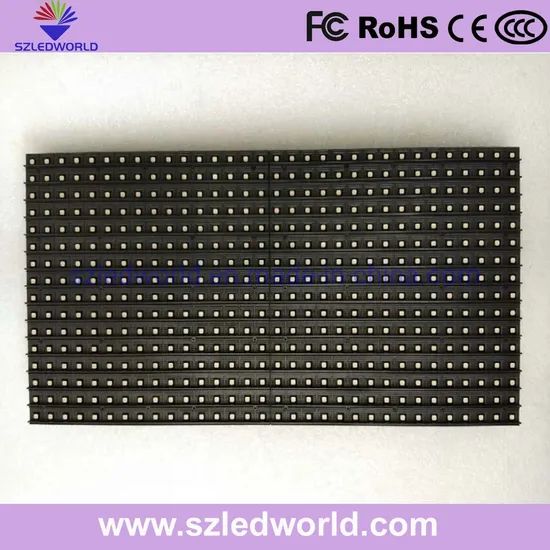

high-resolution module 8mm pixel pitch for advertising shopping mall
P8 led module features:
1. High-level durable material and IP65 to resist any terrible weather;
2. IP65 protection grade, enabling the tiles to work normally even in the rain;
3. High brightness, the highest brightness could reach 7000nits;
4. Adopting DIP technology that makes the LED display has a perfect waterproof and moisture-proof effect when it is working;
5. High definition with an outstanding image and video quality;
6. High brightness and be adjustable, meets the need of the changing requirement of customer in the environment;
P8 led module parameter:
Why choose us:
1. Fast locks and assembling pins, flatness and seamless are greatly increased, less than 0.01mm, easy to install and dismantle.Seamless connection, less than 0.1mm between 2 cabinets;
2. We have a professional sales engineer TEAM, which can offer you project solutions and also help to solve problems at once.
3. Our quality control throughout every process from materials-production- test-package-delivery(led lamp, module.
4. Viewing angle, wavelength, and other optical properties; aging test LED lamps attenuation; an IC testing stand, strict control of the quality of the IC ;
5. Quality guarantee: CE, RoHS, FCC, IP65, ISO9001 + 100% testing before shipping;
Product detail:
Workshop:
Our company:
Shenzhen LED World Optoelectronics Limited is the top professional LED Display manufacturer, and has about 9 years of experience in the LED screen industry, more than 9000sqm workshop, 400 workers, an automatic production line, strong R&D team. Our products have passed RoHS, 3C, FCC, and CE quality authentication.
Customer satisfaction is our prime objective and our high-quality LED video display screen used in more than 140 countries and wins a high reputation.
Shenzhen LED World co.,ltd consistent source of strength for the customer is the company's growth and expansion, the company has the perfect pre-sale tracking service system and truly customer-centric marketing module.
Certification:
Package:
FQA:
1. What pitch? What resolution? What size?
Resolution refers to the number of LED pixels;
2. Are you the manufacturer or trading company? And where is your factory?
We are a professional manufacturer of Led outdoor, Led indoor display, rental display,
stadium screen, stage screen, and advertising screen.
Our company is located in Shenzhen Guangdong China, which enjoys the transportation and good
reputation among our domestic and overseas customers for more than 5 years.
3. One thing that's important, what are the controllers used with your display?
It depends on Whether your screen is fixed or mobile ;
4. Are you a factory? and your warranty?
yes, we are 7 years factory, 2 years warranty and lifetime maintenance ;
5. What is LED?
LED is sanded for Light Emitting Diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor. This is used for household appliances, remote controller, electric bulletin board, various kinds of automation appliances."
P8 led module features:
1. High-level durable material and IP65 to resist any terrible weather;
2. IP65 protection grade, enabling the tiles to work normally even in the rain;
3. High brightness, the highest brightness could reach 7000nits;
4. Adopting DIP technology that makes the LED display has a perfect waterproof and moisture-proof effect when it is working;
5. High definition with an outstanding image and video quality;
6. High brightness and be adjustable, meets the need of the changing requirement of customer in the environment;
P8 led module parameter:
| Items | P6mm | P8mm | P10mm |
| Pixel | 1R1G1B | 1R1G1B | 1R1G1B |
| Configuration | SMD3535 | SMD3535 | SMD3535 |
| Pixel Pitch | 6mm | 8mm | 10mm |
| Pixel Density | 27,777 | 15,625 | 10,000 |
| Module Size(mm) | 192x192 or 192x96 | 256x128 | 320x160 |
| Pixels/Module | 32x16 or 32x32 | 32x16 | 32x16 |
| Cabinet Size(mm) | 960x960 | 1024x1024 | 960x960 |
| Pixels/Cabinet | 160x160 | 128x128 | 96x96 |
| Cabinet Weight | 36KG | 41KG | 36KG |
| Brightness | >5000cd/m2 | >5000cd/m2 | >6000cd/m2 |
| Viewing Distance | >6m | >8m | >10m |
| Power | Max: 1300 | Max: 1000 | Max: 1000 |
| Consumption(W/m2) | Ave: 260 | Ave: 260 | Ave: 300 |
| Driver Mode | 1/4 scan or 1/8 | 1/4 scan or 1/8 | 1/2 scan |
| Viewing Angle | H: 120°; V: 120° | ||
| Cabinet Material | Cold Rolled Steel or aluminum | ||
| Refresh Rate | 300-3000HZ adjustable | ||
| LED Life | 100,000 hours | ||
| Supply Voltage | AC220V/50HZ; AC110V/60HZ | ||
| Operating Temperature | -20ºC ~ +50ºC | ||
| Operating Humidity | 10% - 90% | ||
| Gray Scale | Red, Green and Blue each 16K | ||
| Display Color | 4096 Billion | ||
| IP Rating | Front IP65 | ||
| Display Capability | Text, Graph and Video | ||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |||
Why choose us:
1. Fast locks and assembling pins, flatness and seamless are greatly increased, less than 0.01mm, easy to install and dismantle.Seamless connection, less than 0.1mm between 2 cabinets;
2. We have a professional sales engineer TEAM, which can offer you project solutions and also help to solve problems at once.
3. Our quality control throughout every process from materials-production- test-package-delivery(led lamp, module.
4. Viewing angle, wavelength, and other optical properties; aging test LED lamps attenuation; an IC testing stand, strict control of the quality of the IC ;
5. Quality guarantee: CE, RoHS, FCC, IP65, ISO9001 + 100% testing before shipping;
Product detail:
Workshop:
Our company:
Shenzhen LED World Optoelectronics Limited is the top professional LED Display manufacturer, and has about 9 years of experience in the LED screen industry, more than 9000sqm workshop, 400 workers, an automatic production line, strong R&D team. Our products have passed RoHS, 3C, FCC, and CE quality authentication.
Customer satisfaction is our prime objective and our high-quality LED video display screen used in more than 140 countries and wins a high reputation.
Shenzhen LED World co.,ltd consistent source of strength for the customer is the company's growth and expansion, the company has the perfect pre-sale tracking service system and truly customer-centric marketing module.
Certification:
Package:
FQA:
1. What pitch? What resolution? What size?
Resolution refers to the number of LED pixels;
2. Are you the manufacturer or trading company? And where is your factory?
We are a professional manufacturer of Led outdoor, Led indoor display, rental display,
stadium screen, stage screen, and advertising screen.
Our company is located in Shenzhen Guangdong China, which enjoys the transportation and good
reputation among our domestic and overseas customers for more than 5 years.
3. One thing that's important, what are the controllers used with your display?
It depends on Whether your screen is fixed or mobile ;
4. Are you a factory? and your warranty?
yes, we are 7 years factory, 2 years warranty and lifetime maintenance ;
5. What is LED?
LED is sanded for Light Emitting Diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor. This is used for household appliances, remote controller, electric bulletin board, various kinds of automation appliances."
