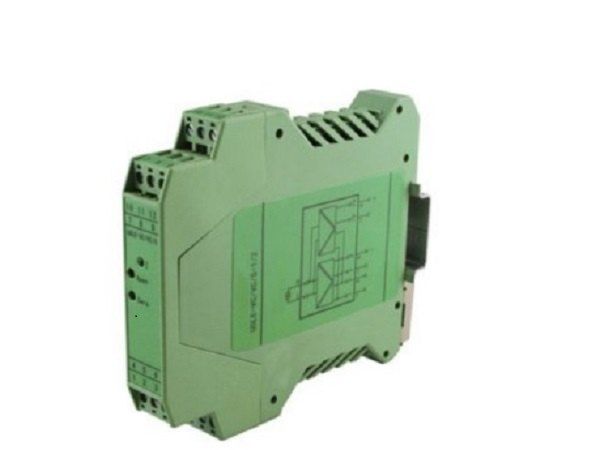

Signal Computation Module Accuracy ±0.1% Output_logic Square Root Input_types Linear - Ma, Mv, V Opto_isolation_voltage 1500 V
Negotiable
Product information
High-quality Signal Computation Module Accuracy ±0.1% Output_logic Square Root Input_types Linear - Ma, Mv, V Opto_isolation_voltage 1500 V supplied by Pantech Instruments. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Opto Isolation Voltage:
1500 V Dc
Power Supply:
230 V Ac, 110 V Ac, 90-270 V Ac/dc, 24 V Dc
Power Supply Options:
24 V Dc - Or As Required
Output Impedance:
800 Ohms For 4-20 Ma Dc Outputs
Enclosure Material:
Abs Plastic, Metal Sheet Weatherproof, Ip 65, Flameproof
Mounting Options:
Din Rail, Panel, Field, Wall
Rugged Design:
Highly Rugged & Time Proven Design
Input Types:
Linear - Ma, Mv, V
Specifications
Opto Isolation Voltage:
1500 V Dc
Power Supply:
230 V Ac, 110 V Ac, 90-270 V Ac/dc, 24 V Dc
Power Supply Options:
24 V Dc - Or As Required
Output Impedance:
800 Ohms For 4-20 Ma Dc Outputs
Enclosure Material:
Abs Plastic, Metal Sheet Weatherproof, Ip 65, Flameproof
Mounting Options:
Din Rail, Panel, Field, Wall
Rugged Design:
Highly Rugged & Time Proven Design
Input Types:
Linear - Ma, Mv, V
Display Option:
Optional (range Configurable)
Output Type:
Single Output Of 4-20 Ma Dc / Other Linears
Output Logic:
Square Root
Trade Term:
To be discussed
Payment Term:
To be discussed
Accuracy:
±0.1%
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2007
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier
Signal Computation Module - Sq.Root
· Highly Rugged & Time Proven Design
· Opto & Galvanic Isolation @ 1500 V DC
· Supplying since 30+ years in field
Make | Pantech Instruments |
Model nos. | 836 |
Inputs | Predefined |
| Linear - mA, mV, V |
Display | Optional ( Range configurable ) |
TPS | 24 V DC - or as required |
Output | Single ouptut of 4-20 mA DC / Other linears |
O/P Logic | Square root |
Output imp. | 800 ohms for 4-20 mA DC outputs |
Accuracy | +/- 0.1% |
P.S. | 230 V AC, 110 V AC, 90-270 V AC/ DC, 24 V DC |
Enclosure etc | ABS Plastic, Metal sheet Weatherproof, IP 65, Flameproof
|
Mounting | Din rail, Panel, Field, Wall |
|
|
Note | Contact Factory for exact quotation and prices |
| Customizations/Specials can be developed wrt above |
| Please download our detailed spec. sheet for more
|
