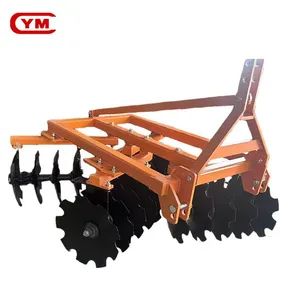

Simple Structure, Convenient and Durable Agricultural Machinery Disc Harrow
1-4 Piece
$877.55 Piece
$835.7Product information
High-quality Simple Structure, Convenient and Durable Agricultural Machinery Disc Harrow supplied by Yucheng Yijia Machinery Co., Ltd.. Bulk wholesale pricing ranges from $835.7 to $877.5 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
10000pieces/Year
Model NO.:
1BQDX-2.8
Warranty:
1year
Working Width(Mm):
2800
No.Of Disc(PC):
32
Dia.Of Disc:
460
Weight(Kg):
600
HS Code:
8432210000
Specifications
Production Capacity:
10000pieces/Year
Model NO.:
1BQDX-2.8
Warranty:
1year
Working Width(Mm):
2800
No.Of Disc(PC):
32
Dia.Of Disc:
460
Weight(Kg):
600
HS Code:
8432210000
Application Field:
Agriculture
Operation:
Arable Machinery, Continuous Running Operation
Certification:
CE
Origin:
Dezhou
Farming Policy:
Dry Cultivating Machinery
Trade Term:
FOB, CIF, CFR, EXW
Color:
Green
Arbor Configuration:
Horizontal Axis
Transport Package:
Iron Box
Port Of Loading:
Qingdao Port
Payment Term:
T/T, LC, D/P
Traction Type:
Traction
Power Source:
Tractor
Drive Type:
Tractor Drive
Trademark:
YCM
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2003-07-23
Annual Revenue Amount:
Not specified
Numbers Of Employees:
128
Preferred Payment Term:
T/T, LC, D/P
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao Port
Certificates:
ISO9001:2015
Product descriptions from the supplier
DISC HARROW
1BQDX SERIES ARE USED FOR CRUSHING CLODS AFTER TILLAGE, PREPARING SOIL BEFORE SEEDING, LOOSENING THE SOIL, COMBINING THE SOIL AND FERTILIZER,AND CLEANING AWAY STUBBLE OF PLANTS IN LIGHT SOIL FIELD.WITH REASONABLE STRUCTURE, STRONG ABILITY TO RAKE,DURABLE, EASY TO USE .
Specification
Applications
Agriculture
1BQDX SERIES ARE USED FOR CRUSHING CLODS AFTER TILLAGE, PREPARING SOIL BEFORE SEEDING, LOOSENING THE SOIL, COMBINING THE SOIL AND FERTILIZER,AND CLEANING AWAY STUBBLE OF PLANTS IN LIGHT SOIL FIELD.
1BQDX SERIES ARE USED FOR CRUSHING CLODS AFTER TILLAGE, PREPARING SOIL BEFORE SEEDING, LOOSENING THE SOIL, COMBINING THE SOIL AND FERTILIZER,AND CLEANING AWAY STUBBLE OF PLANTS IN LIGHT SOIL FIELD.
Key Configurations:
Efficient soil crushing and leveling: Adopting opposed disc arrangement, each set of discs rotates in the opposite direction, which can crush the large soil pieces after plowing and rake the surface soil fine, and at the same time level the ground surface to create a good seed bed for sowing, and the soil crushing rate can reach more than 85%. Flexible angle adjustment: the disc deflection angle can be adjusted within 3-15 degrees through the adjusting mechanism to adapt to different soil textures (such as sandy soil, loamy soil) and operational requirements, and when the deflection angle increases, the depth of the soil and the effect of soil crushing will be enhanced. Light structure design: the machine is light in weight (usually 200-500kg), with low matching power demand (15-40 horsepower tractor), suitable for small plots, hilly and mountainous areas, flexible in turning, and convenient in operation. Strong durability: the discs are made of 65Mn spring steel, 4-6mm thick, with heat-treated edges for good wear resistance.
Technical Specifications
(Custom configurations available upon request.)
Model | 1BQDX-1.3 | 1BQDX-1.6 | 1BQDX-2.0 |
Working width(mm) | 1300 | 1600 | 2000 |
depth(mm) | 100-140 | 100-140 | 100-140 |
No.of disc(pc) | 16 | 20 | 24 |
Weight | 300 | 340 | 400 |
Linkage | three point mounted | three point mounted | three point mounted |
Matched power(hp) | 30-35 | 35-45 | 50-60 |
After Sales Service
One-year warranty for the entire machine
Company Profile
YUCHENG YIJIA MACHINERY CO.,LTD.
Yucheng Yijia Machinery Co., Ltd. was founded in 1958 and underwent a private restructuring in 2003 The company has always adhered to the corporate philosophy of seeking innovation in technology and seeking development through innovation. It has now developed into a private joint-stock enterprise integrating agricultural machinery development and design, production and manufacturing, domestic and international sales, and network technology operation.
Why Choose Us?
Other Products
OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Rotary Tiller
DISC TILLER
Mower
Disc Ridger
SUBSOILER
DISC TILLER
Mower
Disc Ridger
SUBSOILER
Exhibition hall and workshop
HONOR
The main production process of the rake blades
circle cutting
processing blade holes
heat treatment
They are divided into inner blades and outer blades according to customer requirements, and some flat discs are double-sided blades.They are also divided into single blades and double blades according to the number of cutting edges.
three heat treatment lines
Greater possibility to shorten the delivery time
Greater possibility to shorten the delivery time
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.
A: Standard models ship in 15–30 days; customized units require 30–45 days.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.
A: Yes, we have partnered service centers in key regions.
Q: Can I request custom product sizes?
A: Absolutely! We offer tailored attachments.
A: Absolutely! We offer tailored attachments.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
A: Contact us via email/phone for a quote, then confirm with a PO.
