Single Axis Aluminium Copy Router Machine for Aluminum Windows Machinery
1-2 Piece
$9933 Piece
$893Product information
High-quality Single Axis Aluminium Copy Router Machine for Aluminum Windows Machinery supplied by Jinan Ranling Intelligent Equipment Technology Co., Ltd.. Bulk wholesale pricing ranges from $893 to $993 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Working Air Pressure:
0.4~0.6MPa
Input Power:
1.5kw
Production Capacity:
100%
Machine Weight:
200kg
Specification:
2500*800*1500mm
Copying Range:
290*90
Air Consumption:
30L/Min
Voltage:
440V
Specifications
Working Air Pressure:
0.4~0.6MPa
Input Power:
1.5kw
Production Capacity:
100%
Machine Weight:
200kg
Specification:
2500*800*1500mm
Copying Range:
290*90
Air Consumption:
30L/Min
Voltage:
440V
HS Code:
8461500090
Automatic Grade:
Automatic
Certification:
CE
CNC Or Not:
CNC
Milling Tool Diameter:
D=8mm
Trade Term:
FOB, CIF, CFR
Payment Term:
LC, T/T
Condition:
New
Port Of Loading:
Qingdao Port
Trademark:
Ranling
Origin:
Shandong
Transport Package:
Wooden Box
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-09-23
Annual Revenue Amount:
Not specified
Numbers Of Employees:
40
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Qingdao Port
Certificates:
Others
Product descriptions from the supplier

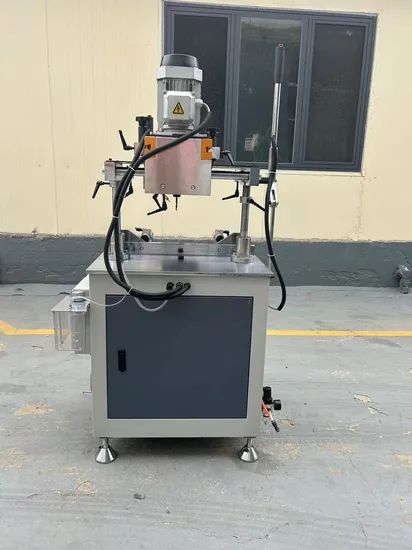

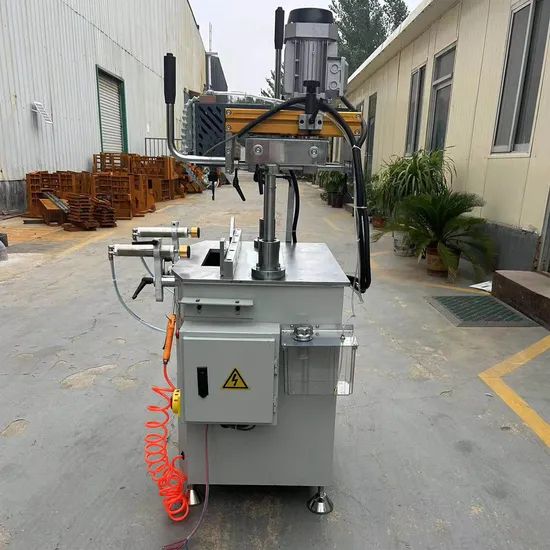

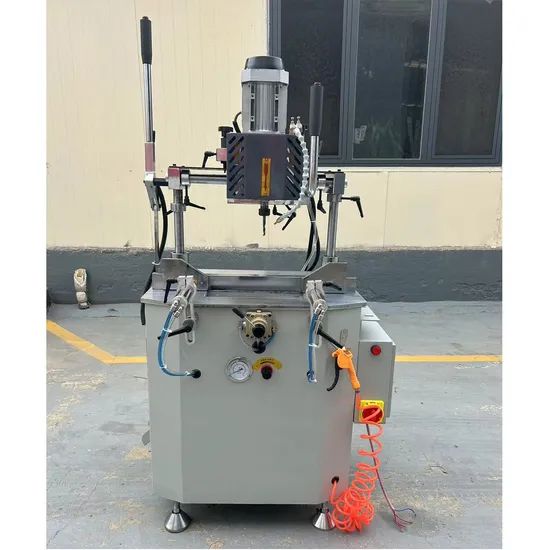

LFX-300X100 single-axis copy milling machine is used to process various types of holes, grooves, water outlets, etc. of aluminum and plastic profile doors and windows. The machine has a compact structure and small size, and the profile
clamping adopts pneumatic transmission. The mold adjustment and replacement are simple, the application range is wide, the efficiency is high, and continuous processing can be achieved. The operation is simple and safe.

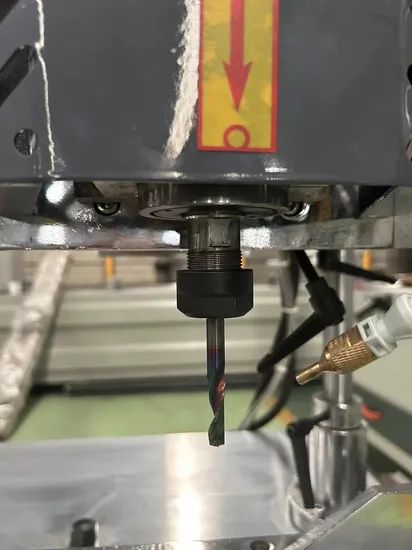

Milling head
The motor drives the milling head to rotate through the annular belt, and after
clamping the parts, enabling continuous processing.
The motor drives the milling head to rotate through the annular belt, and after
clamping the parts, enabling continuous processing.
Spray system (for aluminum profile processing)
In order to improve the roughness of parts and extend the life of tools, a spray cooling device is provided. In order to ensure that milling is always carried out under the condition of spray cooling, the motor switch is interlocked with this switch
In order to improve the roughness of parts and extend the life of tools, a spray cooling device is provided. In order to ensure that milling is always carried out under the condition of spray cooling, the motor switch is interlocked with this switch
Positioning structure
The extension length of the positioning screw can be adjusted to ensure the cutting depth of the feed.
The extension length of the positioning screw can be adjusted to ensure the cutting depth of the feed.

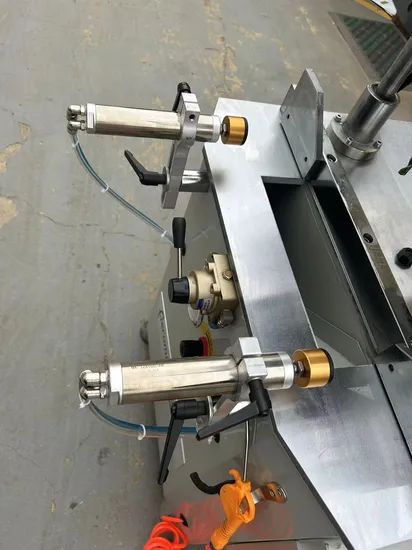

Clamping device
There are two cylinders for adding parts to ensure stable and reliable
operation
There are two cylinders for adding parts to ensure stable and reliable
operation
Two-stage contoured contact rod
The diameter of the two-stage profiling contact rod is the same as the diameter of the milling cutter (the contact rod is adjusted according to the diameter of the milling cutter), so the profiling milling process can be performed in a 1:1 relationship to ensure that the shape of the milled part is consistent with the shape of the hole in the profiling plate.
The diameter of the two-stage profiling contact rod is the same as the diameter of the milling cutter (the contact rod is adjusted according to the diameter of the milling cutter), so the profiling milling process can be performed in a 1:1 relationship to ensure that the shape of the milled part is consistent with the shape of the hole in the profiling plate.
| Model | LFX-300×100 |
| Input voltage | 440V / 60Hz |
| Input power | 1.5Kw |
| Working air pressure | 0.4~0.6Mpa |
| Air consumption | 30L/min |
| Copying range | 90x290mm |
| Milling tool diameter | Φ8mm |
| Overall size | 2500x800x1500mm |
| Machine weight | 200kg |
Founded in 2011, Ranling Intelligent Equipment Technology Co., Ltd is a manufacturer specializing in the research development and production of CNC Aluminum profile making machines for windows and doors curtain wall such as double saw machines, heavy-duty angle machines, hinge drilling machines etc. After years of development, Ranling has developed into a modern high-tech enterprise of laser cutting machine, including fiber laser cutting machines for metal sheet pipe and laser welding/cleaning/cutting machines.Our factory is located in Jinan city, Shandong Province of China. All the products are certificated by CE and comply with international quality standards and are greatly appreciated in a variety of different markets at home and at abroad.
1.Are you manufacturer?
Yes,we are the professional manufacturer with more than 16 years experience in this area.
2. What's the delivery time for the machines?
Normal machines our delivery time is 20 days after getting deposit, customized machines should confirm with our sales persons.
3. How about the after-sale service ?
1).reply it at once when machines break down, it reply it within 12 hour
2) if clients need , we can appoint engineers to help install the machines and train the workers
4.What's the guarantee time ?
1).All machines guarantee time is one year, not including wearing parts.
2) If machines parts broken, we will give for free, but clients should afford courier fees.
3).24 hours on line service each day, free technical support.
5. Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.Also
support online training.
6. What is the payment terms ? Any payment method you want,such as T/T, L/C and so on.
