Single Column Deep Drawing Punching Hydraulic Press
1 Piece
$4,5001 Piece
$15,000Product information
High-quality Single Column Deep Drawing Punching Hydraulic Press supplied by Suzhou Hycules Machinery Co., Ltd. Bulk wholesale pricing ranges from $4,500 to $15,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
10 Set/Month
After Sales Service:
2-Year
HS Code:
8462299000
Type:
C Type Hydraulic Press
Origin:
China
Transport Package:
Cover with Plastic Film
Customized:
Customized
Trade Term:
FOB, CIF, CFR, EXW
Specifications
Production Capacity:
10 Set/Month
After Sales Service:
2-Year
HS Code:
8462299000
Type:
C Type Hydraulic Press
Origin:
China
Transport Package:
Cover with Plastic Film
Customized:
Customized
Trade Term:
FOB, CIF, CFR, EXW
Advantage:
High Efficiceny
Trademark:
Hycules
Keyword:
Hydryalic Press
Place Of Origin:
Jiangsu, China
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Condition:
New
Port Of Loading:
Shanghai Port
Machine Type:
Single Column Hydraulic Press
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2022-11-22
Annual Revenue Amount:
Not specified
Numbers Of Employees:
3
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
ATTESTATION CERTIFICATE OF MACHINERY DIRECTIVE, CERTIFICATE, CERTIFICATE OF COMPLIANCE, QUALITY MANAGEMENT SYSTEM CERTIFICATE
Product descriptions from the supplier
Product Feature

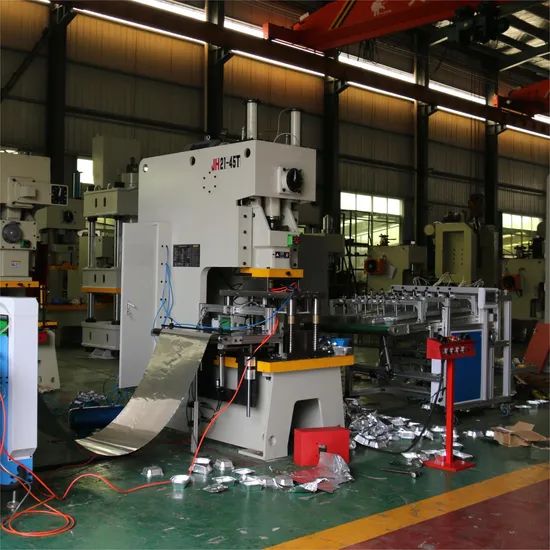

Hycules Single-Column Hydraulic Press Machine
Single-Column Hydraulic Press Machine adopted Japanese technology wet clutch, featuring stable working performance, high production efficiency, low noise, and less maintenance cost. Equipped with Japan SHOwA hydraulic overload protection pump ensuring longer service life. It's the most practical and mature small-size press machine in the stamping field in recent years. Highly recommended for the production of metal pieces
·We have designed the Single-Column Hydraulic Press with different power ranges, from 25 to 400 tonnes.
·Specifically designed to perform work involving deep drawing, stamping,die-cutting, forming, etc.
·The latest generation series of hydraulic presses now feature a wide range of uses including the possibility of incorporating these machines in automatic production lines.
Single-Column Hydraulic Press Machine adopted Japanese technology wet clutch, featuring stable working performance, high production efficiency, low noise, and less maintenance cost. Equipped with Japan SHOwA hydraulic overload protection pump ensuring longer service life. It's the most practical and mature small-size press machine in the stamping field in recent years. Highly recommended for the production of metal pieces
·We have designed the Single-Column Hydraulic Press with different power ranges, from 25 to 400 tonnes.
·Specifically designed to perform work involving deep drawing, stamping,die-cutting, forming, etc.
·The latest generation series of hydraulic presses now feature a wide range of uses including the possibility of incorporating these machines in automatic production lines.
Details Images
Applications
·Auto parts: automobile body covering parts, braking, fuel tanks, chassis, axle case, bumper
·Household appliances: washing machine, Tv, refrigerator, air conditioning, rice cooker, and other parts
·Kitchenware: sink, tea set, and Other kinds of containers.
·Auto parts: automobile body covering parts, braking, fuel tanks, chassis, axle case, bumper
·Household appliances: washing machine, Tv, refrigerator, air conditioning, rice cooker, and other parts
·Kitchenware: sink, tea set, and Other kinds of containers.
Stress Analysis & Finite Element Analysis
The CAE software SOLIDWORKS is used as the method to analyze the linear static construction, stress, and deformation for press break and laser cutting machine frames. So for complicated structures, highly complex loadings, transient modeling, and a combination of the above, FEA makes sense.
The CAE software SOLIDWORKS is used as the method to analyze the linear static construction, stress, and deformation for press break and laser cutting machine frames. So for complicated structures, highly complex loadings, transient modeling, and a combination of the above, FEA makes sense.
Features
·Steel welded body, tempering treatment or VSR(Vibratory Stress Relief), high rigidity, accuracy and stability.

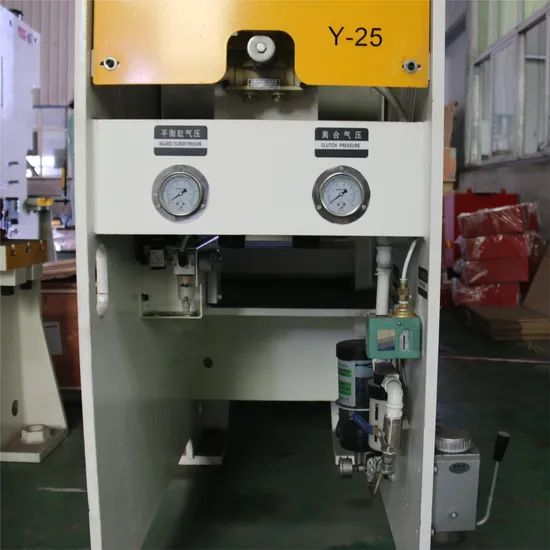

·Pneumatic dual balance cylinders, which balance the slide and punch weight to reduce noise and impact.
·The crankshaft undergoes grinding treatment after high-frequency quenching.
·Lengthened six-face rectangle guide with a surface of bronze plate.
·Vertical located crankshaft, compact structure.
·PLC control and imported safety duplex valve.
·Wet type combined multi discs friction clutch and brake.
·Hydraulic overload protected.
·Steel welded body, tempering treatment or VSR(Vibratory Stress Relief), high rigidity, accuracy and stability.
·Pneumatic dual balance cylinders, which balance the slide and punch weight to reduce noise and impact.
·The crankshaft undergoes grinding treatment after high-frequency quenching.
·Lengthened six-face rectangle guide with a surface of bronze plate.
·Vertical located crankshaft, compact structure.
·PLC control and imported safety duplex valve.
·Wet type combined multi discs friction clutch and brake.
·Hydraulic overload protected.

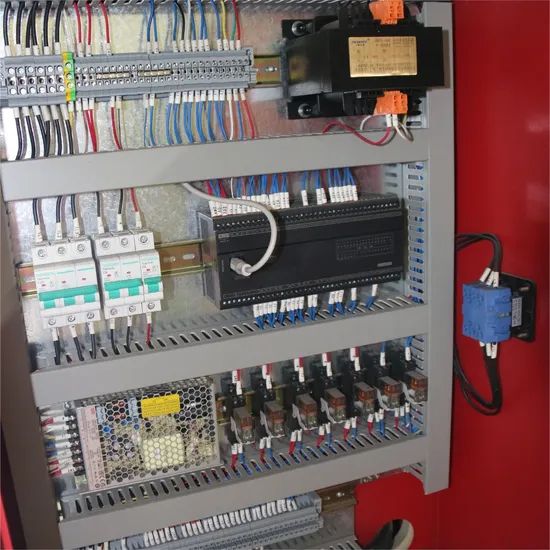

Electric Installation And Safety
The control panel features a switch enabling the user to select the desired type of work in a manual, semi-automatic, or automatic position and a switch to select either the fast speed or slow speed.
Electrical and hydraulic maneuvers are redundant and self-controlled.
They incorporate an additional safety block and self-control devices for maneuver and safety.

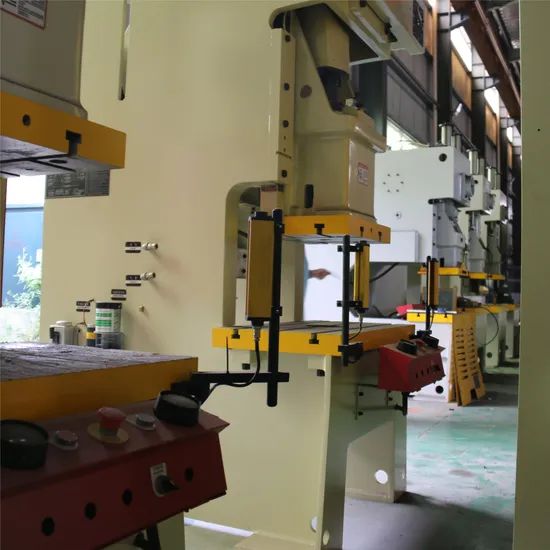

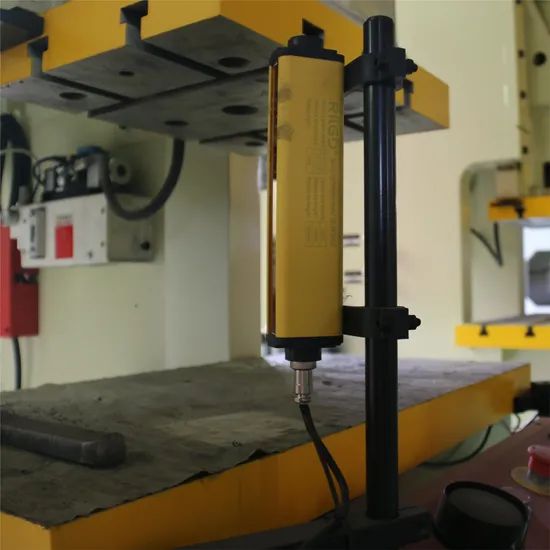

It includes the verification and certification of the correct operation and the safety distance for the photocells.
The control panel features a switch enabling the user to select the desired type of work in a manual, semi-automatic, or automatic position and a switch to select either the fast speed or slow speed.
Electrical and hydraulic maneuvers are redundant and self-controlled.
They incorporate an additional safety block and self-control devices for maneuver and safety.
It includes the verification and certification of the correct operation and the safety distance for the photocells.
Product Parameters
| Specifications | Unit | JH21-25 | JH21-45 | JH21-60 | JH21-80 | JH21-100 | JH21-125 | JH21-160 | JH21-200 | JH21-250 | JH21-315 | JH21-400 |
| Nominal Capacity | KN | 250 | 450 | 600 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 |
| Nominal | mm | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 6 | 6 | 7 | 8 |
| Slide Stroke | mm | 80 | 120 | 140 | 160 | 160 | 180 | 200 | 220 | 220 | 220 | 250 |
| Slide Strokes Per Minute(Fixed) | Times/min | 100 | 80 | 70 | 60 | 55 | 50 | 45 | 45 | 30 | 30 | 30 |
| Slide Strokes Per Minute(Variable) | Times/min | 60-120 | 50-95 | 45-85 | 40-75 | 35-65 | 35-65 | 30-55 | 30-55 | 20-35 | 20-35 | 20-35 |
| Maximum Die Set Height | mm | 250 | 270 | 300 | 320 | 335 | 350 | 400 | 450 | 500 | 500 | 550 |
| Die Height Adjustment | mm | 50 | 60 | 70 | 80 | 90 | 90 | 100 | 110 | 120 | 120 | 120 |
| Throat Depth | mm | 210 | 225 | 270 | 310 | 330 | 350 | 400 | 430 | 450 | 450 | 490 |
| Distance Between Uprights | mm | 450 | 515 | 560 | 610 | 670 | 670 | 736 | 910 | 980 | 980 | 1050 |
| Slide Bottom Size(LxR) | mm | 360 | 410 | 480 | 540 | 620 | 620 | 700 | 880 | 950 | 950 | 1020 |
| Slide Bottom Size(FxB) | mm | 250 | 340 | 400 | 460 | 520 | 520 | 580 | 650 | 700 | 700 | 750 |
| Shank Hole Size(Dia) | mm | 40 | 50 | 50 | 50 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| Shank Hole Size(Depth) | mm | 65 | 60 | 70 | 65 | 90 | 90 | 100 | 100 | 130 | 130 | 130 |
| Bolster Size(LxR) | mm | 720 | 825 | 930 | 950 | 1060 | 1100 | 1175 | 1390 | 1500 | 1540 | 1700 |
| Bolster Size(FxB) | mm | 400 | 440 | 520 | 600 | 640 | 680 | 760 | 840 | 880 | 880 | 950 |
| Blanking Hole diameter | mm | 150 | 150 | 150 | 180 | 180 | 200 | 220 | 250 | 270 | 270 | 290 |
| Bolster Thickness | mm | 80 | 110 | 130 | 140 | 145 | 155 | 165 | 180 | 190 | 190 | 210 |
| Bolster Surface Height | mm | 780 | 800 | 900 | 900 | 900 | 900 | 900 | 1000 | 1000 | 1000 | 1100 |
| Overall Dimensions(FxB) | mm | 1500 | 1585 | 1540 | 1765 | 2000 | 2040 | 2305 | 2600 | 2660 | 2720 | 2850 |
| Overall Dimensions(LxR) | mm | 945 | 1075 | 1200 | 1200 | 1300 | 320 | 1420 | 1540 | 1640 | 1680 | 1750 |
| Overall Dimensions(H) | mm | 2120 | 2390 | 2570 | 2725 | 3010 | 3035 | 3215 | 3800 | 3850 | 3850 | 4140 |
| Distance Between Foundation bolts(FxB) | mm | 980 | 1075 | 1100 | 1210 | 1365 | 1430 | 1665 | 2020 | 2100 | 2140 | 2185 |
| Distance Between Foundation bolts(LxR) | mm | 690 | 760 | 840 | 920 | 1020 | 1040 | 1140 | 1360 | 1460 | 1500 | 1570 |
| Motor (Power) | KW | 3 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 |
| Weight(Approximate) | Kg | 2450 | 3550 | 5150 | 6450 | 8650 | 9550 | 13600 | 19200 | 23200 | 26600 | 29500 |
