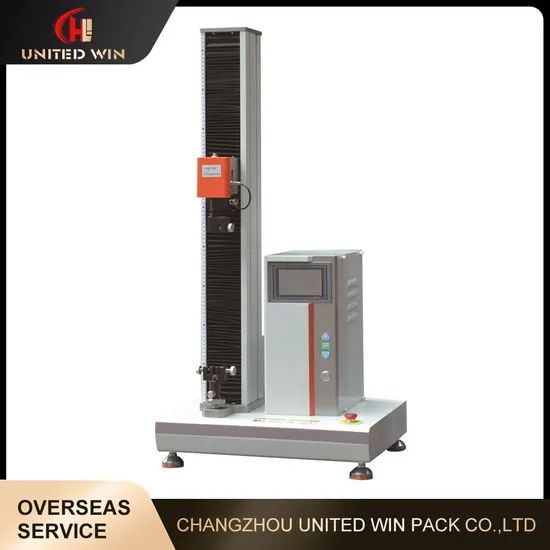

Single Column Tensile Test Machine for Plastic Fabric Release Paper/Wire Tire/Cable Leather
1 set
$1,5001 set
$700Product information
High-quality Single Column Tensile Test Machine for Plastic Fabric Release Paper/Wire Tire/Cable Leather supplied by Changzhou United Win Pack Co., Ltd.. Bulk wholesale pricing ranges from $700 to $1,500 per set with a minimum order of 1 set. Inquiry for latest prices.
Test Speed:
10-500 mm/Min
Production Capacity:
100 Sets Per Month
Weight:
14.8kg
Power Supply:
1pH,AC 220V,50Hz,10A
Capacity:
2,5,10,20,50,100,200,500kg,Max. 5kn
Package Size:
300.00cm * 200.00cm * 400.00cm
Package Gross Weight:
500.000kg
Stroke:
650mm ,Extended 1000mm
Specifications
Test Speed:
10-500 mm/Min
Production Capacity:
100 Sets Per Month
Weight:
14.8kg
Power Supply:
1pH,AC 220V,50Hz,10A
Capacity:
2,5,10,20,50,100,200,500kg,Max. 5kn
Package Size:
300.00cm * 200.00cm * 400.00cm
Package Gross Weight:
500.000kg
Stroke:
650mm ,Extended 1000mm
Motor:
AC Servo Motor
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, EXW, CFR, CIF
Unit Switchover:
G, Kg, N, Lb
Payment Term:
LC, T/T, PayPal, Western Union
Condition:
New
Optional Configuration:
Printer ,Fixtures
Payment Methods:
Support payments in USD
Trademark:
UNITED WIN
Model NO.:
UW-1176S
Software Control:
Windows XP Operating System
Transport Package:
Wooden Case
Port Of Loading:
shanghai
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2019-01-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
shanghai
Product descriptions from the supplier
Single Column Tensile Test Machine For Plastic Fabric Release Paper/Wire Tire/Cable Leather
Descripition:
Technical parameters:
Tester Photos:
Company Information:
Descripition:
1. Elegant design --- the dynamic type of base is supplemented by a spray treatment of aluminium extrusions column
2. Sophisticated transmission --- using high-precision, the gapless ball screw in a timely manner Timing Belt drive system accuracy guarantee;
3. Advanced control function --- the whole computer data acquisition and motion control; powerful software features full open test ---
4. Windows XP operating system software, users can use existing software to complete almost all of the mechanical test items can also edit their own test methods according to their actual needs. The test results can be shared with the Office, and the vast majority of office automation software
5. High test accuracy --- better than a force measurement accuracy of 1/200, 000 force values resolution, distortion measurement resolution up to 0.0001mm;u new interface design --- reserved for metal extensometers, displacement encoder and large deformation two extended interface, easy to access
6. humane operation --- on the basis of fully computer-controlled operation can also select an external manual control box to operate the instrument.
Technical parameters:
| Product model | UW-1176S ( Double Display ) |
| Capacity | 2,5,10,20,50,100,200,500kg,max. 5KN |
| Software of testing and controlling | Special testing software on Windows2000/xp |
| Correctness of testing force | Better than±0.5% |
| Resolution of testing force | 1/500,000 |
| Effectual range of testing force | 0.5~100%F.S |
| Correctness of distortion reading | Better than±0.5% |
| Speed range of testing | 0.5~500mm/min |
| Distance of testing | 650mm,( not including clamp) |
| Effective testing space | In front and back∝,Left and right to120mm |
| switching Units | Various of measuring units including international units, user can customise the necessary units |
| stopping mode | Set the limits of security,urgent stop key,programmable force and elongation setting,specimen damage sensing |
| Special functions | can do the tests of extension&compression endurance |
| Standard collocation | Standard gripper*1,software and USB cable*1,power line *1,CD operating instruction*1,work certificate*1,warranty card*1 |
| Optional collocation | Computer*1,color printer*1,different grippers |
| Dimension of main body | About 57×47×100cm(W×D×H) |
| Weight of main body | About 70kg |
| Motivity | Ac servo motor |
| Power supply | 1PH, AC220V, 50Hz,10A |
| Remarks | Do not include the computer,can be chose to buy |
| The control mode | Double display double control |

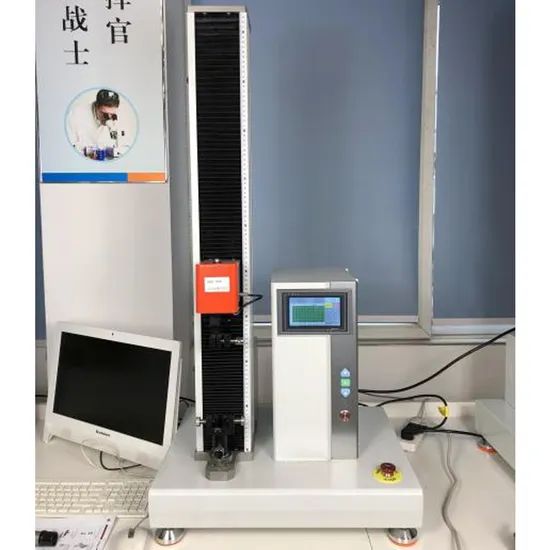

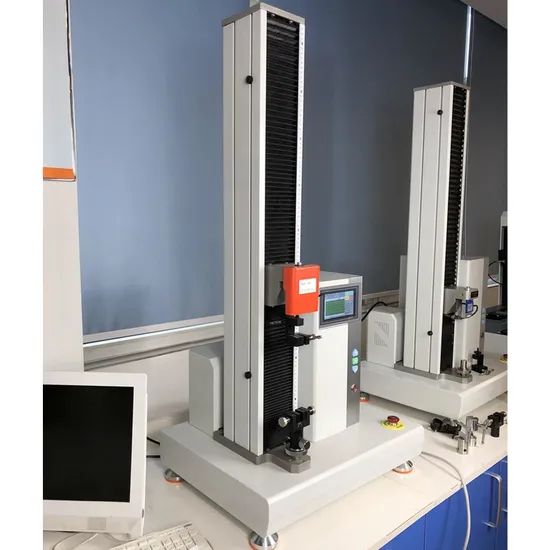

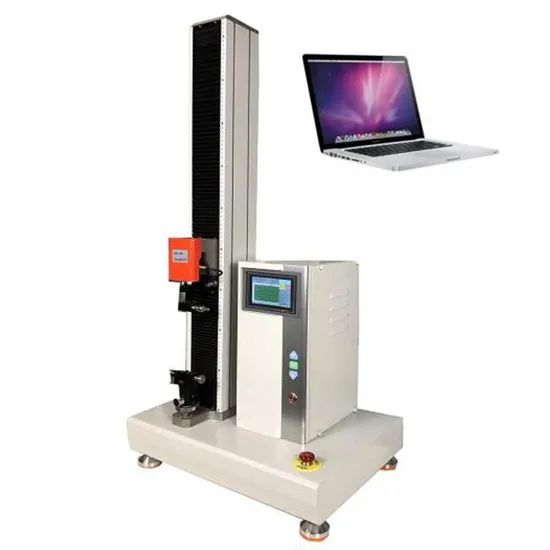

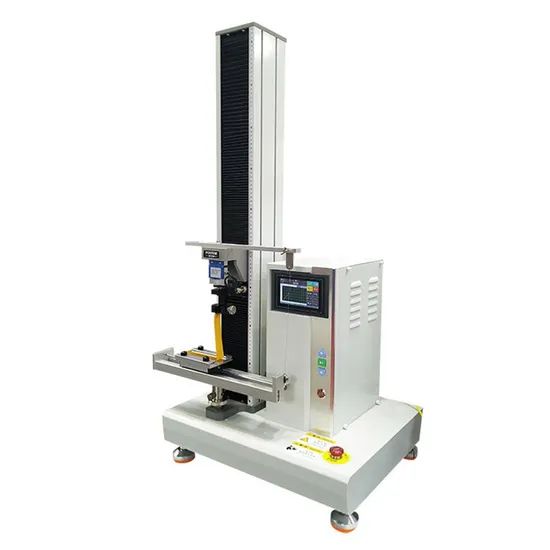

Tester Photos:
Company Information:
FAQ:
1. Are you a factory?
Yes, our company was established in 1998. It is the only comprehensive manufacturing enterprise in China produce both tape and
tape machine.
2. Can I get some tape samples for testing before placing order?
Yes,we can provide you some free samples for your reference.
3. How long is the delivery time for your tape?
The first order is 15 days after deposit,then other orders are about 7-10 days after deposit.
4. How could I get the quotation?
Tape: Please let me know the specification(thickness,width,length),quantity,application and other requirements according to your
needs so that we can provide an accurate quotation.
Machine: please provide the type of machine required and other special requirements.
5. Do you control the items quality?
Each machine strictly tested one by one before shipping.
6. How long is the delivery time for your machine?
After deposit is about 30 days.
7. What is quality guarantee policy?
12 months guarantee for all goods from our company, but we do not accept any broken by man.
8. When we receive the box, find any items missing or defective, how should we do?
Please contact us ASAP, we will check and give you best solution soon.
