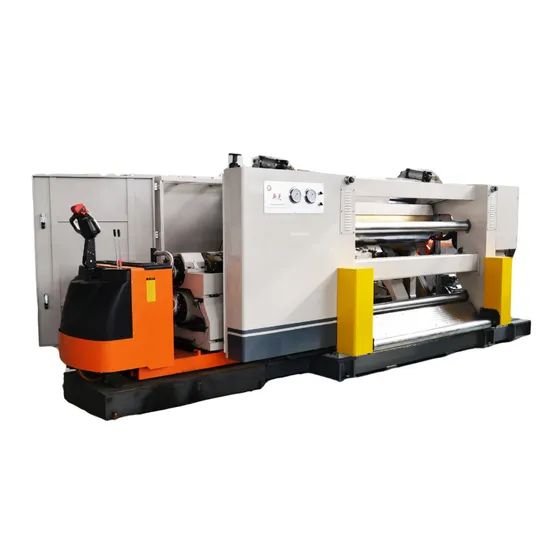

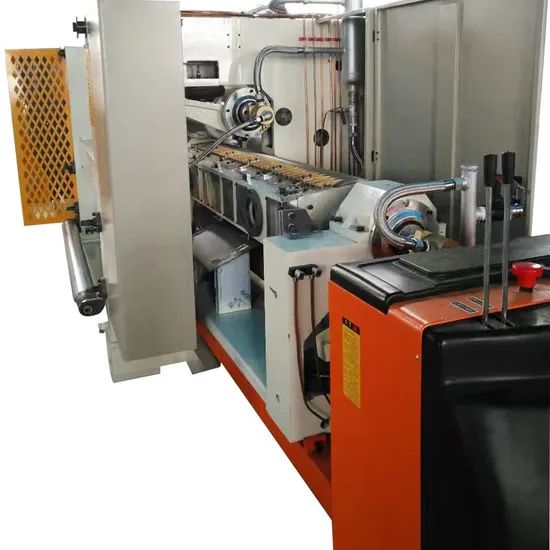

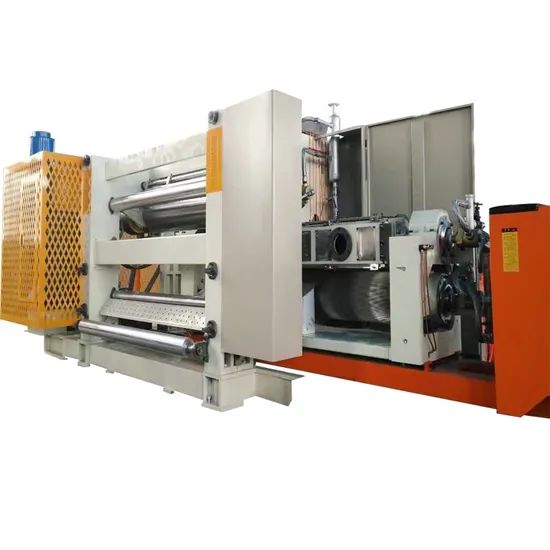

Single Facer Corrugated Cardboard Carton Box Production Machine Line
1 set
$80,0001 set
$60,000Product information
High-quality Single Facer Corrugated Cardboard Carton Box Production Machine Line supplied by DONGGUANG XINGLONG PACKAGING MACHINERY CO., LTD.. Bulk wholesale pricing ranges from $60,000 to $80,000 per set with a minimum order of 1 set. Inquiry for latest prices.
Capacity:
150-200m/Min
Production Capacity:
200 Per Year
Speed:
250m/Min
HS Code:
8443139000
Other Name:
Automatic Box Packaging Machine
Packaging:
Cartons
Origin:
China
Driven Type:
Electric
Specifications
Capacity:
150-200m/Min
Production Capacity:
200 Per Year
Speed:
250m/Min
HS Code:
8443139000
Other Name:
Automatic Box Packaging Machine
Packaging:
Cartons
Origin:
China
Driven Type:
Electric
Trade Term:
FOB
Applicable Product:
Filled Glass Bottles
Soft And Hardness:
Flexible Package
Name:
Making Machine Production Line
Product Name:
Multi-Cassette Positive Pressure Single Facer
Mode Of Operation:
Packaging of Export Products
Frequency Of Use:
Packing
Packaging Material:
Plastic
Transport Package:
Plastic Film and Wooden Box
Keywords:
Production Machine
Specification:
SF-360
Machine Type:
Sealing Packing Machine
Type:
Single Facer Machine
Circulation Function:
Single Packing
Application:
Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour
Payment Term:
To be discussed
Trademark:
XINGLONG
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2009-09-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
business lisence, CE, certificate, jianyanbaogao
Product descriptions from the supplier
single facer corrugated cardboard carton box production machine line
A,Technical parameters:
| Working width | 2000mm |  |
| Design speed | 250m/min | |
| Economic speed | 150-200m/min | |
| Paper feed range | 2000--850mm | |
| Steam temperature | 200ºC | |
| Steam pressure | 1.2Mpa | |
| Working power | 380V 50Hz 70KW |
B,Structural feature:

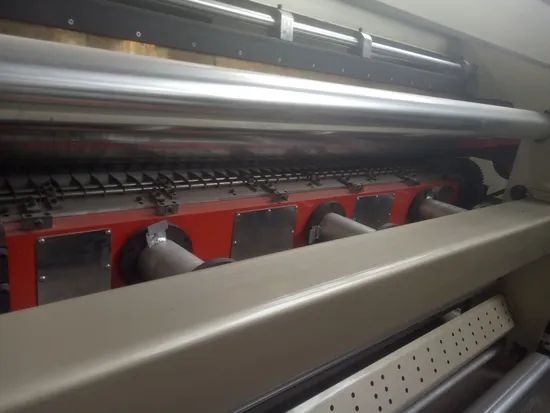

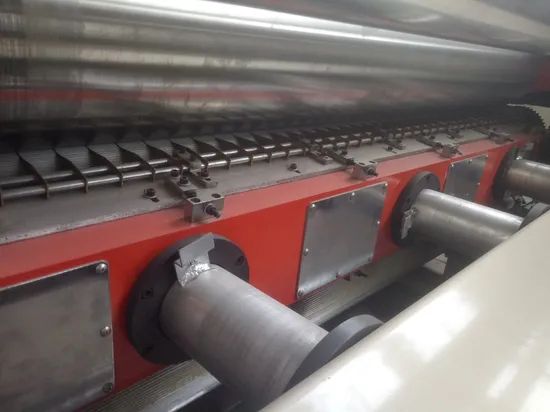

| ★Main corrugating roller:¢360mm(According flute differ),pressure roller¢400mm,preheat roller¢400mm. ★Using negative pressure design, lower heat consumption, helps the core paper to press evenly and close to the surface of corrugated roller, make the corrugate molding better, because the pressure evenly, the top of corrugate can glue uniform and better, make the single corrugated paper have perfect laminating. ★Quickly change rollers in 10 minutes, while change corrugated roller with the electric trolley loading,put into the machine,and air pressure system will lock it,fixed to the machine base,only need a few buttons can complete the replacement quickly and easily. ★Corrugated roller adopt50CRMO high quality alloy steel, dealing with heat,after grinding tungsten carbide surface treatment. ★Corrugated roller, pressure roller adopt airbag control system having high stability, having the barometric pressure control buffering effect at the same time. ★Glue volume control with electric adjustment,rubber septum electric device,the glue system can operate independently when the motor stops,prevent glue exhausted. ★The moveable type glue unit is convenient to clean and maintain. ★Easy operation control system, touch screen operation interface,Drawing with color display operating status, function selection, fault indication, and parameter settings, etc. can exclude exhibit this machine fully functional, easy to operate, user-friendly. ★Built-in pre-conditioner with proportional spraying device, adjustment the core paper temperature and moisture. ★Main, vice corrugating and pressure roller bearings are used in high-temperature grease to ensure bearing life running smoothly. |
Part name Craftsmanship |
Specification | Material | Surface treatment |
| Corrugated roller | Main roll¢405mm | 50CrMAo | Tungsten carbide treatment |
| Pressure roller | ¢495mm | 45#steel | Hardened round grinding chrome plating polishing |
| Glue roller | ¢320mm | 45#steel | Round grinding and pressing pit mesh chrome plating |
| Fixed paste roller | ¢175mm | 45#steel | Round grinding chrome |
| Preheat roller | ¢400mm | Q235B | Round grinding chrome |
| Paper guide roller | ¢110 mm | 45#steel | Round grinding chrome |
| Name | Power | Voltage | Frequency |
| Main drive motor | 45KW | 380V | 50HZ |
| High-pressure suction motor | 15KW | 380V | 50HZ |
| Adjustable glue push rod | 30W | 380V | 50HZ |
| Glue adjustment motor | 200W*2 | 380V | 50HZ |
| Rubber pump motor | 2.2KW | 380V | 50HZ |
| Motor of glue department | 3.7KW | 380V | 50HZ |
 |
 |
 |
 |
