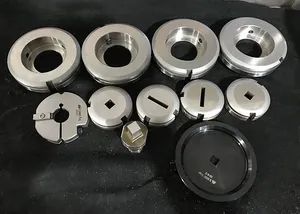

Size-I 1000 Machine CNC Punch Press Tools Material Skh51 Trademark QUAPIN Model NO. Size I HS Code 8207300090 Technics Punching Die
Piece
Negotiable
Product information
High-quality Size-I 1000 Machine CNC Punch Press Tools Material Skh51 Trademark QUAPIN Model NO. Size I HS Code 8207300090 Technics Punching Die supplied by Dongguan Quapin Hardware Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
100000
Specification:
300mm*300mm*200mm
HS Code:
8207300090
Processing Method:
CNC Machining
Mold Cavity Technology:
CNC Milling
Manufacturing Technology:
Computer Technology
Origin:
Dongguan China
Transport Package:
Express Delivery and Air Freight
Specifications
Production Capacity:
100000
Specification:
300mm*300mm*200mm
HS Code:
8207300090
Processing Method:
CNC Machining
Mold Cavity Technology:
CNC Milling
Manufacturing Technology:
Computer Technology
Origin:
Dongguan China
Transport Package:
Express Delivery and Air Freight
Trade Term:
FOB, CIF, CFR, EXW
Parts Detection Method:
Geometric Detection
Heat Treatment:
HRC 60-62
Surface Treatment:
Heat Treatment
Milling Speed:
High Speed
Applicable Machine Tool:
Machine 2020r
Driving Motor Type:
Permanent Magnet
Process Combination:
Progressive Die
Technics:
Punching Die
Trademark:
QUAPIN
After Sales Service:
Quality Problems, Free Replacement
Port Of Loading:
Shenzhen Port
Model NO.:
Size I
Material:
Skh51
Payment Term:
T/T, D/P, PayPal, Western Union, Small-amount payment
Coating:
Titanium Black Coating
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-03-17
Annual Revenue Amount:
Not specified
Numbers Of Employees:
27
Preferred Payment Term:
T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port
Certificates:
Trademark Registration Certificate
Product descriptions from the supplier
| Material | Punch-body SKH51, Die DC53 |
| Heat treatment | HRC 60°- 62° |
| Hits before regrinding ( for stainless steel ) | About 300000 hits |
| Hits before regrinding ( for mild steel ) | About 500000 hits |
| Available Machines Model | 1000, 2000, 2020, 3000, 5000, 6000, 7000 TC 190 R, 200 R, 240 L, 240 R, 260 L, 260 R, 500 R, 600 L, 1000 R, 2000 R, 2020 R, 3000 R, 3000 L, 5000 R, 6000 L |
| Forming tools | Extrusion tapping Tool, Extrusion Tool, Louver tool, Lance and Form tool, Cluster tool, Countersink tool, Half-cut tool, Plane positioning point tool, Knockout tool, Emboss Continuous tool, Thread screw tool, Center Point tool, HexLock tool, Bridge thread tool, MultiBend tool, Card guide tool, Hinge tool, Multi scribe tool, Logo tool, Ground symbol tool, Roller Rib tool, Roller Offset tool, Roller Shear tool, Roller Pincher tool, Roller Deburr tool |
| Option | Coating with TICN or Tin |
| Delivery time | 3 - 10 Days |
Please provide the following information when you purchase:
CNC punch brand
CNC punch press model
CNC punch die station structure
Thick tower 85 / thick tower 90 / thick tower MATE / thin tower 140 / Murata / thick tower heavy load / bus machine mold series
(Mold height series or the outer diameter of our production data)
The plate material thickness or clearance
Ordering parts: The whole package (eg die / die / back plate, etc.)
Mold Specifications Shape Size: B-RE 30*5 (OB, SQ, RE)
You shoot online transactions, you must provide detailed consignee and address phone, whether urgent.
| For example 1: AE2510-NT Thick Turret 85 Gap+0.3 Full set B-RE 30*5 |
For example 2: CP1500 Thick Turret 90 Gap+0.25 Punch Assembly D-OB Φ10*50 |
For example 3: EM2510NT I Type Gap+0.3 Upper and lower tooling stripper I-RO Φ15 |
For example 4: M2048TE 114 / Vulcan Gap+0.3 Upper and lower tooling G-SQ 62*62 |
For example 5: Busbar Processing Machine BM303 Copper plate 0.3 Full set B-SQ 20*20 |
Tooling Quoted price
Mold height series or the outer diameter of our production data.
Table of recommended die clearance(reference values)
| NCT drive type | Material type / thickness | 0.8 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 3.2 | 3.5 |
| Hydraulic | Cold-rolled mild steel | 0.15-0.20 | 0.20-0.25 | 0.20-0.25 | 0.40-0.50 | 0.50-0.63 | 0.60-0.75 | 0.64-0.80 | 0.70-0.88 |
| Aluminum | 0.15-0.16 | 0.15-0.20 | 0.23-0.30 | 0.30-0.40 | 0.38-0.50 | 0.45-0.60 | 0.48-0.64 | 0.53-0.70 | |
| Stainless steel | 0.20-0.24 | 0.25-0.30 | 0.38-0.45 | 0.50-0.60 | 0.53-0.75 | 0.75-0.90 | 0.80-0.96 | 0.88-1.05 | |
| Mechanical | Cold-rolled mild steel | 0.15 | 0.15-0.18 | 0.18-0.27 | 0.24-0.36 | 0.30-0.45 | 0.36-0.54 | 0.38-0.58 | 0.42-0.63 |
| Aluminum | 0.15 | 0.15-0.16 | 0.15-0.24 | 0.20-0.32 | 0.25-0.40 | 0.30-0.48 | 0.32-0.51 | 0.35-0.56 | |
| Stainless steel | 0.15-0.18 | 0.15-0.22 | 0.21-0.33 | 0.28-0.44 | 0.35-0.55 | 0.42-0.66 | 0.45-0.70 | 0.49-0.77 |
| 4.0 | 4.5 | 5.0 | 5.5 | 6.0 |
| 0.80-1.00 | 0.90-1.13 | 1.00-1.25 | 1.10-1.38 | 1.20-1.50 |
| 0.60-0.80 | 0.68-0.90 | 0.75-1.00 | 0.83-1.10 | 0.90-1.20 |
| 1.00-1.20 | 1.13-1.35 | - | - | - |
| 0.48-0.72 | 0.54-0.81 | 0.60-0.90 | 0.66-0.99 | 0.72-1.08 |
| 0.40-0.64 | 0.45-0.72 | 0.50-0.80 | 0.55-0.88 | 0.60-0.96 |
| 0.56-0.88 | 0.63-0.99 | - | - | - |
Material Introduction
Punch body material: SKH51
SKH-51, alias high-speed steel, also known as steel or front steel, meaning quenching even in the air can be hardened when cooled, and very sharp. Chong stainless steel, skd series of more conventional mold, toughness and wear resistance are quite different.
Die material: DC53
DC53 is Japan's Datong special steel SKD11 to improve the new cold-work die steel, the technical specifications are contained in the Japanese Industrial Standards (JIS) G4404. It overcomes SKD11 high temperature tempering hardness and lack of toughness weaknesses, will be in the field of general and precision molds SKD11 fully replace the high strength and toughness of common cold die steel.
Dongguan Quapin Hardware Co.,Ltd.
Dongguan Quapin Hardware Co., Ltd is a joint venture, it specialize in R&D, manufacturing both domestic and abroad CNC turret punch press tooling (NCT) mould. Quapin is Dongguan one of the most large-scale CNC turret punch press tooling manufacturer.
QUAPIN is equipped with advance production equipment and inspection equipment. For example, CNC Center has CNC machining center, CNC computer lathe, sodick CNC wire-cut machine, CNC EDM machine, Professional internal grinding, Precision cylindrical grinder, Precision flat stone mill other other advanced processing equipment and optical projections, Hardness tester, Sand blasting machine, Marking machine and other high-precision testing equipment. After years of efforts, the company established scientific, high-efficiency, perfect management system as well as CAD/CAM/UG manufacturing capability.
Quapin specializes in the research, development and manufacturing of CNC turret punch press molds. We provide one-on-one free technical service, lightning delivery and intelligent stocking; try our best to help the sheet metal manufacturing enterprises to increase production efficiency and minimize the processing cost of each product.
We Qaupin products team silently in the tens of thousands of sheet metal business, elevator business, sheet metal machine tool business, the world's top 500 enterprises and other services;
Quapin products in the mold to ensure quality, quality service at the same time, we constantly innovate! Adhering to do our best to help sheet metal production enterprises to improve production efficiency, the processing cost to a minimum!
Q: Are you trading company or manufacturer ?
A: We have 11 year experience in the production of the factory, we are Dongguan mold production base. For the customer we offer the price of competitive, professional production, adequate supply, high production efficiency, greatly expanding the interests of customers.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the tools are standard. Or it is 15-20 days if the tools is special forming shape.
Q: Do you provide samples ? is it free or extra ?
A: We do not provide samples.
Q: Do not receive the goods after payment or product delivery error how to do?
A: The customer is paid to One Touch's account at the time of payment, and will guarantee a full refund when you encounter both cases
Q: How is your after-sales service?
A: After the delivery of mold quality problems, replacement(except man-made damage)
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
