Sk Professional Bus Type Plastic Small Three Side Sealing Plastic Candy Bag Production Automatic Pouch Making Machine

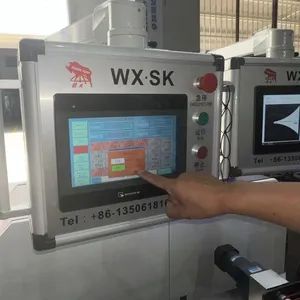

Sk Professional Bus Type Plastic Small Three Side Sealing Plastic Candy Bag Production Automatic Pouch Making Machine - Image 1

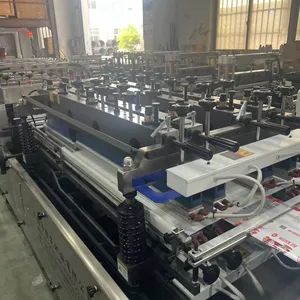

Sk Professional Bus Type Plastic Small Three Side Sealing Plastic Candy Bag Production Automatic Pouch Making Machine - Image 2

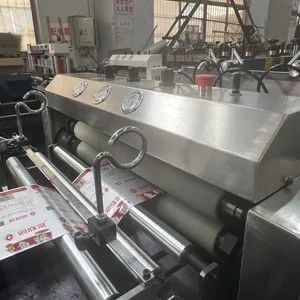

Sk Professional Bus Type Plastic Small Three Side Sealing Plastic Candy Bag Production Automatic Pouch Making Machine - Image 3

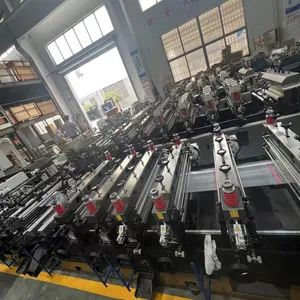

Sk Professional Bus Type Plastic Small Three Side Sealing Plastic Candy Bag Production Automatic Pouch Making Machine - Image 4
Sk Professional Bus Type Plastic Small Three Side Sealing Plastic Candy Bag Production Automatic Pouch Making Machine - Image 5

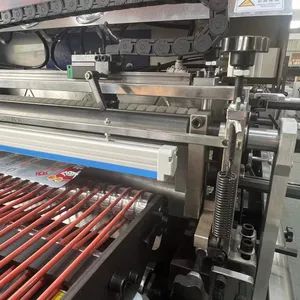

Sk Professional Bus Type Plastic Small Three Side Sealing Plastic Candy Bag Production Automatic Pouch Making Machine - Image 6
Sk Professional Bus Type Plastic Small Three Side Sealing Plastic Candy Bag Production Automatic Pouch Making Machine - Image 1
Sk Professional Bus Type Plastic Small Three Side Sealing Plastic Candy Bag Production Automatic Pouch Making Machine - Image 2
Sk Professional Bus Type Plastic Small Three Side Sealing Plastic Candy Bag Production Automatic Pouch Making Machine - Image 3
Sk Professional Bus Type Plastic Small Three Side Sealing Plastic Candy Bag Production Automatic Pouch Making Machine - Image 4
Sk Professional Bus Type Plastic Small Three Side Sealing Plastic Candy Bag Production Automatic Pouch Making Machine - Image 5
Sk Professional Bus Type Plastic Small Three Side Sealing Plastic Candy Bag Production Automatic Pouch Making Machine - Image 6

Piece

Negotiable


Product information

High-quality Sk Professional Bus Type Plastic Small Three Side Sealing Plastic Candy Bag Production Automatic Pouch Making Machine supplied by Wuxi Shengkun Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.

Temperature Range:

0~300℃

Lines:

1

Package Gross Weight:

10000.000kg

Production Capacity:

100sets/Month

Wall Thickness:

10mm

Specification:

11600× 2050× 2050mm

Package Size:

118.00cm * 213.00cm * 218.00cm

Temperature Of The Heating Block Number:

18PCS

Specifications

Temperature Range:

0~300℃

Lines:

1

Package Gross Weight:

10000.000kg

Production Capacity:

100sets/Month

Wall Thickness:

10mm

Specification:

11600× 2050× 2050mm

Package Size:

118.00cm * 213.00cm * 218.00cm

Temperature Of The Heating Block Number:

18PCS

Mechanical Highest Beat:

300 Strokes/Min

Voltage:

380V

The Maximum Width:

580mm

HS Code:

8477800000

Total Power:

Around 55kw

Machine Weight:

Around 6500kg

Machine Type:

Bag Forming Machine

Product Line:

Bag Making Machine

Seals Mode:

Center Seals

Refund Policy:

Claim a refund if your order doesn't ship, is missing, or arrives with product issues.

Computerized:

Computerized

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Layer:

Double

Trade Term:

FOB, CIF, CFR, EXW

Sealing & Cutting:

Heat-Sealing Cold-Cutting

Speed:

High

Origin:

Jiangsu, China

Payment Term:

LC, T/T, PayPal, D/P, Western Union, Small-amount payment

Bag Dimensions:

Length: 400 mm

Type:

Plastic Bag Making Machine

Trademark:

SK

Model NO.:

SK-600A

Port Of Loading:

Shanghai Port

Model:

Sk-600A-1

Payment Methods:

Support payments in USD

Machine Features:

Three-Side Sealing,Moving Knife Double Cutter Bag

Transport Package:

Wooden Pallet, Rust Proof Bag

Continuous Rolled:

Yes

Maximum Roll Size:

Φ 900 × 1250 mm

Max Discharge Line Speed:

≤50 M/Min

Positioning Accuracy:

≤±0.5mm

Business Details

Country:

China

Business Types:

Not specified

Main Markets:

Not specified

Main Products:

Year Established:

2011-09-19

Annual Revenue Amount:

Not specified

Numbers Of Employees:

31

Preferred Payment Term:

LC, T/T, PayPal, D/P, Western Union, Small-amount payment

Preferred Trade Term:

FOB, CIF, CFR, EXW

Port Of Loading:

Shanghai Port

Product descriptions from the supplier

Automatic high speed three side sealing bag making machine
Machine Features

Built using exacting machining and careful construction, the machine boasts a sleek, thoughtfully arranged外观. It runs with quiet, seamless operation and minimal sound. A PLC-managed dual-servo drive system ensures steady, uninterrupted material transfer from the unwind point and overhead frame at a consistent pace using an additional drive motor. Centralized temperature regulation through an automated system greatly cuts energy usage. The midline tension roller uses real-time adjustment technology, reducing vertical movement during operation and maintaining consistent tension across the entire process.

Main Functions

This machine is suitable for making the following types of packaging bags:

Bag type Max. Output Working speed
Three-Side Seal Pouch 6pcs(based on actual size) 300 strokes/min
Four-Side Seal Pouch optional
Special-Shaped Pouch optional
Product Parameters
Model SK-600A-1
Machine features Three-side sealing,moving knife double cutter bag making machine,feeding with storage device
Main electrical configuration Traction four servo motors with Panasonic PLC, the main drive AC servo motor, thermostat18Road , unwinding constant tension
Control System Model Panasonic  PLC composite film bag making machine speed control system
Suitable substrates Multilayer co-extruded plastic films composed of BOPP, C0PP, PET, PVC, nylon, and similar materials, aluminum-based composite films, paper-plastic blends, and aluminum foil laminates
Mechanical highest Beat 300 strokes / min, Limited bag length 150mm,depending on material)
Maximum discharge line speed ≤50 m / min ( depending on material )
Bag dimensions Length: 400 mm , exceeding this length delivery achieved using times ( up to 6 times to send )
The maximum width 580mm
Maximum roll size  Φ 900 × 1250 mm ( diameter × width )
Positioning accuracy   ≤±0.5mm
Number of sealing knife Vertical Seal: 4× top/bottom heating + top/bottom cooling
Horizontal Seal: 5× top/bottom heating + 2× top/bottom cooling
Temperature of the heating block number 18pcs
Temperature range   0~300ºC
Total power Around 55kw(just power on the actual use of power is generally around 35kw, while holding general power of about 30kw)
Dimensions Around 11600×2050×2050mm (L×W×H)
Machine weight  Around 6500KG
Wall thickness  10mm( Shanghai Baosteel )
Color black grey body, stainless steel cover, part black , nickel , chrome
