Skycom Fiber Optic Fusion Splicer T-308X
Piece
Negotiable
Product information
High-quality Skycom Fiber Optic Fusion Splicer T-308X supplied by Nanjing Tianxingtong Electronic Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Specification:
120x120x130 mm
HS Code:
8515800090
Transport Package:
Carton Packing
Origin:
China
Trade Term:
FOB, CIF, CFR, EXW
Payment Term:
LC, T/T, PayPal, Western Union
Condition:
New
Color:
Orange,Green,Red
Specifications
Specification:
120x120x130 mm
HS Code:
8515800090
Transport Package:
Carton Packing
Origin:
China
Trade Term:
FOB, CIF, CFR, EXW
Payment Term:
LC, T/T, PayPal, Western Union
Condition:
New
Color:
Orange,Green,Red
Port Of Loading:
Shanghai Port
Trademark:
Skycom
Model NO.:
T-308X
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2010-06-25
Annual Revenue Amount:
Not specified
Numbers Of Employees:
55
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
CE, ISO45001:2018, RoHS, ISO9001:2015
Product descriptions from the supplier

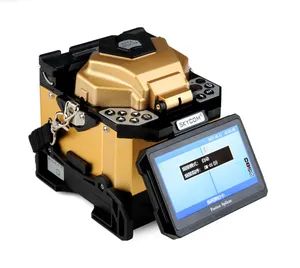

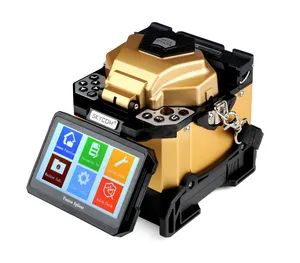

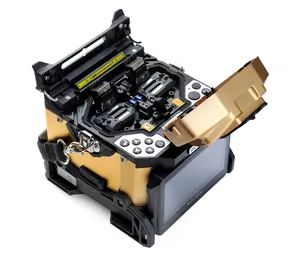

SKYCOM Hi-Precision Digital Fusion Splicer T-308X
Description
> Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.
> We has been dedicated to R & D, manufacturing fusion splicer for more than 12 Years.
> Skycom T-308X is multipurpose fiber optic splicing machine which is applicable for single bare fiber and rubber-insulated cable.
> Our company have developed fusion splicer from 2010, and successfully obtained 5 patents for the fusion slicer research. Skycom T-308X is our product. It has successfully passed CE. SGS, ISO 9001 tests.
> Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.
> We has been dedicated to R & D, manufacturing fusion splicer for more than 12 Years.
> Skycom T-308X is multipurpose fiber optic splicing machine which is applicable for single bare fiber and rubber-insulated cable.
> Our company have developed fusion splicer from 2010, and successfully obtained 5 patents for the fusion slicer research. Skycom T-308X is our product. It has successfully passed CE. SGS, ISO 9001 tests.
Key Features
>4.3inches high resolution colorful LCD display,image can be turned according to position
>Typicalsplice time:9seconds
>Typicalheat time:25seconds
>5200mAh, Ultra-high Battery
>Multistage Amplification, Magnification up to520XWhich Makes Clear Image
> New developed technology providingstrongwind and dust resistance
> Splicing mode: Auto & Manual & Full-Auto
> USB Port
>Automatic Detection
>Typicalsplice time:9seconds
>Typicalheat time:25seconds
>5200mAh, Ultra-high Battery
>Multistage Amplification, Magnification up to520XWhich Makes Clear Image
> New developed technology providingstrongwind and dust resistance
> Splicing mode: Auto & Manual & Full-Auto
> USB Port
>Automatic Detection
Specifications
| Applicable Fibers | SM, MM, NZ-DS, EDF, Pigtail, Cable (rubber-insulated wire), SC/LC/FC connector (optional function) |
| Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
| Return Loss | ≥60dB |
| Tension Test | 2.0N(200gf)(Standard) |
| Typical splicing time | 9seconds |
| Typical heating time | 25seconds |
| Splicing Program | 50 preset and user programmable modes |
| Heating Program | 10 heating modes |
| Applicable Sleeve Length | Mrico, 40mm, 45mm,60mm |
| Tension Test | 1.96~2.25N |
| Cleaved Length | 8~16mm-250μm 13~mm-900μm |
| Operating language | Chinese, English, French, Portuguese, Spanish |
| Operating Conditions | -10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
| Power Supply | AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) Inner lithium battery: 11.1V, 5.2AH |
| Monitor | 4.3 inches high resolution colorful LCD display |
| Fiber Image Magnification | X or Y axis Separately views 520 times magnification, or Simultaneously220 times |
| Storage of Splice Result | 6,000 groups of latest splice results |
| Splicing Model | Auto & Manual & Full Auto |
| Optical Fiber Fixture | 3-in-1 cutting fixture; Multipurpose 1+N fixture(T-308XF, for SC/LC/FC connector) |
| Dimensions | 120(W)*120(D)*120(H)mm; |
| Weight | 1.39kg+0.34kg (battery weight)=1.73kg; |
| Applicable Fibers | SM, MM, NZ-DS, EDF, Pigtail, Cable (rubber-insulated wire), SC/LC/FC connector (optional function) |
| Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
*T-328X= T-308X+Touchscreen

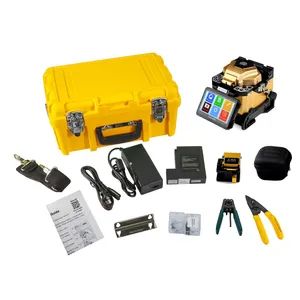

Standard Package
| No. | Item | 1 |
| 1 | MachineT-308X | 1 |
| 2 | Fiber Cleaver | 1 |
| 3 | Fiber Stripper | 1 |
| 4 | AC Adaptor (Charger) | 1 |
| 5 | Battery | 1 |
| 6 | Spare Electrodes | 1 |
| 7 | Cooling Tray | 1 |
| 8 | Quick Reference Guide | 1 |
| 9 | Rubber-insulated wire stripping pliers | 1 |
| 10 | Rubber-insulated wire 3-in-1 cutting fixture | 1 |
| 11 | Carrying Case with Carrying Strap | 1 |
FAQ
1.Are you a manufacture or trade company?
We are the manufacture with 10 year's history still 2020
2.What is your product's brand?
Our product's brand is SKYCOM
3.What is your main products?
Our main product is Fusion Splicer, OTDR, some fiber tools
4.How can we place order?
1.Are you a manufacture or trade company?
We are the manufacture with 10 year's history still 2020
2.What is your product's brand?
Our product's brand is SKYCOM
3.What is your main products?
Our main product is Fusion Splicer, OTDR, some fiber tools
4.How can we place order?
After we made agreement on the product parameters, we will make proforma invoice for your confirmation, when we got your payment, we will arrange the production and delivery. If you have your own ship forwarder, we will use your ship forwarder to delivery goods, if you don't have the ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight cost.
5. What is the quality for your product?
All of our productsare with high quality, Our customers from Asia, South America, North America,EU, Africa. We also serve for China Unicom, China Telecom, China Mobile
6. How do you arrange the shipping?
They are two types of shipping methods available, by sea and by air(Express courier-Fedex/DHL/UPS/TNT/EMS,we can ship them according to your express account or ship them by our agent company,the delivery time is about 7 working days.
7. Why choose SKYCOM to cooperate?
We have first-class production line and strict quality management system.
We have professional procedure system and big production capacity to guarantee fast delivery and on time shipment.
We can provide the most competitive price to meet your budget.
We also design and innovation the new products based on our rich experience.
We have professional team to provide comprehensive one-stop service for you.
5. What is the quality for your product?
All of our productsare with high quality, Our customers from Asia, South America, North America,EU, Africa. We also serve for China Unicom, China Telecom, China Mobile
6. How do you arrange the shipping?
They are two types of shipping methods available, by sea and by air(Express courier-Fedex/DHL/UPS/TNT/EMS,we can ship them according to your express account or ship them by our agent company,the delivery time is about 7 working days.
7. Why choose SKYCOM to cooperate?
We have first-class production line and strict quality management system.
We have professional procedure system and big production capacity to guarantee fast delivery and on time shipment.
We can provide the most competitive price to meet your budget.
We also design and innovation the new products based on our rich experience.
We have professional team to provide comprehensive one-stop service for you.
