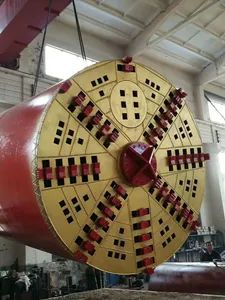

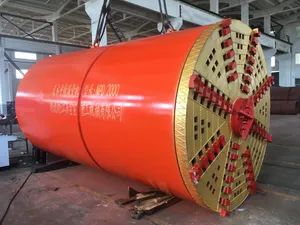

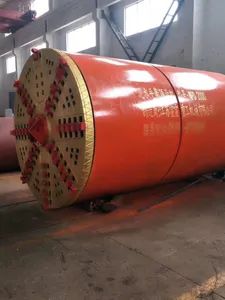

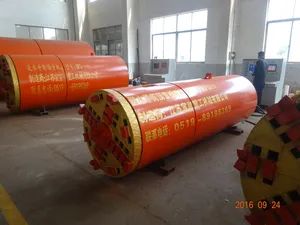

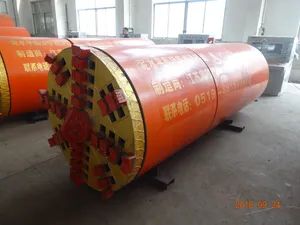

Slurry Pipe Jacking Machine Tunnel Boring Underground Pipe Jacking Machine
Set
Negotiable
Product information
High-quality Slurry Pipe Jacking Machine Tunnel Boring Underground Pipe Jacking Machine supplied by JIANGSU XUAN XUAN HEAVY MACHINERY CO., LTD.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Rotation Number(R/Min):
2.27
Power(Kwxset):
22X2
Rectifying Pump Station(Kw):
3
Production Capacity:
400 Sets Per Year
Rectifying Cylinder (Txset):
63X4
HS Code:
8430313000
Trade Term:
FOB, CIF, CFR, EXW
Origin:
Jiangsu Changzhou
Specifications
Rotation Number(R/Min):
2.27
Power(Kwxset):
22X2
Rectifying Pump Station(Kw):
3
Production Capacity:
400 Sets Per Year
Rectifying Cylinder (Txset):
63X4
HS Code:
8430313000
Trade Term:
FOB, CIF, CFR, EXW
Origin:
Jiangsu Changzhou
Touch Screen:
Mit Subishi, Japan
Transport Package:
Nude Packing
Specification:
Overall dimension: 1460x3600
Main Electrical Components:
Schneider
Port Of Loading:
Shanghai Port
Electric Motor:
Siemens
Payment Term:
T/T, LC
Trademark:
Xuanxuan
Steering Solenoid Valve:
Yuken, Japan
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2015-07-17
Annual Revenue Amount:
Not specified
Numbers Of Employees:
31
Preferred Payment Term:
T/T, LC
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
ISO14001, ISO9001, OHSAS18001, SGS
Product descriptions from the supplier
Product Description:
For a complex underground or mix, of a composition varying between rock with low resistance and medium resistance, our pipe jacking machine excavation chamber is equipped with a cone crusher. From the cutter head excavation the clod and stones enter into the crushing chamber, to be crushed by a secondary crushing device, the cross arm in the process of rotation breaks the debris, reduce to minimum diameter to fit the outlet line, simultaneously mixed with water for slurry excavation.
| Technical Specification | |||||||||
| Type | DxL(mm) |
(T) | (KWxSet) | (KN.m) | (rimin) | (TxSet) | (°) |
(Kw) | (mm) |
| Exemal Dimension |
Weght | Power | Torque | RPM | Steering jacks |
Correction Angle |
Steering Pump Station |
Suny Pipe Dam |
|
| NPD8008 | 1020x3800 | 6 | 22x1 | 38 | 4.58 | 48x4 | 2.5 | 3 | 100 |
| NPD1000B | 1220x3800 | 7 | 30x1 | 45.2 | 4.58 | 48x4 | 3 | 3 | 100 |
| NPD1200B | 1460x3800 | 9.5 | 22x2 | 152 | 2.27 | 63x4 | 2.7 | 3 | 100 |
| NPD1350B | 1640x3800 | 12 | 22x2 | 152 | 2.29 | 63x4 | 2.7 | 4 | 100 |
| NPD1500B | 1820x4100 | 16.5 | 30x2 | 238 | 1.73 | 80x4 | 2.7 | 4 | 100 |
| NPD1650B | 2000x4000 | 19 | 30x2 | 238 | 1.73 | 80x4 | 2.7 | 4 | 100 |
| NPD1800B | 2180x4400 | 24 | 30x3 | 406.8 | 1.53 | 63x8 | 2.7 | 4 | 100 |
| NPD2000B | 2420x4400 | 26 | 30x3 | 406.8 | 1.53 | 80x8 | 2.7 | 7.5 | 150 |
| NPD220OB | 2660x4400 | 30 | 30x3 | 406.8 | 1.53 | 80x8 | 2.7 | 7.5 | 150 |
| NPD2400B | 2900x4700 | 40 | 30x4 | 723 | 1.15 | 120x8 | 3 | 7.5 | 150 |
| NPD2600B | 3140x4700 | 43 | 30x4 | 723 | 1.15 | 120x8 | 3 | 7.5 | 150 |
| NPD2800B | 3380x4700 | 55 | 30x6 | 1300 | 0.92 | 120x8 | 3 | 1.5 | 150 |
| NPD3000B | 3620x5400 | 68 | 30x6 | 1300 | 0.92 | 200x8 | 3 | 15 | 150 |
| NPD3500B | 4180x5400 | 76 | 30x8 | 1808 | 0.92 | 200×8 | 3 | 15 | 150 |
| NPD4000B | 4840x5600 | 90 | 30x8 | 2160 | 0.76 | 200x8 | 3 | 15 | 150 |
Application Scope:
Gravel, Limestone,Cobblestone,Mix etc.
Main Features:
The cutter head adopts cross arm structure , greatly improves the speed into slurry chamber, besides, the cross arm includes high pressure water nozzle and improves hardness of the excavation face and the efficiency.
In addition to the body adding welding wear layer, the wear resistance layer height 3-5mm, hardness above HRC56, the tungsten carbide welding adopts silver blade brazing and greatly improves bond strength of cutting tools, brazing strength over 245Mpa
Advantage:
The advantages of our equipment
1.The shell thickness is not less than 25mm so as to avoid any deformation. It is made as a whole part, not pieced together.
2. Power Box:
2.1 The main axle material is 42CrMo and its gear never breaks.
2.2 Good sealing ensures that mud water will not enter the power box.
2.3 Use of ultrasonic flaw detection ensure no occurrence of cracks and achieve triple flaw detection.
2.4 It's a complex processing from rough finish, forging, heat treatment, flaw detection to fine finishing and chroming.
3. PLC electronic control system
3.1 Humanized design with USB interface under control desk (console) for charging
3.2 PLC program is programmed with motor protection and 5-second delay for fast stop under both clockwise and counterclockwise motor running so that the gear will not be broken for sake of gear protection.
3.3 PLC intelligent control can take a three-day record of operator's deviation correction in case of unnecessary dispute after any accident.
4 Hydraulic valves.
4.1 The hydraulic valve Brand is BMEG, with good hydraulic stability.
4.2 Hydraulic lock ensures no pressure release.
4.3 Separate hydraulic stations, motor, pump ,oil tank separated for easy maintenance.
Technical Advantage:
3. Backup system adopts automatic guidance system as similar as VMT
Tunneling Data Acquisition and Recording System
Packaging & Shipping
Nude Packing
Delivery Detail:
60 days after receiving 30% deposit.
Our Services:
1.After sales services: overseas commissioning engineer available for testing and installation.
2.Working services: overseas commissioning working team for whole pipe jacking construction.
3.On site service support;
4.12months warranty;
5. Permanent service support,
6. Communicate through web services, Phone, E-mail, Whatsapp,Wechat, Linkedin etc.
7. 24/7 Hot-line & E-mail Service.
8.Your inquiry related to our pipe jacking machine will be replied within 24 hours. Well-trained and experienced staff will answer all your questions in fluent English.
Warranty:
If quality & assembling problem cause troubles, we take responsible on spare parts and all service fees.
If misusage or human factors cause the trouble, users shall take responsibility on spare parts and all service fees.
Gravel, Limestone,Cobblestone,Mix etc.
Main Features:
The cutter head adopts cross arm structure , greatly improves the speed into slurry chamber, besides, the cross arm includes high pressure water nozzle and improves hardness of the excavation face and the efficiency.
In addition to the body adding welding wear layer, the wear resistance layer height 3-5mm, hardness above HRC56, the tungsten carbide welding adopts silver blade brazing and greatly improves bond strength of cutting tools, brazing strength over 245Mpa
Advantage:
The advantages of our equipment
1.The shell thickness is not less than 25mm so as to avoid any deformation. It is made as a whole part, not pieced together.
2. Power Box:
2.1 The main axle material is 42CrMo and its gear never breaks.
2.2 Good sealing ensures that mud water will not enter the power box.
2.3 Use of ultrasonic flaw detection ensure no occurrence of cracks and achieve triple flaw detection.
2.4 It's a complex processing from rough finish, forging, heat treatment, flaw detection to fine finishing and chroming.
3. PLC electronic control system
3.1 Humanized design with USB interface under control desk (console) for charging
3.2 PLC program is programmed with motor protection and 5-second delay for fast stop under both clockwise and counterclockwise motor running so that the gear will not be broken for sake of gear protection.
3.3 PLC intelligent control can take a three-day record of operator's deviation correction in case of unnecessary dispute after any accident.
4 Hydraulic valves.
4.1 The hydraulic valve Brand is BMEG, with good hydraulic stability.
4.2 Hydraulic lock ensures no pressure release.
4.3 Separate hydraulic stations, motor, pump ,oil tank separated for easy maintenance.
Technical Advantage:
1. Main drive can be driven by a hydraulic motor, with high torque, high reliability, power and technical parameters are based on Herrenknecht and MTS.
2. Main drives adopts Swing bearing design, it has the same design and function as Herrenknecht and MTS, but with low-cost value.3. Backup system adopts automatic guidance system as similar as VMT
Tunneling Data Acquisition and Recording System
Packaging & Shipping
Nude Packing
Delivery Detail:
60 days after receiving 30% deposit.
Our Services:
1.After sales services: overseas commissioning engineer available for testing and installation.
2.Working services: overseas commissioning working team for whole pipe jacking construction.
3.On site service support;
4.12months warranty;
5. Permanent service support,
6. Communicate through web services, Phone, E-mail, Whatsapp,Wechat, Linkedin etc.
7. 24/7 Hot-line & E-mail Service.
8.Your inquiry related to our pipe jacking machine will be replied within 24 hours. Well-trained and experienced staff will answer all your questions in fluent English.
Warranty:
If quality & assembling problem cause troubles, we take responsible on spare parts and all service fees.
If misusage or human factors cause the trouble, users shall take responsibility on spare parts and all service fees.
Jiangsu Xuanxuan Heavy Machinery Co., Ltd. is affiliated with Weiqiang Group.It's located in Changzhou city,Jiangsu Province, it is located in the center of the Yangtze River Delta, the north part close to Yangtze River, the south part close to Lake Taihu, and East part is close to the East China Sea. That is the birthplace of modern Chinese industrial, modern equipment manufacturing city. It Has a superior geographical advantage with convenient land and sea and air transportation conditions.
WeiQiang group was founded in 1989,More than 30 years of history, now,It Consists of several companies, such as Weiqiang Chemical, Weiqiang machinery, XuanXuan heavy Machinery, it was assessed as "private technology enterprises in Changzhou City","High-tech enterprises in Jiangsu Province " Private science and technology enterprises in jiangsu province ".
Jiangsu Xuan Xuan Heavy Machinery Co., Ltd. professional design and manufacture trenchless engineering equipment, integrate Product development, manufacturing, marketing and after-sales service. Products include multi-series slurry pipe jacking machine, pipe jacking equipment and spare parts. Mixed pipe jacking machine, EPB(Earth Pressure Balance pipe jacking machine),GBM (Guide Boring Machine/ Auger Boring Machine) Casing oscillator etc. from 300mm to 4000mm MTBM(Micro Tunneling Boring Machine).
The company attaches great importance to the development of new technology and new products. In recent years, vigorously invested in the non-excavation pipe jacking equipment hydraulic systems, and had done a lot of fruitful work. It has successfully developed a slurry balance, earth pressure balance , rock pipe jacking machine, auger boring machine and series of multi-type excavation products, It has been a successful application in job sites.
The company attaches great importance to product quality management, and establish a standardized and systematic quality management platform, strict requirements, excellence, our goal is to provide customers with high-quality engineering equipment. Company will provide high-quality pre-sale, sale, after-sales service,Companies to provide high-quality pre-sale, sale, after-sales service, At any time, provide product consulting, use guidance, etc.
Adhering to the service purposes of "active", professional specialization, efficiency first " we aim to provide quality products and excellent service to our customers. To achieve the expectations of customers and exceed goals of industry standard.
Xuanxuan heavy industry Machinery Co., Ltd. based on long-term development strategy, follow the product concept, and vigorously promote scientific and technological innovation, continuing to provide customers with quality products and services.
FAQ:
In order for you to get a better price and technical solutions. Please provide the following required parameters:
1. Project total length, distance for one section, how many sections will be built?
2. Pipe type: CRP/RCC concrete pipe or steel pipe etc, pipe drawing or pipe dimension such as pipe length ? spigot size? outer and inner diameter ?
3. Projects information: water supply, sewage project?
4. Underground water level;
5. SI (Soil Investigation), detailed soil information.
6. Project Drawing
