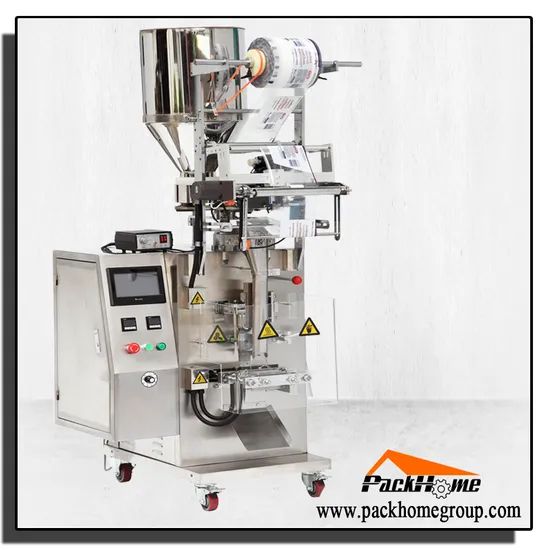

Small Automatic Grain Granule Particle Sachet Packer
1 Set
$5,0001 Set
$3,000Product information
High-quality Small Automatic Grain Granule Particle Sachet Packer supplied by Packhome Co., Ltd.. Bulk wholesale pricing ranges from $3,000 to $5,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Warranty Time:
1 Year
Packing Weight:
1-100g
Packing Speed:
10-50 Bags/Mins
Specification:
1200mm x 700mm x 1520mm
Production Capacity:
30 Sets/Months
Bag Width Range:
30-150mm
Bag Length Range:
30-200mm
Max Film Diameter:
300mm
Specifications
Warranty Time:
1 Year
Packing Weight:
1-100g
Packing Speed:
10-50 Bags/Mins
Specification:
1200mm x 700mm x 1520mm
Production Capacity:
30 Sets/Months
Bag Width Range:
30-150mm
Bag Length Range:
30-200mm
Max Film Diameter:
300mm
Max Film Width:
320mm
HS Code:
8422303090
OEM/ODM Service:
Acceptable
Automatic Grade:
Automatic
Forming Species:
Bag Moulding
Origin:
China
Application:
Cleaning, Detergent, Cosmetics, Drinks, Dairy Products, Tea, Snack, Rice, Flour, Seasoning, Grain / Granule
Driven Type:
Electric
Trade Term:
FOB, CIF, FCA, EXW
Packaging Material:
Film
Type:
Forming Filling Sealing Machine
Forming Function:
Forming, Filling, Seal
Port Of Loading:
Foshan, Shenzhen, Guangzhou, Shantou
Material Type:
Grain
Model NO.:
PH-320G
Trademark:
PackHome
Machine Material:
Stainless Steel 304
Transport Package:
Strong Non-Fumigation Wooden Case Package
Payment Term:
T/T
Packaging:
Wooden Case
After Sales Service:
on Site Installation and Debugging
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-07-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T
Preferred Trade Term:
FOB, CIF, FCA, EXW
Port Of Loading:
Foshan, Shenzhen, Guangzhou, Shantou
Certificates:
CE CERTIFICATION OF VERTICAL PACKING MACHINE, SGS
Product descriptions from the supplier
Are you looking for a small sachet packing machine which can packing from 1-500g grain product by full automatic?
Do you trying to find a economical packing machine model but with high quality and assured service?
OurSmall Automatic Grain / Granule / Particle Sachet Packer can be your first choice!

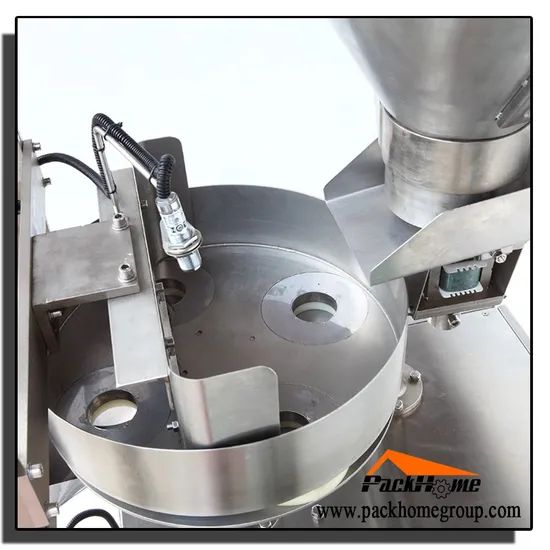

Equipped with a volumetric cup feeding mechanism, ideal for handling grain and granular materials such as peanuts, coffee beans, sugar, salt, rice, sesame, and similar products. The cups are engineered for simple removal and replacement to facilitate thorough cleaning. Thanks to advanced precision manufacturing, the machine ensures packing weight consistency within 1% tolerance.( depending on product size)

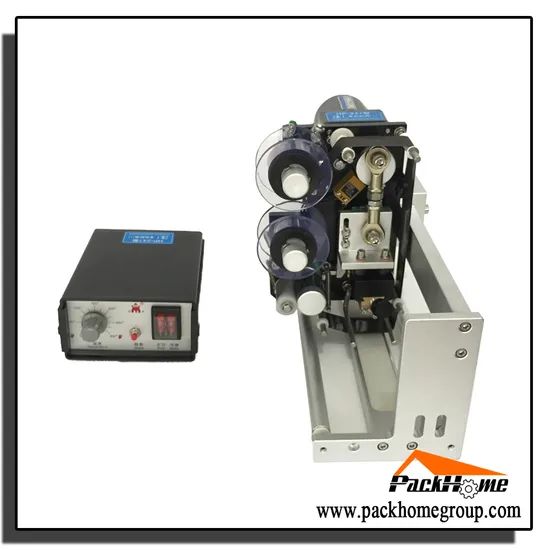

Operating the machine is straightforward—simply place the packaging film onto the unit, and it will automatically create the bag, fill it to the preset weight, print the production date, expiration date, and batch number, then securely seal it. Features include nitrogen gas infusion, linked bag option, and a hanging hole punch function!
|
Available Sealing Way |
Stick bag, pillow bag, center seal, 3 / 4 sides bag seal, linked bag, gusset bag | |
|
Sachet size range |
Min.Size |
25mm(W) × 40mm(L) |
|
Max.Size |
150mm(W) × 200mm(L) | |
|
Filling weight range |
≤500g( require replace volumetric cups) |
|
|
Packing speed |
10-50 bags/min |
|
| Power electricity |
220V / 1P / 50Hz / 2Kw( customized) |
|
|
Film roll diameter |
≤Φ300mm |
|
|
Film thickness |
0.04-0.08mm |
|
|
Suitable film material: |
PE / PP / OPP / PVC / PET / CPP / NY / AL / VMPET( at least 2 layer) | |
|
Machine control system |
PLC + Touch screen |
|
|
Machine package size |
300kg, 2.2 m3 |
|
https://youtu.be/pPj3YmQS5K0 (pillow bag bean package example)
https://youtu.be/cXQ2WAIHBmQ (4 sides bag seal sugar package example)
Oversea project case in different countries:Please visit our company official website.
What we do for client:
1. Using strong non-fumigation wooden box package.
2. All cargo stick with unique client`s shipping mark.
For better offer our suggestion and prepare quotation, hope we can know below info from you:
A. Your bag size
B. Your bag picture
C. Packing weight
D. Packing speed requirement
E. Exactly product need to packed
Product FAQ - Grain / Granule Sachet Packing Machine (PH-320G)
Q1: What materials can PH-320G pack?
A:
This machine is suitable forgrain, granule and particle productssuch as rice, sugar, salt, sesame, coffee beans, seeds, snack granules and similar free-flowing materials.
Q2: How does the machine complete the packaging process?
A:
The machine integratesbag forming, filling, sealing and date printingin one automatic process. The operator only needs to load the film and set parameters on the touch screen.
Q3: What is the production capacity?
A:
- Packing weight:1-100g (adjustable)
- Packing speed:10-50 bags per minute
Output depends on product size, bag dimensions and material flowability.
Q4: What bag styles are available?
A:
Supported bag types includestick bags, pillow bags, center seal, 3-side seal, 4-side seal, linked sachets and gusset bags, suitable for retail and wholesale packaging.
Q5: Is the machine easy to operate for new users?
A:
Yes. The machine uses aPLC control system with touch screen interface, allowing simple setting of bag length, filling volume and sealing temperature.
Q6: Can this machine be customized?
A:
Yes. Customization is available forvoltage, bag size, printing system, nitrogen flushing and special packaging requirements.
Q7: What packaging films are compatible?
A:
The machine supports various laminated films such asPE, PP, OPP, PET and other multi-layer composite filmswith a thickness of 0.04-0.08mm.
Q8: What after-sales service is provided?
A:
We offer a1-year warranty,24-hour technical support, and optional on-site installation and debugging service. Machines are delivered in strong export wooden cases.
