Small CNC Wood Lathes with Automatic Loading Voltage 380V Origin China Trademark Catek HS Code 8465920000 Motor Speed
1-4 Piece
$3,8005 Piece
$3,500Product information
High-quality Small CNC Wood Lathes with Automatic Loading Voltage 380V Origin China Trademark Catek HS Code 8465920000 Motor Speed supplied by Jinan Catek Cnc Machinery Co., Ltd. Bulk wholesale pricing ranges from $3,500 to $3,800 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
After Sales Service:
3-Year Warranty, Lifetime Free After-Sales Service
Motor Speed:
3000rpm
Voltage:
380V
Motor:
3kw Brake Motor
Specification:
4100*1100*1350mm
Package Size:
4200.00cm * 120.00cm * 145.00cm
Production Capacity:
50pieces/Month
Package Gross Weight:
760.000kg
Specifications
After Sales Service:
3-Year Warranty, Lifetime Free After-Sales Service
Motor Speed:
3000rpm
Voltage:
380V
Motor:
3kw Brake Motor
Specification:
4100*1100*1350mm
Package Size:
4200.00cm * 120.00cm * 145.00cm
Production Capacity:
50pieces/Month
Package Gross Weight:
760.000kg
HS Code:
8465920000
Operating Voltage:
AC380V/50/60Hz or AC220V/50/60Hz (Customizable)
Automatic Grade:
Automatic
Certification:
CE, ISO, FDA
Model NO.:
CK-0615-A
Controlling Mode:
CNC
Trademark:
Catek
Processing Accessory:
Centre CNC Lathe
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Tool Holder:
Double-tool Holder CNC Lathe
Power Source:
Electric
Transport Package:
Export Fumigation-Free Wooden Box
Trade Term:
FOB, CIF, CFR, EXW
Setting Mode:
Floor-type
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Loading & Unloading Device:
Multi-Linked Cylinder Loading System
Precision:
Precision
Equipment Cable:
Pure Copper Anti Bending Cable
Port Of Loading:
Qingdao Port
Engraving Instruction:
Standard G Code, U00, Mmg, Plt
Payment Methods:
Support payments in USD
Transmission Mode:
Xy Axis 25 Tbi Ball Screw
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2023-11-17
Annual Revenue Amount:
Not specified
Numbers Of Employees:
124
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao Port
Certificates:
Business license, CE, certification, Export registration form
Product descriptions from the supplier

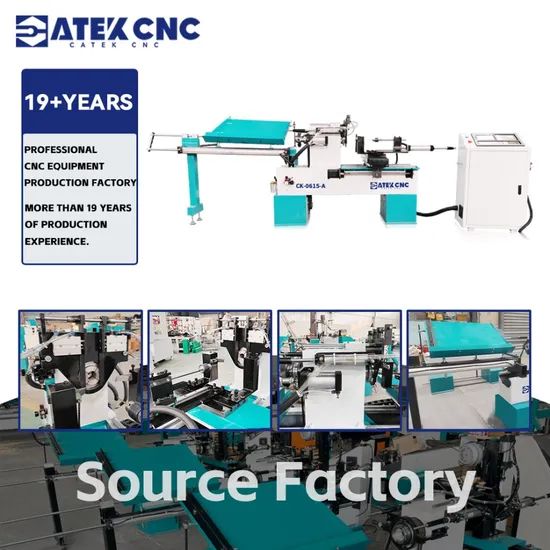

MACHINE PHOTOS
PRODUCT PARAMENTERS
Model | CK-0615-A |
Processing Dimensions | 60mm diameter * 150mm length (customizable) |
Bed | Heavy-duty integral casting bed, independent anti-interference control cabinet |
Electrical Machinery | 3KW brake motor |
Driving Mode | CATEK CNC dedicated servo motor |
Motor Speed | 3000rpm/min |
Driving Mode | XY axis 25TBI ball screw drive |
Guideway | Taiwan Hiwin high-precision 25 straight square rail/25 flange slider |
Equipment Cable | Pure copper anti bending cable |
Control System | Dedicated control system panel, CK-1000TC (matching pulse handwheel) |
Lubrication System | Electric lubrication oil injection maintenance system |
Operating Voltage | AC380V/50/60Hz OR AC220V/50/60Hz (customizable) |
Compatible Software | Artcam, AutoCAD, CDR, Illustrator, etc. (including self-developed simple drawing software) |
Engraving Instruction | Standard G code, u00,mmg,plt |
Loading & Unloading Device | Multi-linked cylinder loading rack (simple and easy to use) |
Security System | XYZ three-axis all photoelectric limit |
Repeat Positioning Accuracy | ±0.02mm |
Weight | 750kg |
Dimensions | 4100*1100*1350mm |
DETAILS IMAGES

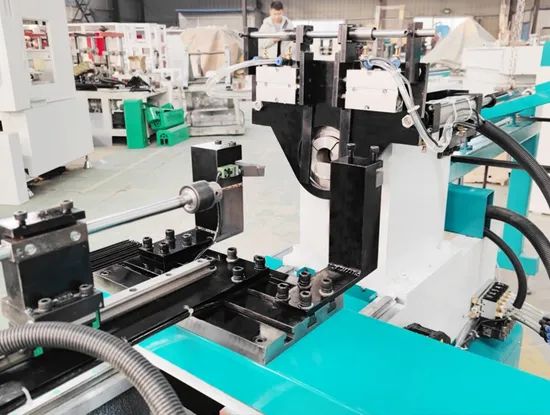

Standard turning tool, cutting tool, drill, can be fully automatic feeding, turning, drilling, cutting, shape processing can be fully automatic layering, drilling depth can be automatically processed in batches, improving processing efficiency and product quality.
The drill bit or internal hole cutter can be replaced according to the processed product. The drill bit is used for drilling holes, and the internal hole cutter can be used for turning large diameter internal holes, making the processing more flexible.

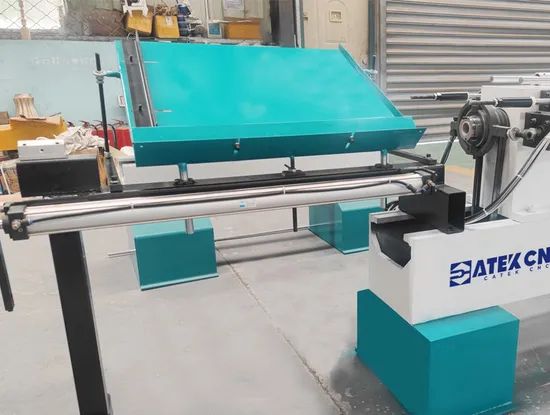

The multi-cylinder linkage automatic feeding device can be freely adjusted according to the length of the processed product and is easy to use.
The loading tray is adjustable and can hold up to 800mm wooden sticks. Multiple wooden sticks can be placed at one time. The material can be loaded automatically and the whole material can be fed in at one time. The material can be processed and cut automatically. Both round and square materials can be processed automatically.

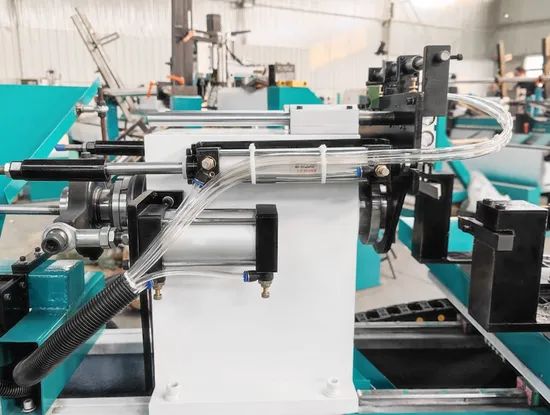

Automatic tensioning structure, after the wood feeding position is in place, the pneumatic device automatically fixes the material without manual operation.
CK-1000TC multi-function CNC system, English operation interface, friendly interface display, simple operation, novices can easily get started, support various CAD/CAM type software, use G code to run, support DXF/NC/TXT/DBP and other formats.
With external four-axis pulse handwheel, XYZA axis can be freely adjusted, tool calibration and axial movement are more convenient.
The central automatic lubrication and oil injection maintenance system regularly performs comprehensive lubrication and maintenance on the transmission parts of the machine to avoid untimely manual lubrication.

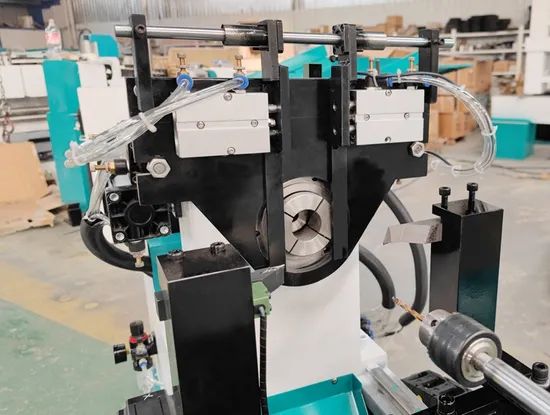

The fully automatic pneumatic spring chuck clamps the material and does not deform during high-frequency use. The tail uses a cylinder push ring bearing to drive the chuck to tighten and loosen.The internal three-layer metal pull tube structure can work 24 hours a day, which greatly improves the processing efficiency.
Optional automatic sanding wheels, high-speed air-cooled spindles, automatic tool changers and other devices can be installed to expand the machine's functions and meet various tasks such as sanding, drilling, grooving, and engraving.
SAMPLE DISPLAY
Products suitable for mass production and processing on CK-0615-A lathe: Handles:
wooden handles, drawer handles, rope skipping handles, pot handles, door handles and other handles. Crafts: vases, pen holders, cups, jars, bracelets, wooden boxes, nesting dolls, wooden lids, small bottles, nesting dolls, etc. Other products: chess, checkers, wooden toys, wooden figures, dolls, wooden balls, small crafts, wooden accessories, etc.
