Small LCD Module 1.83 Inch 240*280 Customizable TFT Color LCD Displays
2-99 Piece
$1.8100-999 Piece
$1.51000 Piece
$1.3Product information
High-quality Small LCD Module 1.83 Inch 240*280 Customizable TFT Color LCD Displays supplied by RONBO ELECTRONICS LIMITED. Bulk wholesale pricing ranges from $1.3 to $1.8 per Piece with a minimum order of 2 Piece. Inquiry for latest prices.
Package Gross Weight:
0.010kg
Response Time:
10ms
Package Size:
4.00cm * 4.00cm * 0.20cm
Production Capacity:
500000
HS Code:
901383010
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Customized:
Customized
Specifications
Package Gross Weight:
0.010kg
Response Time:
10ms
Package Size:
4.00cm * 4.00cm * 0.20cm
Production Capacity:
500000
HS Code:
901383010
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Customized:
Customized
Trade Term:
EXW
Viewing Angle:
IPS
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Model NO.:
RB0183A1302A
Specification:
Rohs
Trademark:
Ronbo
Origin:
Shenzhen, China
Payment Methods:
Support payments in USD
Display Technology:
TFT
Port Of Loading:
shenzhen port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-06-07
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
EXW
Port Of Loading:
shenzhen port
Certificates:
Business Registration Certificate, ISO 9001:2008, ROHS Certification, Subliencse Agreement
Product descriptions from the supplier

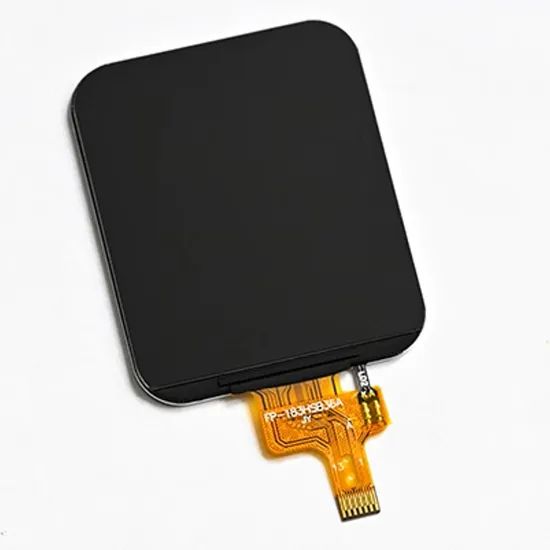

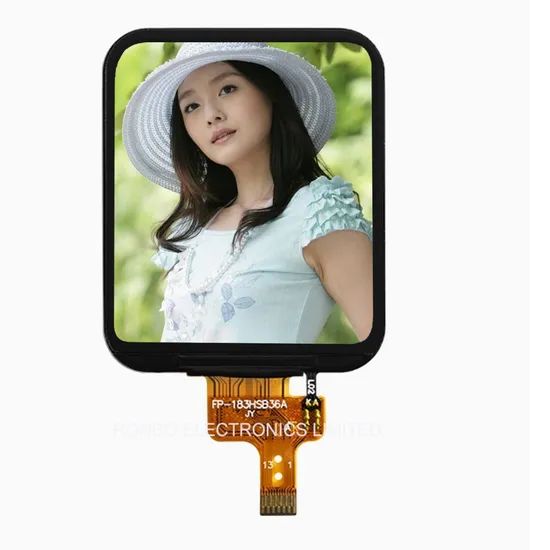

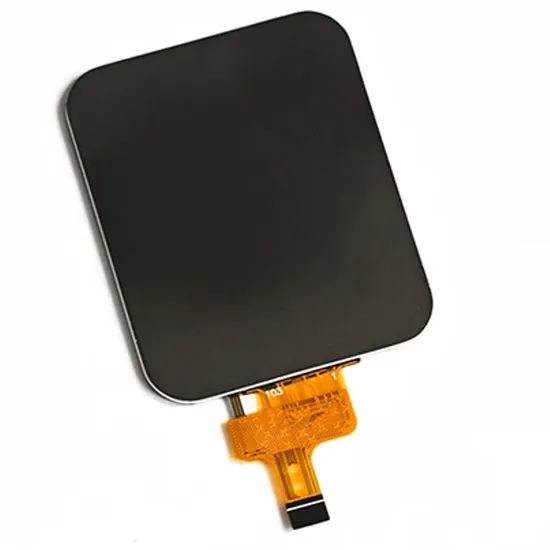

Small LCD Module 1.83 Inch 240*280 Customizable TFT Color LCD Displays
Product Specification:
* It is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a IPS LCD panel, driver IC, FPC and backlight unit.
* Backlight with different brightness is customized according to your request.
* Capacitive & Resistive touch panel/ Demo board is available for your option.
* It's Standard and Ready-made TN LCD Module.
* Experienced Team for Your Custom Solution.
* RoHS compliant.
| Model NO.: | RB0183A1302A |
| Screen Size: | 1.83" |
| Display type: | IPS |
| Resolution: | 240*280 |
| Viewing direction: | ALL |
| Module size(W*H*T): |
32.2*39.23*1.46mm |
| Active area (W*H): | 30.2*35.23mm |
| Brightness: | 750cd/m² |
| Backlight: |
1S3P=3 WLED If=40mA, Vf =3.2V |
| Contrast: | 350 |
| Interface: | SPI |
| Pin NO: | 13Pin |
| Pin pitch: | 0.3mm |
| Connecting type: | FPC ZIF Connector |
| Operating Temperature: | -20 ~ +70ºC |
| Storage Temperature: | -30 ~ +80ºC |
Relatived Products:
If you need other 1.83 Inch TFT LCD Display, please click Model No. below to review the details:
| Size | Model No. | RES | Module size (W*H*Tmm) |
Active Area (W*Hmm) |
Controller | Brightness & Backlight |
DISP | Interface | ASSY | TP | Remark |
| 1.83" | RB0183A1201A | 240*280 | 32.2*39.23*1.46 | 30.2*35.23 | NV3030B | 500 cd/m², 1S3P=3 WLED |
IPS | SPI, FPC 12Pin, Pitch:0.7mm |
Solder | -- | Backlight with Plastic Frame, FPC 8.3mm Length, |
| 1.83" | RB0183A1302A | 240*280 | 32.2*39.23*1.46 | 30.2*35.23 | ST7789T3 | 750 cd/m², 1S3P=3 WLED |
IPS | SPI, FPC 13Pin, Pitch:0.3mm |
CONN | -- | Backlight with Plastic Frame, FPC 16.4mm Length, |
| 1.83" | RB0183A1511A | 240*280 | 32.2*39.23*1.46 | 30.2*35.23 | NV3030B | 500 cd/m², 1S3P=3 WLED |
IPS | SPI, FPC 15Pin, Pitch:0.3mm |
CONN | -- | Backlight with Plastic Frame, FPC 15.6mm Length, |
| 1.83" | RB0183A2437A | 240*280 | 32.2*39.23*1.46 | 30.2*35.23 | ST7789P3 | 750 cd/m², 1S3P=3 WLED |
IPS | MCU 8Bit, FPC 24Pin, Connecter: OK-14GM024-04 |
CONN | -- | Backlight with Plastic Frame, FPC 37.8mm Length, |
Product Application:
| Telecommunication Devices | Telephone, Interphone, Smart Watch, Tablet PC, PDA |
| Consumer Products | Camera, DVD Player, Cell Phone, Game Player, Digital Photo Frame, E-Book Reader, Mp3 Player, MP4 PMP, Netbook PC |
| Technical Equipment | Elevator Controller, Industrial Machine, Security Monitor, POS |
| Office Automation | Printer, Scanner, Fax Machine, Desktop Monitor, Desktop Monitor |
| Home Appliances | Air-condition Display, Refrigerator, Video Doorbell, Smart Machine |
| Automobile Display | GPS, Protable Navigation, Video Player, Speedometer, Recorder |
| IT Products | Digital Video, Media Player, Advertising Machine |
| Medical Equipment | Ultrasound Machine, Medial Monitor, Medical Imaging, Healthcare |
Packaging & Shipping & Delivery
Packaging Details:
All the products are packed in right way to keep it safe.
For small sizes of products we use tray + carton,
For bigger sizes we use foam slot + carton.
we also design packages according to customers' requirements
Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.
For large quantity orders: we ship by buyer's cargo agent in China,
we can also ship by air or sea transportation by our cargo agent.
Delivery Details:
Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
Our Company:
Ronbo Electronics Ltd., is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT and IPS modules for a variety of industrial and consumable application. We are one of the leading display providers of character LCD modules, graphic LCD modules, TFT & IPS modules and Touch Screen. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.
Moreover, our company has passed ISO 9001 certifications as well as RoHS.
By adopting computerized management system, automatic manufacturing process and advanced technology, we can able to continuously supporting our worldwide customers with qualified and reliable products.
Our website:
Our Advantage:
| Rich experience | Good knowledge of the displays market to put together solutions that add value and provide a unique proposition for the client |
| Advanced Equipment | Full automatic FPC&IC bonding machine, film attaching machine, CNC machine, polish machine advance production equipment ensure product quality |
| Quality Assurance | Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment |
| Fast response | Quickly realize your customized ideas, and have a sample ready in short time |
| Low MOQ | Depends on product |
| Stable supply | 1~10 years supply period |
| Extensive range | Providing complete solution from Mono to Color LCD module, Optical bonding between display to cover glass as well as cover glass to touch screen |
| Large production capacity | Operation capacity 2KK monthly |
| Quality guarantee | RoHS compliant |
| Management | ISO 9001:2008, ISO 14001:2004 |
Product Line:
☆Clean Room class[email protected], Pressurec 0.8kgf
☆Antistatic floor, resistance : 1x10 ohm to 1x10 ohm
☆COG production lines: 4 .
☆Backlight production lines: 2 .
☆Existing machine capacity will be 1KK per month.
Quality Policy:
All materials we purchase for making any orders are high quality and RoHS compliant, and Control quality with ISO 9001:2008 management system.
Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment
Certification:
FAQ:
Q: How can I get some samples?
A: We don't provide free one, but we can have a discount when you reorder according to different quantity, and you will win at least 3% discount.
Q: What is the MOQ?
A: It depends on different products. Please keep in touch with sales to confirm the MOQ.
Q: How do you control quality?
A: All materials we purchase for making any orders are high quality and RoHS compliant, and Control quality with ISO 9001:2008, ISO 14001:2004 management system.
Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment0*480 CapacitouScreenCDsplay
Q: Does your product have any warranty?
A: Yes, we offer 12 months warranty for our products.
Q: What's your payment method?
A: Payment: T/T, Paypal, Western Union, etc.
For samples: payment in advance.
For mass production: 30% deposit and 70% balance before shipment.
Q: Do you offer custom solution?
A: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements.
