Small Parallel Co-Rotating Twin Screw Plastic Extruder for Laboratory Use
set
Negotiable
Product information
High-quality Small Parallel Co-Rotating Twin Screw Plastic Extruder for Laboratory Use supplied by Dongguan Miko Testing Instrument Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Output:
2-10kg/Hour
Specification:
2250mm*710mm*1850mm
Voltage:
3 Phases, 380V
HS Code:
8477201000
Automation:
Automatic
Certification:
CE
Origin:
China
Screw Rotation Direction:
Co-Rotating
Specifications
Output:
2-10kg/Hour
Specification:
2250mm*710mm*1850mm
Voltage:
3 Phases, 380V
HS Code:
8477201000
Automation:
Automatic
Certification:
CE
Origin:
China
Screw Rotation Direction:
Co-Rotating
Computerized:
Computerized
Customized:
Customized
Screw:
Double-Screw
Electromagnetic Heater:
Electromagnetic Heater
Trade Term:
FOB
Color:
Green and White or Customized
Inverter:
Inverter
Model NO.:
MK-8006TSL
Condition:
New
Transport Package:
Plywood Case
Raw Material:
Thermoplastics
Payment Term:
To be discussed
Cooling Mode:
Water Cooling
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
Certificate
Product descriptions from the supplier
SONA2024 2.2.1
Lab Twin Screw Extrusion Compounding Line

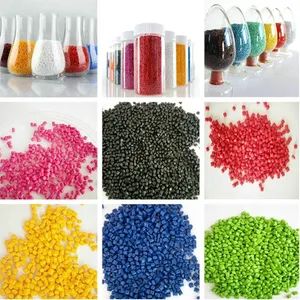

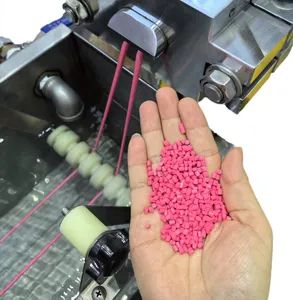

The lab twin-screw extrusion granulation line is a plastic processing equipment used in laboratories or for small-batch production. It processes plastic raw materials into granular products and mainly consists of a twin-screw extruder, die head, cooling unit, drying unit, and pelletizing unit. The cooling unit can be either air-cooled or water-cooled.
Twin-screw extruders are highly versatile and can be adapted to process different materials by changing different screw combinations. Examples include general-purpose plastics such as PP, PE, and PVC; engineering plastics such as PA, PC, and POM; and the preparation of various plastic alloys and blends.
Technical Specifications
(Custom configurations available upon request.)
Model No. | MK-8006TS-25 | ||
Control system | PLC control | ||
Capacity | 1-10kg/h(decide by formula ) | ||
Screw diameter | 21.7mm | ||
L/D | 40:1 | ||
Screw speed | 0-300rpm | ||
Motor | 4kW | ||
Cooling device | Air/water cooling (optional) | ||
Cutting device | Water strips/underwater cutting/hot cutting for option | ||
Consumption | 12kW | ||
Volume(W×D×H) | 3800mm*550mm*1650mm(include water tank and pelletizer) | ||
Weight | 550kg | ||
Power Supply | 3∮, AC380 | ||
Applications
A Laboratory Twin-Screw Extruder is a versatile, benchtop system designed for compounding, blending, and processing polymeric materials in research and small-scale production environments.
1. Material Development & Formulation:Developing new polymer compounds, masterbatches, and nanocomposites.
Enables precise mixing of polymers with additives (e.g., flame retardants, colorants, reinforcements like glass fibers or carbon nanotubes).
Ideal for optimizing formulations with minimal material consumption (as low as 20–50 g per batch).
Supports a wide range of materials: engineering plastics (PA, PC, PEEK), biopolymers (PLA, PHA), and elastomers (TPE, TPU).
Ideal for optimizing formulations with minimal material consumption (as low as 20–50 g per batch).
Supports a wide range of materials: engineering plastics (PA, PC, PEEK), biopolymers (PLA, PHA), and elastomers (TPE, TPU).
2. Process Simulation & Scale-Up Studies:Simulating production-scale extrusion conditions to predict processability.
Allows researchers to study the effects of screw speed, temperature profile, feed rate, and residence time on material properties.
Critical for scaling up from lab to industrial production (e.g., from 5 kg/h to 500 kg/h).
Data collected (torque, melt pressure, specific energy) guides parameter optimization for full-scale lines.
Critical for scaling up from lab to industrial production (e.g., from 5 kg/h to 500 kg/h).
Data collected (torque, melt pressure, specific energy) guides parameter optimization for full-scale lines.
3. Small-Batch & Pilot Production:Producing small quantities of specialty compounds for prototyping or low-volume products.
Perfect for manufacturing customized masterbatches, medical-grade compounds, or high-value materials (e.g., conductive polymers, biodegradable films).
Output rates typically range from 0.5 to 20 kg/h, bridging the gap between R&D and commercial production.
Output rates typically range from 0.5 to 20 kg/h, bridging the gap between R&D and commercial production.
4. Education & Academic Research:Hands-on training for students and researchers in polymer processing.
Demonstrates key principles of extrusion: melting, mixing, devolatilization, and reactive processing.
Used in university labs to study polymer rheology, morphology development, and structure-property relationships.
Used in university labs to study polymer rheology, morphology development, and structure-property relationships.
5. Reactive Extrusion & Polymer Modification:Conducting chemical reactions during extrusion (e.g., grafting, cross-linking, or polymerization).
Enables in-situ compatibilization of polymer blends (e.g., PP/PA alloys) or controlled degradation of biopolymers.
Requires precise temperature control and modular screw design to manage reaction kinetics.
Requires precise temperature control and modular screw design to manage reaction kinetics.
Why Choose Us?
After Sales Service
OEM/ODM capabilities
Competitive pricing & Reliable quality
Fast shipping & customs clearance support
Provide professional solutions according to clients' demands
Best services for pre-sales and after-sales
Competitive pricing & Reliable quality
Fast shipping & customs clearance support
Provide professional solutions according to clients' demands
Best services for pre-sales and after-sales
1. Standard Warranty: 12 months after the manufacturing date.
2. Extended Warranty: Optional coverage up to months.
3. Global Support: 24 hours technical assistance and spare parts supply.
4. Training: On-site or remote operation/maintenance training.
2. Extended Warranty: Optional coverage up to months.
3. Global Support: 24 hours technical assistance and spare parts supply.
4. Training: On-site or remote operation/maintenance training.
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 20–30 days; customized units require 45–60 days.
Q: Can I request a customized design?
A: Absolutely! We can provide customized production according to clients' requirements.
Q: How do you provide after-sales service?
A: We provide on-line service for the life-time of equipment, include training video and spare parts supply.
Q: How do I installation and debugging the equipment?
A: The equipment is whole set shipment. You only can connect it with power supply. We will provide you instruction munual and operation video.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, etc.).
A: Standard models ship in 20–30 days; customized units require 45–60 days.
Q: Can I request a customized design?
A: Absolutely! We can provide customized production according to clients' requirements.
Q: How do you provide after-sales service?
A: We provide on-line service for the life-time of equipment, include training video and spare parts supply.
Q: How do I installation and debugging the equipment?
A: The equipment is whole set shipment. You only can connect it with power supply. We will provide you instruction munual and operation video.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, etc.).
