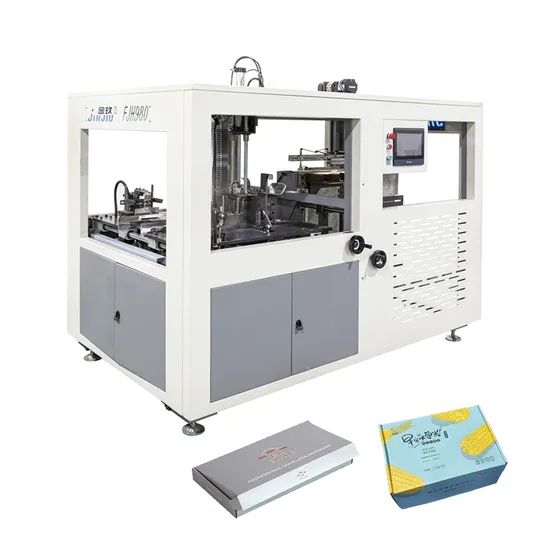

Small Size Kraft Paper Box Making Folding Machine for Snacks Packaging
1 Piece
$10,0001 Piece
$13,000Product information
High-quality Small Size Kraft Paper Box Making Folding Machine for Snacks Packaging supplied by Wenzhou Jinjiu Packing Machinery Co., Ltd.. Bulk wholesale pricing ranges from $10,000 to $13,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Speed:
(Pieces/Hours)
Glue Capacity:
10L
Specification:
2250*1550*2100mm
Package Size:
250.00cm * 160.00cm * 220.00cm
Production Capacity:
30-55 PCS/Min
Power:
380V / 50Hz
Air Source:
50 Litre/Min
Package Gross Weight:
660.000kg
Specifications
Speed:
(Pieces/Hours)
Glue Capacity:
10L
Specification:
2250*1550*2100mm
Package Size:
250.00cm * 160.00cm * 220.00cm
Production Capacity:
30-55 PCS/Min
Power:
380V / 50Hz
Air Source:
50 Litre/Min
Package Gross Weight:
660.000kg
Automatic Grade:
Automatic
Type:
Carton Packaging Machinery
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Application:
Commodity, Machinery & Hardware, Textile, Alcohol, Toy, Chemical, Apparel, Gifts & Arts, Dining, Medical, Food
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Driven Type:
Electric
After Sales Service Provided:
Engineers Available to Service Machinery Overseas
Trade Term:
FOB, EXW, CIF, CFR
Model NO.:
JFH-980
Trademark:
Jinjiu
Payment Methods:
Support payments in USD
Payment Term:
T/T
Transport Package:
Wooden Case
Port Of Loading:
ningbo, shnaghai
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2014-07-02
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T
Preferred Trade Term:
FOB, EXW, CIF, CFR
Port Of Loading:
ningbo, shnaghai
Certificates:
AQLM, AUDITED SUPPLIER, Business license, CE, Registration certificate
Product descriptions from the supplier
JFH-980Fully Automatic Aircraft Box Forming Machine
USEAGE:
Fully automatic aircraft paper box forming machine This machineis mainly used for aircraft box fully automatic forming machines,and is widely used for packaging boxes of clothing, handicrafts,daily necessities, electronics, electrical appliances, and hardwarestandard parts.

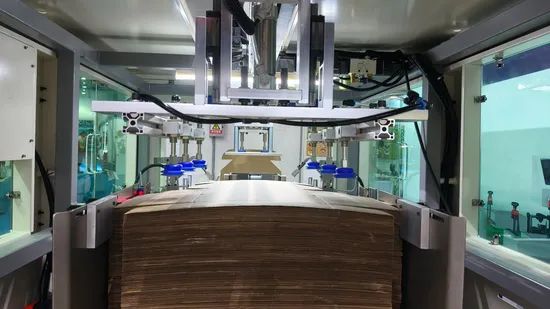

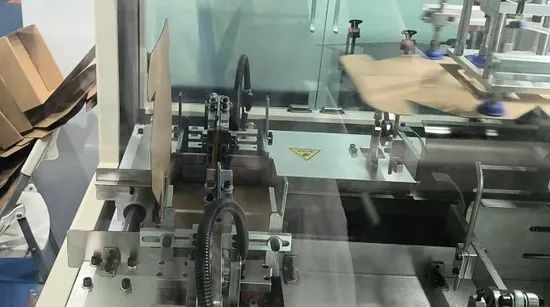

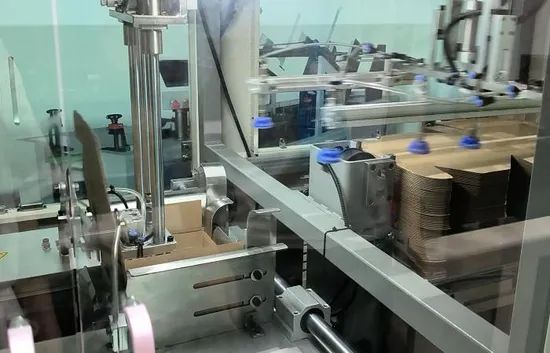

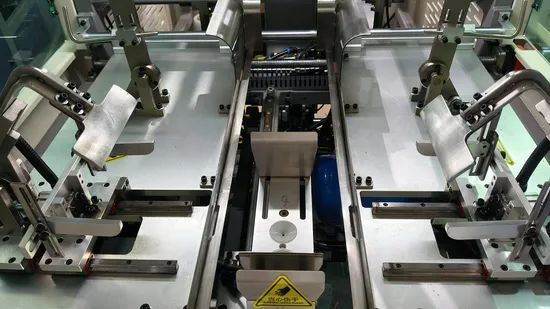

Machine details
TECHNICAL PARAMETERS
| Thickness of cardboard |
Min. size | 1.5mm |
| Max. Size | 3mm | |
| Power | 380V/50Hz | |
| Noise | ≤60dB | |
| Speed | 900-1600pcs/hour | |
| Total power | 3kw | |
| Machine weight | 400kg | |
| Dimensions | 2250*1320*2000mm(L*W*H) | |

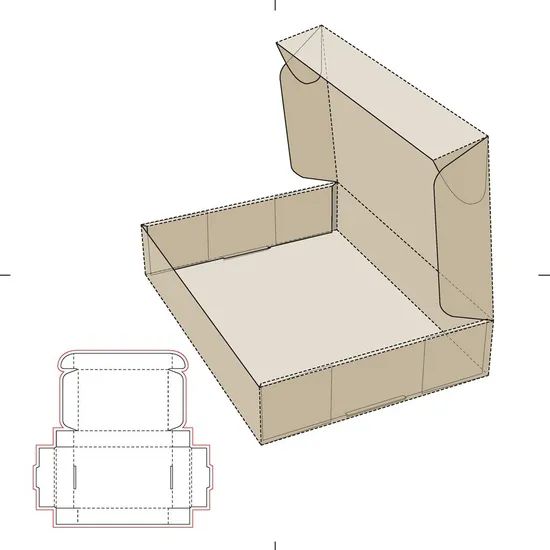

CARTON BOARD AND BOXES SPECIFICATIONG
| Carton box size Length=L Width=W Hight=H |
L: Min. Size | 180mm |
| L: Max. size | 350mm | |
| W: Min. Size | 120mm | |
| W: Max. size | 210mm | |
| H: Min. Size | 30mm | |
| H: Max. size | 120mm | |
| Package Size | A: Min. Size | 300mm |
| A: Max. Size | 800mm | |
| B: Min. Size | 330mm | |
| B: Max.Size | 800mm |
Fruit Box Sample
PERFORMANCE HIGHLIGHTS:
1. This machine is started with one button and fullyautomatic multi position molding
2. This machine adopts a vacuum pump suction structure,which eliminates the need for equipment shutdownand feeding during operation, greatly improvingproduction efficiency.
3. The PLC, servo motor, and photoelectric trackingsystem used in this machine are efficient, stable, andlow in product scrap rate. The operating system adoptsa human-machine interface, which is simple and easyto operate.
4. This machine is capable of continuously completingmultiple functions, greatly improving productionefficiency.
5. The entire machine adopts a steel frame structure, withaccessories made of aluminum, stainless steel, and steelplate structures. Surface spraying, hardening, andnickel plating treatment.
6. The entire machine occupies a small area, can be movedand placed in a position, has good stability, and thebox shape is beautiful.
7. The overall motion mode adopts a chain clampingtype, making the position more accurate.
Rigid Carton Boxes
SHIPMENT AND PACKING
