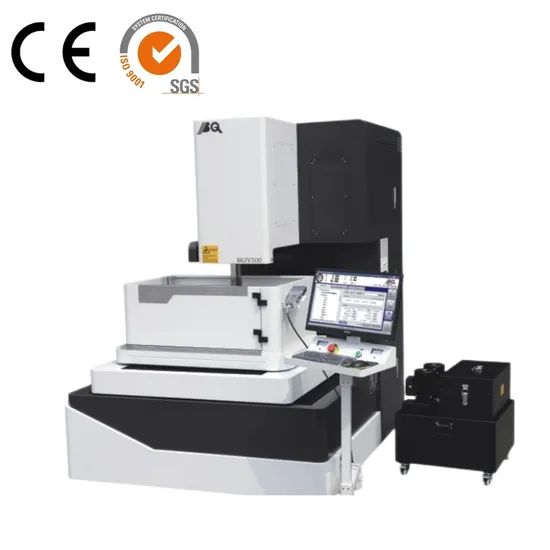

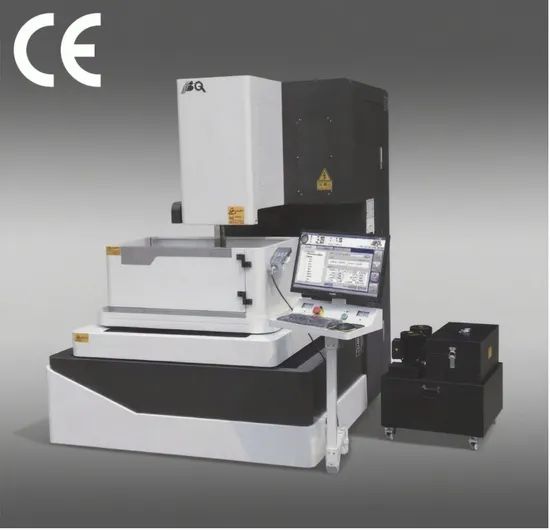

Smart Bqy500 CNC Wire EDM Machine with Remote Monitoring Function
1 SET
$10,0001 SET
$30,000Product information
High-quality Smart Bqy500 CNC Wire EDM Machine with Remote Monitoring Function supplied by Langfang Duobei Machinery Co., Ltd.. Bulk wholesale pricing ranges from $10,000 to $30,000 per SET with a minimum order of 1 SET. Inquiry for latest prices.
Processing Precision:
0.003mm
Specification:
1700x1200x2000mm
Package Size:
2050.00cm * 2000.00cm * 2350.00cm
Package Gross Weight:
2700.000kg
Production Capacity:
3000 Sets/ Year
Display:
5 Axis Digital Display
HS Code:
845630
Power Supply:
Anti-Electrolytic Power Supply
Specifications
Processing Precision:
0.003mm
Specification:
1700x1200x2000mm
Package Size:
2050.00cm * 2000.00cm * 2350.00cm
Package Gross Weight:
2700.000kg
Production Capacity:
3000 Sets/ Year
Display:
5 Axis Digital Display
HS Code:
845630
Power Supply:
Anti-Electrolytic Power Supply
Model NO.:
BQY500
Operation System:
Bq Operation System
Certification:
CE, ISO 9001, SGS
Numerical Control:
CNC/MNC
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Control Method:
Closed-Loop Control
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Transport Package:
Export Standard Wooden Packing
Trade Term:
FOB, CIF, CFR
Performance Classification:
High-End CNC Machine Tools
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Movement Method:
Linear Control
Application:
Metal
Process Usage:
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Z Axis Driven:
Motor Driven
Condition:
New
Motor:
Servo Motor
Port Of Loading:
Shanghai Port, Tianjin Port
Payment Methods:
Support payments in USD
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2021-03-26
Annual Revenue Amount:
Not specified
Numbers Of Employees:
3
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Shanghai Port, Tianjin Port
Certificates:
BV Certificate, SGS Certificate
Product descriptions from the supplier
Leading CNC Wire Cut EDM Manufacturer in China, Providing customer High End EDM machines with Fast cutting speed.
Customers spread in aerospace, electronic,aotomative, 3D printing, militay and defense,mold and tooling industry.
Products export to Europe, Russia, South America, Southeast Asia, Middle East, etc
Customers spread in aerospace, electronic,aotomative, 3D printing, militay and defense,mold and tooling industry.
Products export to Europe, Russia, South America, Southeast Asia, Middle East, etc
| Parameters | BQY400 | BQY500 | BQY630 |
| Worktable size(mm) | 735x460 | 836x550 | 935x645 |
| X/Y travel(mm) | 400x320 | 500x400 | 630x500 |
| Max workpiece size(mm) | 800x500 | 980x600 | 1140x730 |
| Max cutting thickness(mm) | 300 | 300 | 300 |
| Max load weight(kg) | 400 | 600 | 900 |
| U/V travel(mm) | 80x80 | 80x80 | 80x80 |
| Max cutting taper | ±15°/150mm | ±15°/150mm | ±15°/150mm |
| Control type | X Y Mitsubishi Servo, Z U V W 6 axis servo | X Y Mitsubishi Servo, Z U V W 6 axis servo | X Y Mitsubishi Servo, Z U V W 6 axis servo |
| Z transmission | Numerical control | Numerical control | Numerical control |
| Simultaneously Controlled axes | X Y U V-4 Axis | X Y U V-4 Axis | X Y U V-4 Axis |
| Wire diameter(mm) | Φ0.1-Φ0.2 | Φ0.1-Φ0.2 | Φ0.1-Φ0.2 |
| Wire speed (m/s) | 1-11.4 | 1-11.4 | 1-11.4 |
| Reposition accuracy(mm) | ≤±0.003 | ≤±0.003 | ≤±0.003 |
| Max cutting speed (mm2/min) | ≥300 | ≥300 | ≥300 |
| Roughness/Ra(um) | 0.7-1.4 | 0.7-1.4 | 0.7-1.4 |
| Water tank volume(L) | 120 | 120 | 120 |
| Filtering method | 3 layer filteration | 3 layer filtration | 3 layer filtration |
| Power supply | Three phase 380V AC/50Hz | Three phase 380V AC/50Hz | Three phase 380V AC/50Hz |
| Control system | Baqi system | Baqi system | Baqi system |
| Total power consumption(kw) | 1.6 | 1.7 | 1.8 |
| Max machining current(A) | 10 | 10 | 10 |
| Machine gross weight(kg) | 2100 | 2600 | 3600 |
| Machine size(mm) | 2100x1680x2100 | 2360x1870x2160 | 2398x1938x2180 |
| Top-bottom abnormity cutting | Yes | Yes | Yes |
Remote control and digital management function:
Our machine integrates data management, information mornitoring and other digital functions. Users can operate monitoring software on the remote servicer in real time to monitor each machines working status, processing progress, to arrange work high efficiently.
Standard Configuration:
1) Win10 System with BQ control System(own R&D),dual CPU

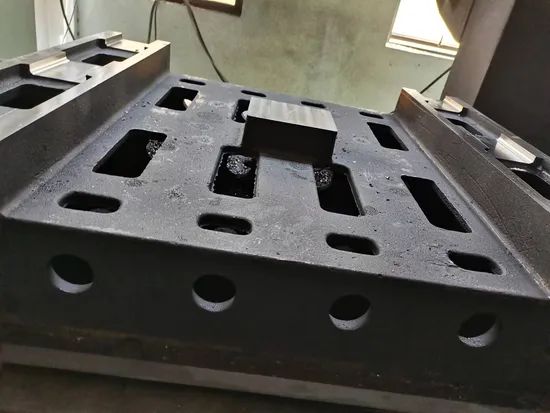

2) HT300 Casting Machine Body, two times heat treatment, prevent deformation effectively.
3) 5 axis digital display and Z axis motorized freely drive up and down.
4) Pulse and anti-electrolytic power supply, to enhance cutting accuracy.
5) Wire tension controlled by servo motor, much smart.
6) Mitsubishi servo for XY, XYUVZ 5 axis servo
7) THK / HIWIN /PMI high precision linear guide way
8) THK / HIWIN /PMI high precision ball screw
9) NSK, Japan /FAG, Germany bearings
6) Mitsubishi servo for XY, XYUVZ 5 axis servo
7) THK / HIWIN /PMI high precision linear guide way
8) THK / HIWIN /PMI high precision ball screw
9) NSK, Japan /FAG, Germany bearings
10) Japan PANASONIC converter.
11) PHILIPS Industrial Computer
12) Automatic center lubrication system.
12) Automatic center lubrication system.
System functions:
BQ series medium wire cut EDM adopts computer control, X,Y,U,V,4 axis simultaneously controlled, the discharge parameter can be automatic selected and control. It is programmed with internationally universal ISO code.The main system functions are as following:
| mirror machining | proportionally scaling |
| conventional taper cutting | top-bottom abnormality cutting |
| single-stage machining | 4 axis simultaneously cutting |
| program editing | automatic wire radius compensation |
| automatically machining condition convert | simulation check |
| return halfway | pitch compensation |
| automatic edge finding | automatic center finding |
| wire alignment | graphic real time tracking and check |
| subprogram calling | unmanned processing(power-off after finishing) |
| back to the origin point and suspension point | wire feeding speed adjustment |
Full travel reposition accuracy ≤ ±0.003mm
Measured by Laser Interfermeter.
- Reverse error : 0.0009mm
- System deviation: 0.0016mm
- Average deviation: 0.0015mm
- Accuracy: 0.0016mm
- Repeatability: 0.0009mm
- R+(single repeatability): 0.000mm
- R-(single repeatability): 0.000mm
- A+(single accuracy): 0.0016mm
- A-(single accuracy): 0.0014mm

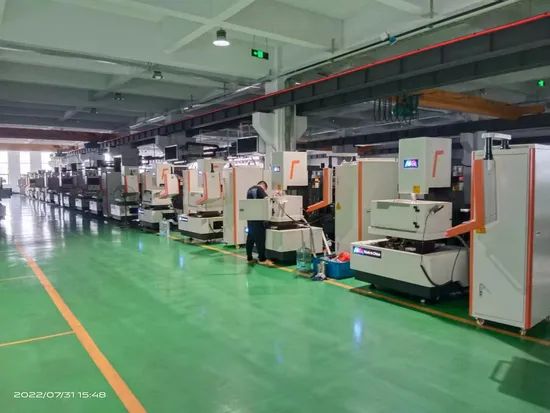

Delivery 3000 sets a year:
Contact us for more details, you will get reply within 24 hours .
