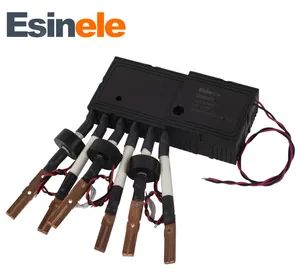

Smart Metering Components UC3 100A Single 3 Phase Meter Latch Relay with Mini Body
Pieces
Negotiable
Product information
High-quality Smart Metering Components UC3 100A Single 3 Phase Meter Latch Relay with Mini Body supplied by YUEQING EASTING TRADING CO.,LTD.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Package Gross Weight:
1.000kg
Package Size:
10.00cm * 10.00cm * 10.00cm
Production Capacity:
1000000/Year
Switching Current:
100A
Specification:
116*52*28 mm
Number Of Pole:
2
Phase:
3
Contact Form:
3A/3b
Specifications
Package Gross Weight:
1.000kg
Package Size:
10.00cm * 10.00cm * 10.00cm
Production Capacity:
1000000/Year
Switching Current:
100A
Specification:
116*52*28 mm
Number Of Pole:
2
Phase:
3
Contact Form:
3A/3b
HS Code:
8536411090
Coil Voltage:
9-48VDC
Electricity Type:
Ac
Contact Material:
Agsno2
Transport Package:
Box, Carton
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Model NO.:
ERM601C
Type:
Electric Parameter Relay
Action Principle:
Electromagnetic Type
Trademark:
Esinele
Trade Term:
FOB, CFR, EXW, CIF
Load:
High Power Relay
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Size:
Miniature
Port Of Loading:
Ningbo Port, Shanghai Port
Protective Characteristics:
Sealed Relay
Coil Type:
Single Coil and Double Coil Optional
Payment Methods:
Support payments in USD
Origin:
Zhejiang, China
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-08-17
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CFR, EXW, CIF
Port Of Loading:
Ningbo Port, Shanghai Port
Product descriptions from the supplier
ERM601C
Characteristic:
120A three sets of contacts switching simultaneously, auxiliary contact can be added.
Only impulse excitation needed, both for single and double coil.
Low power consumption.
Custom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt
4KV dielectric strength between coil and contacts
RoHS compliant
Outline dimensions:(116x52x28) mm
Characteristic:
120A three sets of contacts switching simultaneously, auxiliary contact can be added.
Only impulse excitation needed, both for single and double coil.
Low power consumption.
Custom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt
4KV dielectric strength between coil and contacts
RoHS compliant
Outline dimensions:(116x52x28) mm
ERM601C
Characteristic:
120A three sets of contacts switching simultaneously, auxiliary contact can be added.
Only impulse excitation needed, both for single and double coil.
Low power consumption.
Custom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt
4KV dielectric strength between coil and contacts
RoHS compliant
Outline dimensions:(117x52x28) mm
Characteristic:
120A three sets of contacts switching simultaneously, auxiliary contact can be added.
Only impulse excitation needed, both for single and double coil.
Low power consumption.
Custom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt
4KV dielectric strength between coil and contacts
RoHS compliant
Outline dimensions:(117x52x28) mm
| Contact Specification | |
| Dimensions(mm) | 117×52×28mm |
| Contact Form | 3A/3B |
| Contact Material | Silver Alloy |
| Max Switching Current(Anti-load) | 120A |
| Max Switching Voltage | 250V AC |
| Max Switching Power | 30000V A |
| Wight | 320g |
| Coil Specification | |||||
| Rated Coil Voltage | 9VDC | 12VDC | 24VDC | 48VDC | |
| Rated Coil Voltage | Single Coil (±10%Ω) |
32 | 58 | 230 | 920 |
| Double Coil (±10%Ω) |
16 | 29 | 115 | 460 | |
| Power Consumption | Single Coil 2.5W;Double Coil 5.0W | ||||
| Pick-up Voltage | ≤75% Rated Coil Voltage | ||||
| Drop-out Voltage | ≤75% Rated Coil Voltage | ||||
| Max. Applicable Voltage | ≤120% Rated Coil Voltage | ||||
| Pick-up Time(At Rated Voltage) | ≤50ms | ||||
| Drop-out Time(At Rated Voltage) | ≤50ms | ||||
| Bounce Time | ≤2ms | ||||
| Characteristics | ||
| Ambient Temp | -40~+70ºC | |
| Ambient Humidity | ≤75% Annually average | |
| Anti-vibration | 10~55Hz, 0.5mm (Double Amplitude) | |
| Anti-shock | 98m/s2, 11ms | |
| R.H. | 45%~85% | |
| Contact Resistance | ≤2.0mΩ(1A/6VDC) | |
| Insulation Resistance | 1000MΩ (500VDC) | |
| Dielectric Strength | Between Contacts | 2000VAC 50/60Hz(1 Minute) |
| Between Contact & Coil | 4000VAC 50/60Hz(1 Minute) | |
| Between Contact & Contacts | 6000VAC 50/60Hz(1 Minute) | |
| Life | Electrical Life | ≥1×104OPS |
| Mechanical Life | ≥5×105OPS | |
| External Diagram |
 |
| Wiring Diagram |
 |
1. Q: How about the payment terms?
Normally 30% deposit in advance. It can be discussed when we have friendly relationship.
2. How about Delivery time?
We can produce 200,000 pcs per month, large capacity. Normally, 15 days.
3. Q:Can I get a sample?
For sure, we are willing to supply samples free for quality checking.
4. Q : What's the price?
Reasonable price, competitive price, and acceptable prices, which are all based on good quality.
Any requirements or question,welcome to "Send"us an e-mail Now!!!
