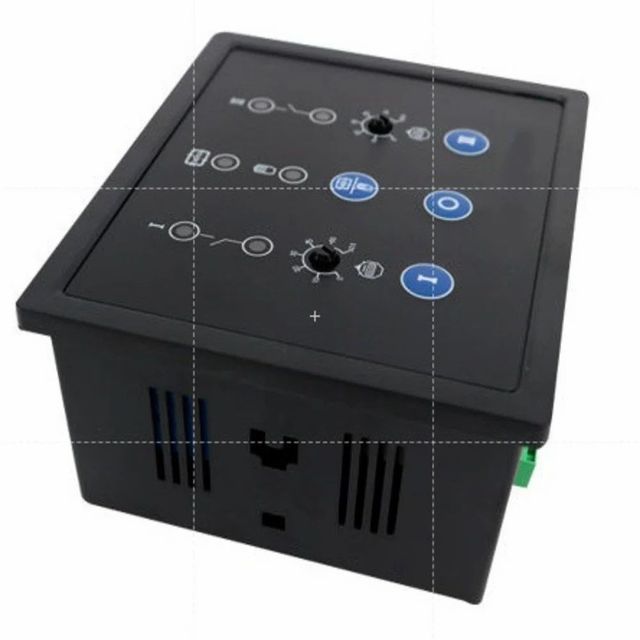

Smartgen HAT220A ATS Controller, Model No.: HAT200 Color Black Brand Smartgen Model No. HAT200 Voltage Level

We are engaged in the business of manufacturing, supplying and exporting the best quality HAT220A ATS Controller. This module is used to monitor two 3- phase AC supply. Its status is displayed by six LEDs. It is widely acknowledged among the customers for its high efficiency and durability. The entire range offered by us has amassed intense praise among the client base.

Other Details:

Controller detects multi-voltage conditions, such as 2ways-3phase voltage, 1phase voltage (could be 2 ways mains, 2ways gens, or 1mains-1gens), or 2ways-2phase voltage. Its performance and characteristics show as following:

• Realizing the computer programming control, can use computer to set abnormal voltage delay, switch priority, genset shutdown delay, the voltage correction and other functions, fully graphical interface operation. When programming by computer, the controller front panel must be opened, then use SG72 interface module (USB to LINK) via the PC test software. About PC software’s operation, please refer to “software manual of HAT220A/HAT240A”
• The voltage normal delay of #I or #II can be set (0~60) seconds and the start Genset delay can be set (0~90) seconds
• The voltage abnormal delay of #I or #II can be set (0~60) seconds and the stop Genset delay can be set (0~90) seconds
• “#I power supply priority”, “Auto/Manual”, “No priority” and “#II power supply priority” can be set via controller front panel and in order to ensure #I power supply priority power on or #II , or no priority power on for examine and repair
• Design of 2 ways N line isolate
• LEDs mounted on front panel can clearly show ATS running status
• The #I and #II power supply transfer relay’s (CLOSE 1#, CLOSE 2#) output contactor capacity is 16A 250VAC/16A 28VDC, and they belong to passive contractor, can be directly used in driving switch to transfer
• The Genset start relay’s (GENS START) output contactor capacity is 7A 250VAC/7A 28VDC, and they belong to passive normally closed contacts
• Controller has strong ability for anti-electromagnetic interference, and very suitable for using in strong electromagnetic interference of complex environment
• Modular configuration design, Flame Retardant ABS plastic shell, inserted type connection terminals, small volume, compact structure with easy mounting and maintenance
