Solar Module Analyser PCE-PVA 100 Accuracy 99% Fuse F250 V, 12 A Degree_of_pollution 2 Battery_voltage 11.1 V Display 4.8" Lc
1 Piece
$2,101.48Product information
High-quality Solar Module Analyser PCE-PVA 100 Accuracy 99% Fuse F250 V, 12 A Degree_of_pollution 2 Battery_voltage 11.1 V Display 4.8" Lc supplied by Dhanbad Lab Instruments India Private Limited. Bulk wholesale pricing is $2,101.48 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Operating Temperature Range:
-20 ... 60 °c / -4 ... 140 °f
Measuring Range Current:
0 ... 12 A
Measuring Range Voltage:
0 ... 60 V
Storage Rate:
0 ... 99 Minutes
Adjustable Photovoltaic Area:
0.001 ... 9999 M²
Temperature Coefficient:
0.1 % Of The Measuring Range / °c / °f At Temperatures 28 °c / 82 °f
Current Resolution Low Range:
1 Ma
Adjustable Irradiance:
10 ... 1000 W/m²
Specifications
Operating Temperature Range:
-20 ... 60 °c / -4 ... 140 °f
Measuring Range Current:
0 ... 12 A
Measuring Range Voltage:
0 ... 60 V
Storage Rate:
0 ... 99 Minutes
Adjustable Photovoltaic Area:
0.001 ... 9999 M²
Temperature Coefficient:
0.1 % Of The Measuring Range / °c / °f At Temperatures 28 °c / 82 °f
Current Resolution Low Range:
1 Ma
Adjustable Irradiance:
10 ... 1000 W/m²
Current Resolution High Range:
10 Ma
Mains Adapter Input:
100 ... 240 V Ac 50/60 Hz
Data Memory Capacity:
100 Measurements
Battery Voltage:
11.1 V
Weight:
1160 G / 2.6 Lbs, 1160 g
Mains Adapter Output:
15 V Dc / 3a
Degree Of Pollution:
2
Dimensions:
257 X 155 X 57 Mm / 10.1 X 6.1 X 2.2 In
Battery Capacity:
3400 Mah
Display:
4.8" Lc Display
Accuracy:
99%
Humidity Operating Conditions:
<75 % Rh, Non-condensing
Battery Life:
Ca. 400 Linear Measurements From 60 ... 0 V And 0 ... 12 A
Fuse:
F250 V, 12 A
Short Circuit Current Measurement:
Ishort
Model Name/Number:
PCE-PVA 100
Trade Term:
To be discussed
Payment Term:
To be discussed
Usb Interface:
Usb Interface
Open Voltage Measurement:
Vopen
Current Accuracy High Range:
±1 % ±(1 % Of Ishort ±0.09 A)
Current Accuracy Low Range:
±1 % ±(1 % Of Ishort ±9 Ma)
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2020
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier

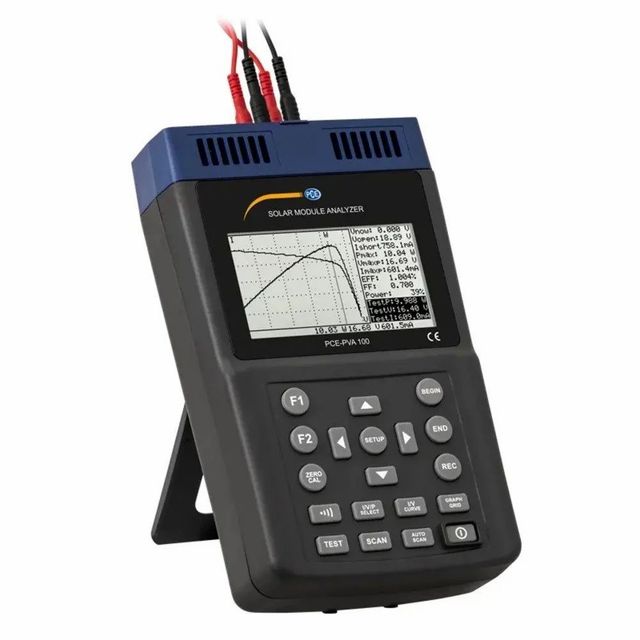

Photovoltaic meter with a measuring range of 0 ... 12 A DC / USB interface / Data memory for 100 measured characteristics / 4.8" LCD display / Battery operation for approx. 400 measurements / Optionally with ISO calibration certificate
The photovoltaic meter is a useful tool to examine solar cells for their characteristics. With a DC voltage range of 0… 60V and a DC current range of 0… 12 A, the photovoltaic meter covers a large number of solar modules. The determined characteristic curves are saved directly on the solar module tester. Up to 100 measurements can be stored in the data memory of the photovoltaic meter. The stored measured values can then be read out and further processed on a PC with the associated software. In addition, it is possible to operate the photovoltaic meter completely via the software.

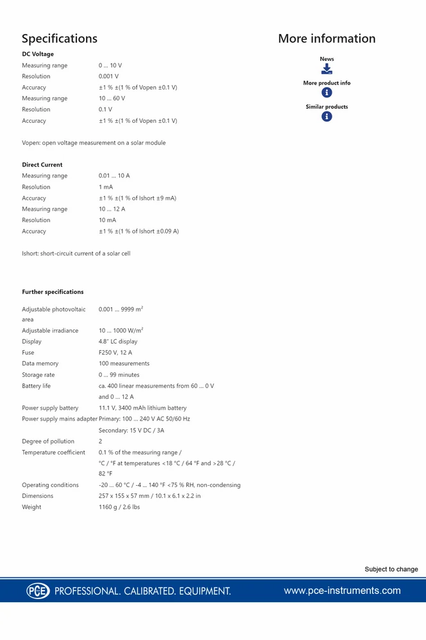

SPECIFICATION:
The photovoltaic meter is a useful tool to examine solar cells for their characteristics. With a DC voltage range of 0… 60V and a DC current range of 0… 12 A, the photovoltaic meter covers a large number of solar modules. The determined characteristic curves are saved directly on the solar module tester. Up to 100 measurements can be stored in the data memory of the photovoltaic meter. The stored measured values can then be read out and further processed on a PC with the associated software. In addition, it is possible to operate the photovoltaic meter completely via the software.
SPECIFICATION:
| Vopen: open voltage measurement on a solar module | |
| Direct Current | |
| Measuring range | 0.01 … 10 A |
| Resolution | 1 mA |
| Accuracy | ±1 % ±(1 % of Ishort ±9 mA) |
| Measuring range | 10 … 12 A |
| Resolution | 10 mA |
| Accuracy | ±1 % ±(1 % of Ishort ±0.09 A) |
| Ishort: short-circuit current of a solar cell | |
|
Further specifications |
|
| Adjustable photovoltaic area |
0.001 … 9999 m² |
| Adjustable irradiance | 10 … 1000 W/m² |
| Display | 4.8“ LC display |
| Fuse | F250 V, 12 A |
| Data memory | 100 measurements |
| Storage rate | 0 … 99 minutes |
| Battery life | ca. 400 linear measurements from 60 … 0 V |
| and 0 … 12 A | |
| Power supply battery | 11.1 V, 3400 mAh lithium battery |
| Power supply mains adapter |
Primary: 100 … 240 V AC 50/60 Hz |
| Secondary: 15 V DC / 3A | |
| Degree of pollution | 2 |
| Temperature coefficient | 0.1 % of the measuring range / |
| °C / °F at temperatures <18 °C / 64 °F and >28 °C / 82 °F | |
| Operating conditions | -20 … 60 °C / -4 ... 140 °F <75 % RH, non-condensing |
| Dimensions | 257 x 155 x 57 mm / 10.1 x 6.1 x 2.2 in |
| Weight | 1160 g / 2.6 lbs |
