South Total Station N3 Total Station Origin China Model NO. N3 Trademark FOIF Warranty 1 Year Horizontal Line 1 HS Code 9015800090
1-4 PC
$2,4005 PC
$2,300Product information
High-quality South Total Station N3 Total Station Origin China Model NO. N3 Trademark FOIF Warranty 1 Year Horizontal Line 1 HS Code 9015800090 supplied by Shanghai Magcach Technology Co., Ltd.. Bulk wholesale pricing ranges from $2,300 to $2,400 per PC with a minimum order of 1 PC. Inquiry for latest prices.
Horizontal Line:
1
After Sales Service:
1 Year
Warranty:
1 Year
Production Capacity:
100000 Per Year
Specification:
55*32*41cm
HS Code:
9015800090
Origin:
China
Trade Term:
FOB, EXW
Specifications
Horizontal Line:
1
After Sales Service:
1 Year
Warranty:
1 Year
Production Capacity:
100000 Per Year
Specification:
55*32*41cm
HS Code:
9015800090
Origin:
China
Trade Term:
FOB, EXW
Trademark:
FOIF
Model NO.:
N3
Transport Package:
Plastic Case Internal and Carton External
Port Of Loading:
Shanghai Port
Payment Term:
T/T
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2019-03-26
Annual Revenue Amount:
Not specified
Numbers Of Employees:
3
Preferred Payment Term:
T/T
Preferred Trade Term:
FOB, EXW
Port Of Loading:
Shanghai Port
Product descriptions from the supplier

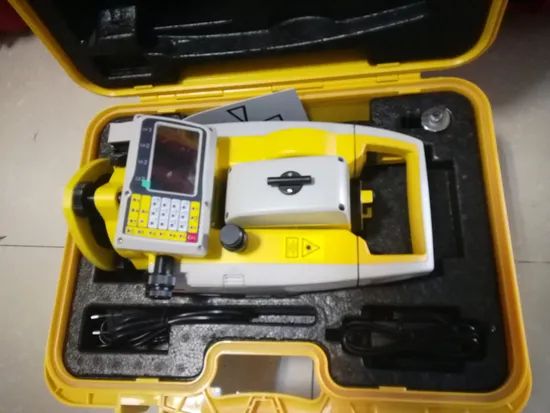

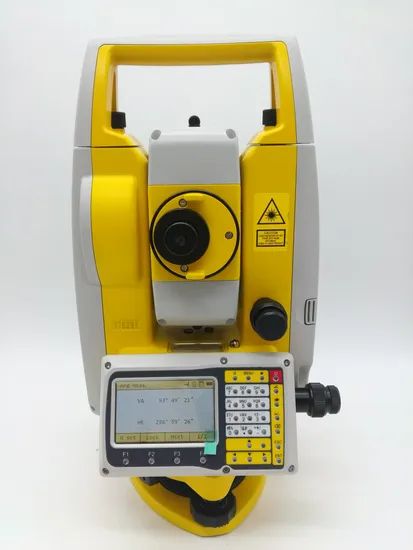

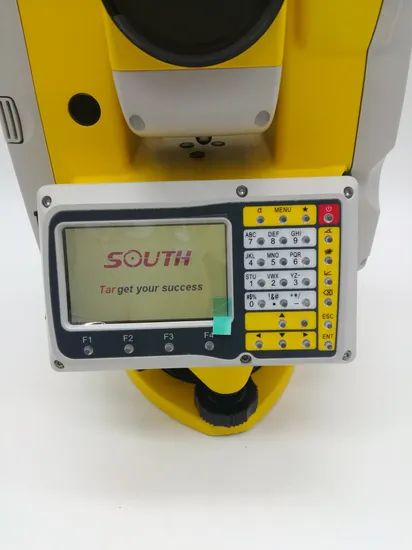

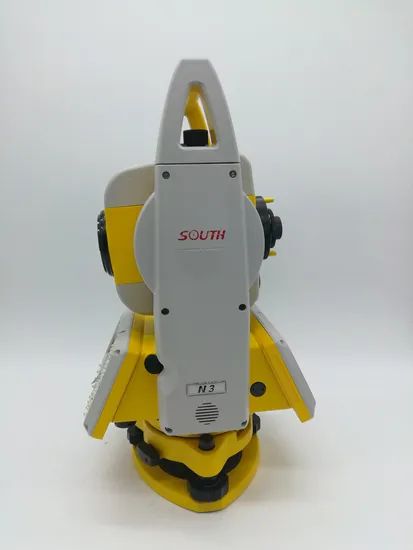

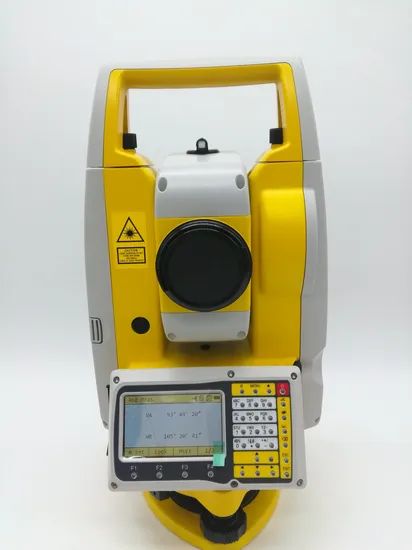

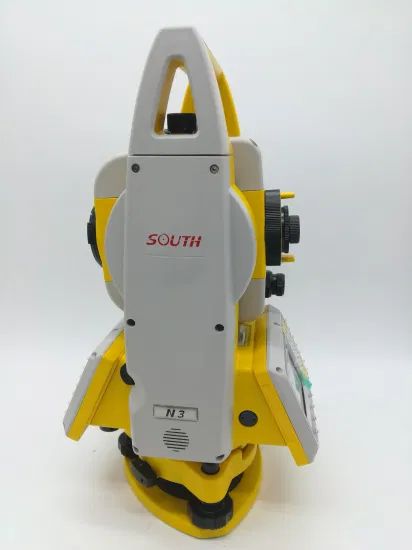

South Total Station N3 Total Station reflectorless Distance Meter 1000m
SPECIFICATIONS
|
|
Reflectorless
|
1000m
|
|
Single Prism
|
5000m
|
|
|
Accuracy: Non Prism
|
3+2ppm
|
|
|
Accuracy: Prism
|
2+2ppm
|
|
|
Sheet
|
3+2ppm
|
|
|
Measurement Time
|
1.2s In Fine
|
|
|
0.2s In Tracking
|
||
|
Atmospheric Correction
|
Manual Input, Auto Correction
|
|
|
Prism Constant
|
Manual Input, Auto Correction
|
|
|
Temperature Correction
|
Sensor Reading
|
|
|
Distance Reading
|
Max: 99999999.999m Min: 1mm
|
|
|
|
Accuracy
|
2"
|
|
Method
|
Absolute, Continuous
|
|
|
Disk Diameter
|
79mm
|
|
|
Detection Method
|
V: Dual, H: Dual
|
|
|
Angle Reading
|
Min: 1"
|
|
|
Telescope
|
|
Erect
|
|
Tube Length
|
152mm
|
|
|
Effective Aperture
|
45mm (EDM 47mm)
|
|
|
Magnification
|
30x
|
|
|
Field Of View
|
1°30"
|
|
|
Resolving Power
|
3"
|
|
|
Minimum Focus Distance
|
1.5m
|
|
|
Reticle Illumination
|
10 Brightness Levels
|
|
|
Keyboard And Display
|
Keyboard
|
Alphanumeric 30 Keys
|
|
Display
|
3.0 Inches, Color Touch TFT
|
|
|
Resolution
|
240*400 dpi
|
|
|
Position
|
Face 1, Face 2
|
|
|
Operation System
|
Operation System
|
None
|
|
Processor
|
None
|
|
|
Memory
|
16000 Points
|
|
|
|
WIFI
|
None
|
|
Bluetooth
|
BT4.0
|
|
|
SD Card
|
None
|
|
|
Serial Port
|
None
|
|
|
Mini USB
|
None
|
|
|
Mirco USB
|
None
|
|
|
USB Flash Disk
|
Yes
|
|
|
SIM Card
|
None
|
|
|
Compensator
|
System
|
Liquid, Dual Axis
|
|
Working Range
|
±6'
|
|
|
Accuracy
|
1"
|
|
|
|
Laser Plummet (Default)
|
|
|
Accuracy
|
±1.5mm @1.5m
|
|
|
Laser Brightness
|
5 Levels Adjustable
|
|
|
Wavelength
|
635nm
|
|
|
Laser Class
|
Class 2
|
|
|
Laser Power
|
0.5mW
|
|
|
Optical Plummet (Optional)
|
|
|
|
|
Erect
|
|
|
Magnification
|
3x
|
|
|
Focusing Range
|
0.5m --
|
|
|
Field Of View
|
5"
|
|
|
Accuracy
|
-
|
|
|
Battery
|
Type
|
Lithium
|
|
Voltage
|
7.4V
|
|
|
Operating time
|
8 hours
|
|
|
Vial
|
Plate Vial
|
30" /2mm
|
|
Circular Vial
|
8' /2mm
|
|
|
General
|
IP Rate
|
IP54
|
|
Temperature Range
|
-20°C -- +50°C
|
|
|
Dimension
|
206*200*353mm
|
|
|
Weight
|
6.0kg
|
|
|
Others
|
Trigger Key
|
|
|
Others
|
Auto Height Optional
|
Company Profile:
Shanghai Magcach Technology Co., LTD is a company to provide professional surveying instruments and surveying service,and with rich experience in export trade business . Our company mainly line in all kinds brand survey instruments ,such as GNSS RTK GPS,Total Station, Auto/digital level, Optical /electronic theodolite, Laser distance meter, Handheld GPS,Surveying accessories, Surveying software, etc.
And we keep good cooperation with surveying accessory manufacturer. The Company's employees graduated from engineering.
We not only supply the Survey Instruments and accessories to our products ,we also supply the after sale and the technic Support. We will take the responsibility on the quality of our products .
Packing :
Payment Support :
Delivery&transport:
FAQ:
1. How long we guarantee quality?
Our main products like Auto level, Theodolite, Total Station,Gnss rtk have one year warranty, And we sure the products will be free from maintenance within warranty period If it is not man-made damage,and accessories with 6 month warranty
2.What can you buy from us?
Auto/digital level, Theodolite, Total Station,Gnss rtk GPS,Laser level,Laser distance meter, Echo sounder and surveying accessories like tripods,ranging pole,prism,bipod,staff ,etc
3.What repair service can we provide if products get problem?
For small issues like missing or damaged part, key board, please send us the photos, we will send the required part and related instructions to you for free;
For big issues in one year warranty like EDM board, main board issue. We could only ask you to send the instrument back to us. Normally we will have it fixed in 10-14 working days and send back to you. You and we shall take care of the corresponding shipping cost on each side. And the big issues out of one year warranty, the customer should be responsible for all the cost.
4,What payment term we support?
TT, Western union,Money Gram,Pay in cash ,Paying on Made In China Website as Assurance Trade.
5, How will we prepare before shipment?
All products will have been strictly quality checked in factory before sending out.Usually, we will send out the products within 3-5 working days after the payment confirmed and the buyer are responsible for the tax and/or duty charged by their country.
