Southtech Energy Saving Tempered Glass Manufacturing Machine Price Small Glass Tempering Furnace
Piece
Negotiable
Product information
High-quality Southtech Energy Saving Tempered Glass Manufacturing Machine Price Small Glass Tempering Furnace supplied by South Glass Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Installed Capacity:
300kVA, 450kVA, 500kVA, 750kVA
Min. Loading Dimension:
300mm*300mm
Glass Thickness:
4-12mm, 4-19mm
HS Code:
8475299000
Max. Loading Dimension:
According to Your Requirement
Trade Term:
FOB, CIF, CFR, EXW
Type:
Glass Tempering Furnace
Port Of Loading:
Guangzhou Port, Shenzhen Port, Foshan Port
Specifications
Installed Capacity:
300kVA, 450kVA, 500kVA, 750kVA
Min. Loading Dimension:
300mm*300mm
Glass Thickness:
4-12mm, 4-19mm
HS Code:
8475299000
Max. Loading Dimension:
According to Your Requirement
Trade Term:
FOB, CIF, CFR, EXW
Type:
Glass Tempering Furnace
Port Of Loading:
Guangzhou Port, Shenzhen Port, Foshan Port
Structure:
Horizontal
Payment Term:
LC, T/T
Suitable For:
Low-E Glass, Ordinary Flat Glass, Ultra-Clear Glas
Condition:
New
Heating Method:
Radiant Heating
Trademark:
SOUTHTECH
Origin:
Shunde, China
Transport Package:
in Container, in Standard Export Package
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2006-03-10
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Guangzhou Port, Shenzhen Port, Foshan Port
Certificates:
CE
Product descriptions from the supplier

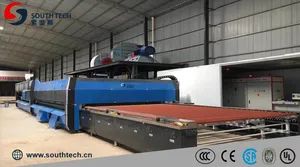

Southtech Passing Flat Glass Tempering Machinery (TPG series)
1. Equipped With Advanced Heating Banlance System, Tpg Increased The Endothermic Efficiency Of The Glass By The Way Of Heat-Balance;
2. It's Benefical To The Uniformity Of Heating The Glass Through The Even Heating;
3. The Quantity Of The Dust Inside The Furnace Can Be Reduced Due To The Inner Cleading Structure Of The Furnace Body;
4. Low-Temperature Teachniques Can Be Used To Produce High-Quality Glass;
Technical Parameters
Model above mainly In: Glass of high grade industrial instrumentation, lamp, home appliance, flat tempered glass.
Model above mainly In:Thin Flat Tempered Laminated Glass Of High Grade Domestic Appliances, Interior Decorations, Automobile, Trains, Ships, Architecture, LOW-E glass.
---------------------------------------------------------------------------------------------------------------------------------------------
Energy Saving
1. We are able to reduce the voltage transformer capacity by 200-300 KVA compared to other competitors and this is due to the newest power-adjustment technology. There is no power loss or waste in our machine system.
2. Thanks to our unique passing -section, that insure a higher quality tempered glass, with a 60% energy savingin the quenching section.
3. We have a technology that supply low air pressure, but with big air flow.
The system features several heating sections, enabling precise control over each heating component. This allows for consistent temperature distribution and balanced heating performance,with a tolerance of +/-2C.
5. Our convection system can be shut down at any time. It does not require to be running all the time.
We employ a top-and-bottom air convection setup featuring an integrated air recovery loop. This setup enables tempering of every variety of low-e glass. The technology we use isstable, highly efficient, energy saving, and zero maintenance cost.
The upper heating components lack a protective cover to enhance heat efficiency and reduce energy use, whereas the lower heaters feature a cover to safeguard the system should the glass crack.
8. Zero speed of blower in stand-by mode for the next glass feed.
9. We use a high quality insulation material and structure system. This improves the heat efficiency and prevents heat leakage.
10. After daily operation, the machine can be fully powered off without leaving the heater active. The next day, a 20-minute warm-up is all that's required to reach 700°C.
11. We apply a rational convection structure that ensures no side heat leak, and so no risk on the roller bearings.
12. We can use a water-cooling technology.
Brand
1. Southtech is one of the Top 5 in the world and Top 3 in China.
2. Annual sales in around 180 machines, and of those, more than 110 with convection system.
3. Southtech is responsible for the maintenance and after sales service around the world.
4. Our equipment is currently used in China in the production of high-performance glass.
5. The majority of our clients have come again to buy our machines.
Communication
Southtech values customer relations and makes getting in touch simple. Our team members are reliable and committed. We look after you. We back you up. Always there for you.
2. We are opened to any suggestion. We listen, and we modify when need.
Conclusion:
We deliver a customized and tailor-made machine. We also offer standard machines.
Others can say or claim whatever they want. But at Southtech, YOU SEE, and You can believe. Performance is irrelevant to complications.
We have a machine that will help you grow your business.
1. Equipped With Advanced Heating Banlance System, Tpg Increased The Endothermic Efficiency Of The Glass By The Way Of Heat-Balance;
2. It's Benefical To The Uniformity Of Heating The Glass Through The Even Heating;
3. The Quantity Of The Dust Inside The Furnace Can Be Reduced Due To The Inner Cleading Structure Of The Furnace Body;
4. Low-Temperature Teachniques Can Be Used To Produce High-Quality Glass;
Technical Parameters
| Model | Maximum loading area (mm) | Minimum glass size (mm) | Thickness (mm) |
Production (m2/h) | Transformer (KVA) |
| TPG2515 | 2500×1500 | 250×100 | 2.85-15 | 48 | ≥300kva |
| TPG4012 | 4000×1250 | 300×100 | 2.85-15 | 64 | ≥400kva |
| TPG4015 | 4000×1500 | 300×100 | 2.85-19 | 77 | ≥500kva |
| TPG5015 | 5000×1500 | 300×100 | 2.85-19 | 96 | ≥600kva |
Model above mainly In: Glass of high grade industrial instrumentation, lamp, home appliance, flat tempered glass.
| Model | Maximum loading area (mm) | Minimum glass size (mm) | Thickness (mm) |
Production (m2/h) | Installed Capacity |
| TPG4220 | 4000×2000 | 300×100 | 4-19 | 110 | ≥500kva |
| TPG3624 | 3600×2400 | 300×100 | 4-19 | 110 | ≥500kva |
| TPG4224 | 4200×2400 | 300×100 | 4-19 | 123 | ≥600kva |
| TPG5024 | 5000×2400 | 300×100 | 4-19 | 153 | ≥700kva |
| TPG6030 | 6000×3000 | 350×100 | 5-19 | 238 | ≥1100kva |
Model above mainly In:Thin Flat Tempered Laminated Glass Of High Grade Domestic Appliances, Interior Decorations, Automobile, Trains, Ships, Architecture, LOW-E glass.
---------------------------------------------------------------------------------------------------------------------------------------------
Energy Saving
1. We are able to reduce the voltage transformer capacity by 200-300 KVA compared to other competitors and this is due to the newest power-adjustment technology. There is no power loss or waste in our machine system.
2. Thanks to our unique passing -section, that insure a higher quality tempered glass, with a 60% energy savingin the quenching section.
3. We have a technology that supply low air pressure, but with big air flow.
The system features several heating sections, enabling precise control over each heating component. This allows for consistent temperature distribution and balanced heating performance,with a tolerance of +/-2C.
5. Our convection system can be shut down at any time. It does not require to be running all the time.
We employ a top-and-bottom air convection setup featuring an integrated air recovery loop. This setup enables tempering of every variety of low-e glass. The technology we use isstable, highly efficient, energy saving, and zero maintenance cost.
The upper heating components lack a protective cover to enhance heat efficiency and reduce energy use, whereas the lower heaters feature a cover to safeguard the system should the glass crack.
8. Zero speed of blower in stand-by mode for the next glass feed.
9. We use a high quality insulation material and structure system. This improves the heat efficiency and prevents heat leakage.
10. After daily operation, the machine can be fully powered off without leaving the heater active. The next day, a 20-minute warm-up is all that's required to reach 700°C.
11. We apply a rational convection structure that ensures no side heat leak, and so no risk on the roller bearings.
12. We can use a water-cooling technology.
Brand
1. Southtech is one of the Top 5 in the world and Top 3 in China.
2. Annual sales in around 180 machines, and of those, more than 110 with convection system.
3. Southtech is responsible for the maintenance and after sales service around the world.
4. Our equipment is currently used in China in the production of high-performance glass.
5. The majority of our clients have come again to buy our machines.
Communication
Southtech values customer relations and makes getting in touch simple. Our team members are reliable and committed. We look after you. We back you up. Always there for you.
2. We are opened to any suggestion. We listen, and we modify when need.
Conclusion:
We deliver a customized and tailor-made machine. We also offer standard machines.
Others can say or claim whatever they want. But at Southtech, YOU SEE, and You can believe. Performance is irrelevant to complications.
We have a machine that will help you grow your business.
