Special Packaging 1W 690nm C-Mount Laser Diode Module
Pieces
Negotiable
Product information
High-quality Special Packaging 1W 690nm C-Mount Laser Diode Module supplied by Hangzhou Brandnew Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
10000piece/Year
Warranty:
12 Months
Power:
1W
Specification:
1kg
Test Temperature:
25
Operating Voltage:
2V
Wavelength:
690nm
Trademark:
Brandnew
Specifications
Production Capacity:
10000piece/Year
Warranty:
12 Months
Power:
1W
Specification:
1kg
Test Temperature:
25
Operating Voltage:
2V
Wavelength:
690nm
Trademark:
Brandnew
Laser Type:
C-Mount Laser Diode
Model NO.:
CM690DL1
Transport Package:
Carton
Workng Mode:
Cw
Express:
DHL
Trade Term:
FOB, EXW, CFR, CIF, FCA
Color:
Gold
Feature:
High Efficiency
Key Selling Points:
Long Service Life
After Sales Service Provided:
Online Support
Lift Time:
Over 10000 Hours
Machinery Test Report:
Provided
Function:
Radar Application
Payment Term:
T/T, PayPal, Western Union, Small-amount payment
Origin:
Zhejiang
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2001-01-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, EXW, CFR, CIF, FCA
Port Of Loading:
Not specified
Certificates:
CE, ISO9001
Product descriptions from the supplier
Product Description
Item Name
Special Packaging 1W 690nm C-Mount Laser Diode Module
Feature

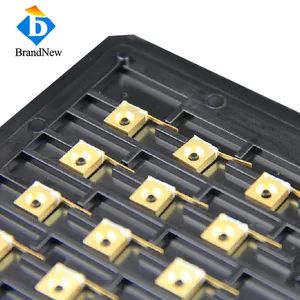

Product Photo
Item Name
Special Packaging 1W 690nm C-Mount Laser Diode Module
Feature
1W output power at 690nm center wavelength
Different wavelength and power you can choose
Customized service is provided
Quick Delivery 1-2 working weeks, 12 months warranty
Outstanding quality, good after service
Application
Material processing: Curing of metals, annealing.
Medical technology: Esthetics, dermatology.
Industry: Pumping source for fiber lasers and solid-state lasers.
Science and research: Pumping source for fiber lasers.
Different wavelength and power you can choose
Customized service is provided
Quick Delivery 1-2 working weeks, 12 months warranty
Outstanding quality, good after service
Application
Material processing: Curing of metals, annealing.
Medical technology: Esthetics, dermatology.
Industry: Pumping source for fiber lasers and solid-state lasers.
Science and research: Pumping source for fiber lasers.
Product Photo
|
Optical
|
Typical Value
|
|
Center Wavelength λ
|
690nm
|
|
Wavelength Tolerance
|
±5nm
|
|
Optical Power
|
1W
|
|
Slope Efficiency
|
1.1W/A
|
|
Electrical
|
|
|
Operating Current Lop
|
1.5A
|
|
Threshold Current Lth
|
0.5A
|
|
Operating Voltage Vop
|
2.2V
|
|
Power Conversion Efficiency
|
35%
|
|
Thermal
|
|
|
Operating Temperature
|
15~35ºC
|
|
Storage Temperature
|
-40~80ºC
|
|
Wavelength Temperature Coefficient
|
0.3nm/ºC
|
Delivery & Packing
Packing:
One set in a case(According to your request)
Delivery:
Normally 1-2 Weeks
FedEx,DHL Express, UPS, TNT
Payment Term:
T/T and Western Union, For your Choice
Return Policy:
Buyer Pay the Shipping Cost.
Why Choose Us
Why BrandNew Technology to be your partner?
(1). Higher reliability, performance, long lifetime, all kinds of models and cost-effective.
(2). Offer customized products, simplify your development processing, improve the stability of whole device and accelerate marketing.
(3). Volume manufacturing, many models in stocking
(4). Provide wavelength range from 450nm to 1550nm and a wide range of output power from mW to kW
(5).Professional technology support,24hours timely response.
(6). Door to door delivery with official express DHL
Certification
Company Profile
Founded in 2011, Professional Laser diode supplier,manufactures high-power diode lasers and systems in a wide range of output powers and wavelengths including laser chip, fiber coupled laser diode, single bar and high power diode laser array.Cooperated with Institute of semiconductors Chinese academy of sciences and Zhejiang University, Production space is 10000 Class Lab Clean Room with 2000 square meters. Turnover per year is more than 10M US dollars.
BrandNews strengths are in talent employees, quality engineering, process control, product development and volume manufacturing.
Our range of products gives this feeling to our customers who rapidly understand that our solutions help them save time in their RD photonic system and integration work.
Core Competency
Diode Packaging Beam Shaping
Reliability Testing Efficient Cooling
FAQ
Q1: What payment methods do you support?
A: T/T and Western Union, For your Choice
Q2: How long can I receive the package?
A: Normally 1-2 Weeks FedEx, DHL Express, UPS, TNT.
A: Normally 1-2 Weeks FedEx, DHL Express, UPS, TNT.
Q3: Do you offer guarantee for the products?
A: Yes, we offer 12 months warranty to this diode laser stack.
Q4: How about sample?
A: You can get a sample, but our sample is not free.
A: Yes, we offer 12 months warranty to this diode laser stack.
Q4: How about sample?
A: You can get a sample, but our sample is not free.
Q5: Are you trading company or manufacturer?
We are manufacturer with more than 11 years of experience, and also provide the technical solution to all customers.
Q6: How to Place an order?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions.
Thirdly customer confirms the order. Fourthly we arrange the production.
Q7: Have you Checked the product before delivery?
A: Yes, all of the products will be tested before delivery to ensure the good quality. Quality is our principle.
Q8: Is it a reliable company?
A: BrandNew, the laser diode company, manufactures high-power diode lasers and systems in a wide range of output powers and wavelengths including fiber-coupled, stack bar lasers and plug and play lasers.
Cooperated with Institute of semiconductors Chinese academy of sciences and also Zhejiang University,Today, over 60 technicians and 2 scientists,20 technicians are with PHD degree.BrandNew 's strengths are in talent employees, quality engineering, process control, product development and volume manufacturing.
We are manufacturer with more than 11 years of experience, and also provide the technical solution to all customers.
Q6: How to Place an order?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions.
Thirdly customer confirms the order. Fourthly we arrange the production.
Q7: Have you Checked the product before delivery?
A: Yes, all of the products will be tested before delivery to ensure the good quality. Quality is our principle.
Q8: Is it a reliable company?
A: BrandNew, the laser diode company, manufactures high-power diode lasers and systems in a wide range of output powers and wavelengths including fiber-coupled, stack bar lasers and plug and play lasers.
Cooperated with Institute of semiconductors Chinese academy of sciences and also Zhejiang University,Today, over 60 technicians and 2 scientists,20 technicians are with PHD degree.BrandNew 's strengths are in talent employees, quality engineering, process control, product development and volume manufacturing.
