Special Use Oil Country Lathe Machine for Pipe Threading Origin China Condition New Bed Width 550mm Model NO. Q-200 Trademark TIMEWAY
Piece
Negotiable
Product information
High-quality Special Use Oil Country Lathe Machine for Pipe Threading Origin China Condition New Bed Width 550mm Model NO. Q-200 Trademark TIMEWAY supplied by Zhengzhou Timeway Machine Tool Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Z Axis Travel:
2850mm
Distance Between Centers:
3000mm
X Axis Travelz:
420mm
Production Capacity:
500sets/Year
Bed Width:
550mm
Max. Swing Over Bed:
800mm
Certification:
CE, ISO 9001
Origin:
China
Specifications
Z Axis Travel:
2850mm
Distance Between Centers:
3000mm
X Axis Travelz:
420mm
Production Capacity:
500sets/Year
Bed Width:
550mm
Max. Swing Over Bed:
800mm
Certification:
CE, ISO 9001
Origin:
China
Trade Term:
FOB, CIF, CFR, EXW
Setting Mode:
Floor-type
Precision:
High Precision
Guide Rail:
Horizontal Guide Rail
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Automatic Grade:
Manual
Condition:
New
Model NO.:
Q-200
Port Of Loading:
Qingdao Port; Tianjin Port; Shanghai Port
Tool Holder:
Single-tool Holder CNC Lathe
Type:
Specialized Lathe
Trademark:
TIMEWAY
Transport Package:
Wooden Box
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2010-04-13
Annual Revenue Amount:
Not specified
Numbers Of Employees:
17
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao Port; Tianjin Port; Shanghai Port
Certificates:
CE
Product descriptions from the supplier
oil country lathe manual pipe threading lathe
This machine was designed for use in often harsh and demanding environment associated with OCTG industry and integrates decades of experience.This series lathes are mainly developed forthe turning of oil field pipe thread, it isnot only suitable for all kinds of pipe thread turning, but also can be used as ordinary lathe, suitable for processing complex shape of the shaft, disk parts,such as turning inner and outer cylindrical surface, conical surface, end face.Especially for multi-species, small batch of turning processing.
550mm width bed made of premium cast-iron, by ultrasonic frequency quenched and precision grinding by imported guideway grinder,excellent stability, high rigidity.
| SPECIFICATION | UNIT | Q-200 | Q-225 |
| Max. swing over bed | mm | 630/800 | 630/800 |
| Max. swing over cross slide | mm | 340/520 | 340/520 |
| Distance between centers | mm | 1500/3000 | 1500/3000 |
| Pipe threading range | mm | 50-193 | 50-220 |
| Bed width | mm | 550 | 550 |
| X-axis travel | mm | 320/420 | 320/420 |
| Z-axis travel | mm | 1350/2850 | 1350/2850 |
| Loading capacity | kg | 3000 | 3000 |
| Spindle bore | mm | 200 | 225 |
| Spindle speed steps | steps | CCW: 12/CW: 9 | CCW: 12/CW: 9 |
| Spindle speed | rpm | 20-480 | 20-480 |
| Chuck size | mm | 520 | 520 |
| Chuck type(manual) | - | 4-jaw | 4-jaw |
| Turret type(manual) | - | V4 | V4 |
| Tool shank size | mm | 32x32 | 30x30 |
| X-axis feed range(steps) | mm/r | 0.02-0.45(22) | 0.02-0.45(22) |
| X-axis rapid feed speed | mm/min | 2300 | 2300 |
| Z-axis feed range(steps) | mm/r | 0.07-1.33(26) | 0.07-1.33(26) |
| Z-axis rapid feed speed | mm/min | 4000 | 4000 |
| No. of Metric thread and range | mm | 1-14(24) | 1-14(24) |
| No. of inch thread and range | TPI | 28-2(40) | 28-2(40) |
| Tailstock quill diameter | mm | 100 | 100 |
| Tailstock quill taper | - | MT5 | MT5 |
| Tailstock quill travel | mm | 250 | 250 |
| Main motor power | kw | 11 | 11 |
| Rapid feed motor power | kw | 0.3 | 0.3 |
| Coolant motor power | kw | 0.125 | 0.125 |
| Machine dimensions(LxWxH) | mm | 3700/5200x1550x1550 | 3700/5200x1650x1550 |
| Machine weight | kg | 4300/5500 | 4500/5700 |

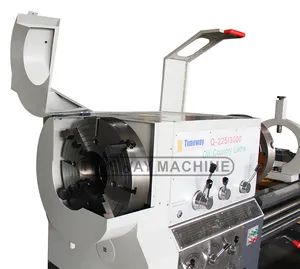

The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle.
Hardened and precision ground spindle adopts two support structure with high-precision grade bearings, to ensure spindle running stable.

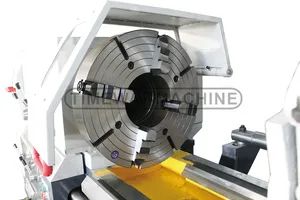

With large spindle bore and double hollow chuck on both ends of spindle for long pipes.
Equipped with taper turning attachment, can automatic feed turning inner an outer cone surface and threads.
Equipped with rapid feed motor for X/Z-axis quickly positioning, reduce operating intensity and machining assistance time, improve machining efficiency.
Wide spindle speed range for choosing reasonable speed, various steps feed speed for meeting different processing process and threads cutting.
|

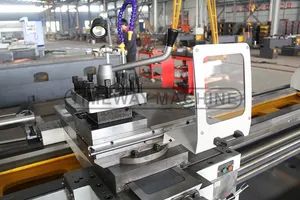

MAIN CONFIGURATION & ACCESSORIES: Big bore chuck (Front & Rear), Dead center, 4-station tool post, Taper turning attachment, Cooling system, Work lamp, Chip collecting plate, General tools, Leveling wedge and bolts, Operation manual (English). |
OPTIONAL CONFIGURATION & ACCESSORIES: 2 or 3-axis DRO, Chuck guard, Tool-post guard, Rear splash guard, Rear support for long pipe |
