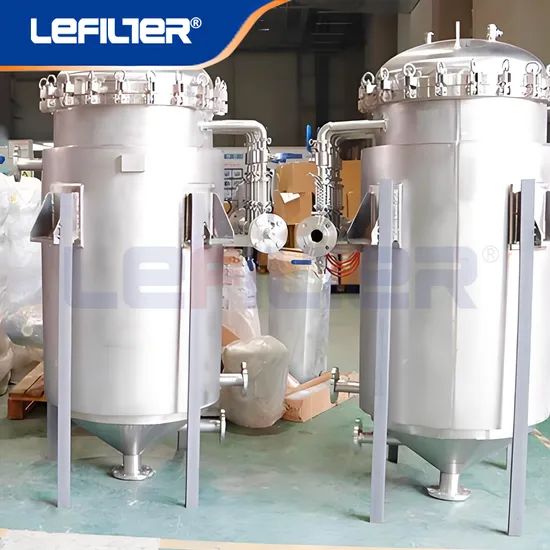

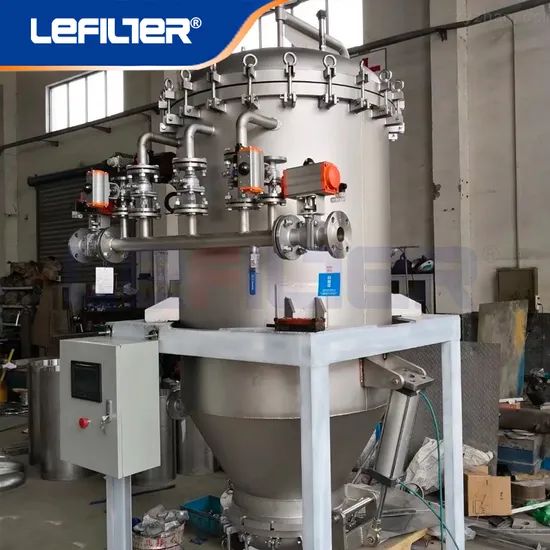

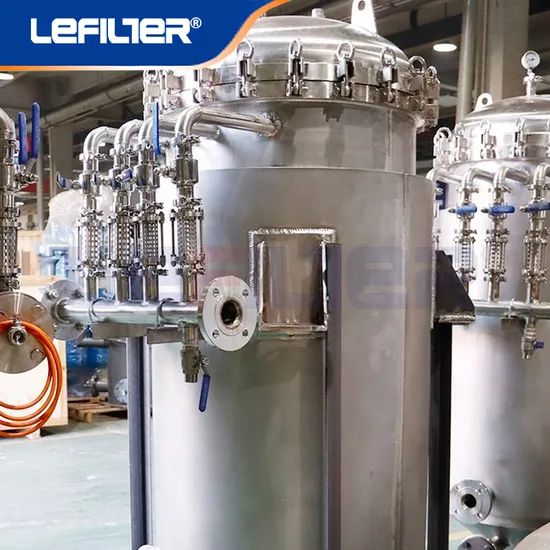

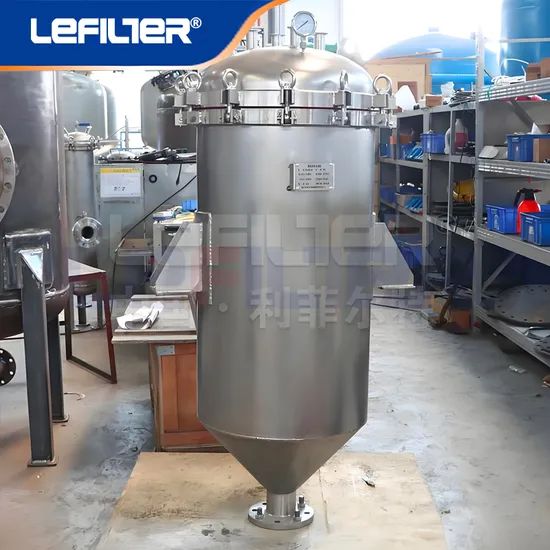

Stainless Steel Candle Filter for Ships Style Vertical Model NO. LF-80 HS Code 8421999090 Trademark lefilter Performance
1 Piece
$1,650Product information
High-quality Stainless Steel Candle Filter for Ships Style Vertical Model NO. LF-80 HS Code 8421999090 Trademark lefilter Performance supplied by Xinxiang Lifeierte Filter Corp. Ltd.. Bulk wholesale pricing is $1,650 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Filter Rating:
0.22–100 μm
Back Flushing Differential Pressure:
0.2–0.3 MPa
Standard Design Pressure Rating:
0.6 MPa, 1.0 MPa, 1.6 MPa, 2.0 MPa
Filter Area:
0.9–60 M2
Package Gross Weight:
1000.000kg
Production Capacity:
10000 Pieces a Month
Flow Rate Range:
10–300 M3/H
Housing Diameter:
250–2500 mm
Specifications
Filter Rating:
0.22–100 μm
Back Flushing Differential Pressure:
0.2–0.3 MPa
Standard Design Pressure Rating:
0.6 MPa, 1.0 MPa, 1.6 MPa, 2.0 MPa
Filter Area:
0.9–60 M2
Package Gross Weight:
1000.000kg
Production Capacity:
10000 Pieces a Month
Flow Rate Range:
10–300 M3/H
Housing Diameter:
250–2500 mm
Package Size:
300.00cm * 230.00cm * 300.00cm
HS Code:
8421999090
Performance:
Alkali
Certification:
CE, GS, RoHS, CB, LFGB
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Motive Force:
Electric power
Trade Term:
FOB, CFR, CIF, EXW
Payment Term:
LC, T/T, PayPal, Western Union, Cash
Model NO.:
LF-80
Filter Bag Material:
PP, Pet, Nylon, PPS, PVDF
Port Of Loading:
Qingdao,Tianjin,Shanghai,Xinxiang
Filter Element Material:
SS316L, PP, PVDF
Payment Methods:
Support payments in USD
Style:
Vertical
Transport Package:
Wooden Crate
Origin:
Xinxiang, China
Trademark:
lefilter
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-10-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union, Cash
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
Qingdao,Tianjin,Shanghai,Xinxiang
Certificates:
CE Certificate, Paten, Quality management system certification, SGS, Trademark registration certificate
Product descriptions from the supplier
Candle kieselguhr filter , Kieselguhr Candle Filter is used for filtering liquids such as beer, wine, etc. Filtration is carried out by means of filter diatomaceous earth washed on vertically mounted filter candles.
The diatomaceous earth filter is characterized by high filtration efficiency and economical operation. Depending on the composition of the filter layer, different levels of purity and flow of the filtered liquid can be achieved.
Thanks to the dosing pump, which adds diatomaceous earth during the process, the filter maintains a stable throughput, which determines its high performance. Cleaning (regeneration) of the filter is simple and fast, without the need to remove the pressure tank.
We are able to manufacture the size of the filter with a filtration area from 0.5 m2 to 100 m2 at the request of the customer.

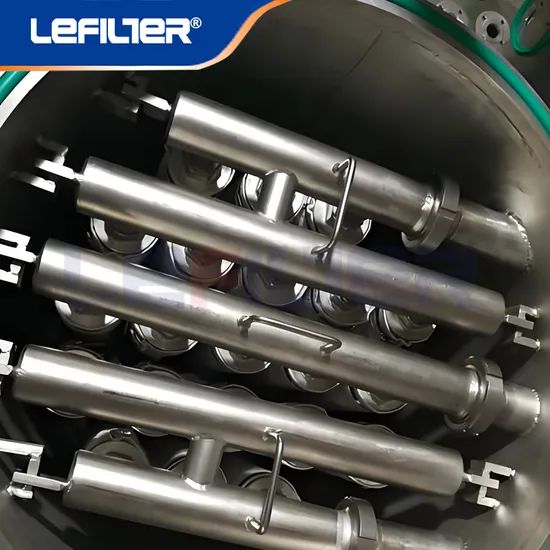

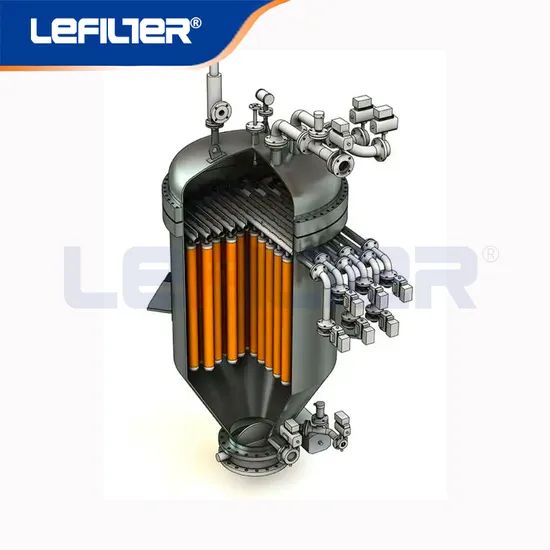

The filtering layer consists of a filtering material (most often diatomaceous earth), washed on a filtering support - a stainless steel candle of a special design, which ensures strength, durability and high efficiency of the equipment. Filter medium - suspension (most often diatomaceous earth) is prepared in a mixing tank. The base layer is applied to the candle using a fast coating method - with the help of a circulation pump, kieselguhr, which is in the liquid stream, sticks to the surface of the candle and thus forms a filter layer.
The liquid to be filtered with the help of a circulation pump flows through the filter layer, on which mechanical particles of turbidity are trapped. In order for the filtration cycle to be efficient (retaining a large amount of impurities) and economical, it is necessary to add a certain amount of kieselguhr to the candle during the process with a dosing pump. In this way, the sludge remains in a permeable state, which maintains long-term filtration efficiency. After filtration is completed, it is removed from the candles either manually or by semi-automatic hydraulic flushing. Kieselguhr filtration provides low operating costs per filtered liquid volume, high productivity and efficiency.
| Filter rating: | 0.22-100 μm (depends on filter elements and functional design) |
| Standard design pressure rating: | 0.6 MPa. 1.0 MPa. 1.6 MPa, 2.0 MPa, higher pressures are available upon request. |
| Filter bag matrial: | PP, PET, nylon, PPS, PVDF |
| Filter element material: | SS316L, PP, PVDF |
| Flow rate range: | 10-300m3/h |
| Filter area: | 0.9-60m2, other sizes are available upon request. |
| Housing diameter: | 250-2500mm |
| Back flushing differential pressure: | 0.2-0.3 MPa |
| Inlet & outlet size: | 2"-24" |
| Housing material: | SS304,SS316L,carbon steel or customized. |
| Inner corrosion protection: | PTFE,PVDF(suitable for strong acids and bases and other corrosion resistance requirements) |
| Cake discharge nozzle: | Soft seal or hard seal butterfly valve |
| Optional automation instrumentation: | Differential pressure/pressure transmitter, filter cake thickness detector, liquid level switch, flow transmitter, etc. |
Candle filters are mainly used to purify liquids with low solid content and recover expensive materials from them. They are widely used in the following industries.
Pharmaceuticals. Biological and plasma products filtration, compressed air and gas filtration, catalyst recovery filtration;
Food & beverage. Fermented beer filtration; edible oil bleaching & filtration, edible oil dewaxing or antifreeze oil filtration and catalyst recovery filtration, decolorizer and activated carbon filtration;
Oil & gas. Crude oil mercury removal & filtration, gas desulfurization, sulfur recovery, etc.
Environmental protection. Power station flue gas desulfurization, incineration waste gas disposal, waster toxic chemical precipitation & filtration, etc.
Mining. Catalyst recovery & filtration, aluminum recovery washing water filtration, filtration in lithium and nickel production.
