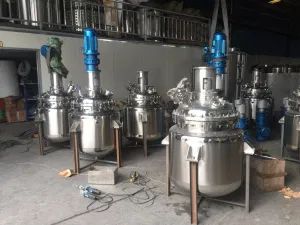

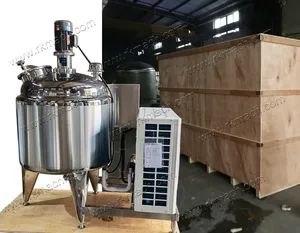

Stainless Steel Chemical Reactor 300L Reaction Kettle Tank Reactor
Piece
Negotiable
Product information
High-quality Stainless Steel Chemical Reactor 300L Reaction Kettle Tank Reactor supplied by Wenzhou Ranking Imp. & Exp. Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Working Pressure:
1~14bar
Mixing Speed:
20~3600rpm Optional
Production Capacity:
500PCS Per Month
Reactor Diameter:
500~1500mm
Capacity:
501-1000L
Specification:
50~5000Liter
HS Code:
847982
Origin:
China
Specifications
Working Pressure:
1~14bar
Mixing Speed:
20~3600rpm Optional
Production Capacity:
500PCS Per Month
Reactor Diameter:
500~1500mm
Capacity:
501-1000L
Specification:
50~5000Liter
HS Code:
847982
Origin:
China
Trade Term:
FOB, CIF, CFR, EXW
Heat Transfer Structure:
Jacketed
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Automatic Grade:
Manual
Condition:
New
Port Of Loading:
Ningbo Port, Shanghai Port
Heating:
Outside (Inside) Coil Heating
Tower Reactor Type:
Packed Tower Reactor
Drainage Type:
Pneumatic Valce
Pressure:
Positive
Trademark:
Ranking
Agitator Model:
Scattered Disc Agitator
Contact Part:
Ss316L / Ss304
Transport Package:
Wooden Case
Model NO.:
chemical reactor
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-02-04
Annual Revenue Amount:
Not specified
Numbers Of Employees:
8
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo Port, Shanghai Port
Certificates:
Our Business License
Product descriptions from the supplier
500L 1000Ltrs stainless steel reactor reaction kettle | reaction tank | tank reactor
Quantity: 1set
More details
1. Interior wall diameter and thicknessThis reactor is a tri-wall structure one, interior wall is made of stainless steel 304, with 8mm wall thickness. This interior wall has a diameter of 1400mm.
2. Jacketed diameter and thicknessOutside the interior wall, there is a jacket wall which is made of carbon steel Q235. This jacket diameter is 1500mm and thickness is 6mm.
3. Heating elements positionIn the space between the interior wall and the jacket, 15pcs electric heating elements, 4kw each, was installed vertically.
4. Controller for the heating elementsThis 15pcs heating elements will be controlled by 3 push buttons. Each push button will control 4pcs, 5pcs and 6pcs heating elements respectively. That means you can use 16kw, 20kw, 24kw separately for heating. Also, you can use 16kw and 20kw together, 16kw and 24kw together or 20 kw and 24kw together. You can also use all the 15pcs heating elements at the same time which makes 60kw in total.
5. Heating medium Thermal oil should be feed to the jacket before heating. The jacket has a capacity of 330Liter in total. The minimum oil level should be 100mm higher than the heating elements' top edge. Oil inlet is DN40 raised-face flange. It is about 38mm diameter.
6. Exterior wall diameter and thicknessThe exterior wall of this reactor is made of SS304 with 3mm wall thickness. This exterior wall diameter is 1600mm.
7. Dish end / top of the reactorThe top structure of the reactor is torispherical head, we usually call it a dish head. The bottom of the reactor also use the same dish head. The thickness of the interior dish head are both 8mm, the same thickness as the interior wall.
8. Water inlet holesIn the dish top, we have
9. motor and mixing speedon the dish top, there is a mixing motor which is 7.5kw, use 220V 60Hz 3phase electric power supply. The speed is 100rpm. Mechanical sealing being used to seal the tank and the shaft.
10. Manway on dish topThere is an manhole on the dish top, beside the motor.
11. Insulation material50mm rock wool insulation material will be inserted to the space between jacket and exterior wall.
12. Discharge valve and oil outlet pipeThere is a 89mm diameter discharge valve at the tank bottom. This valve use pneumatic control. It is a mushroom type valve. No liquid will be hold on the drainage pipe after drainage.
Beside the discharge valve, there is a 38mm diameter flange pipe act as oil discharge pipe. Before you feed oil in the oil jacket, never forget to close this pipe.
13. The floor area of the reactorNeed a place no less than 4 square meter.
14. Nitrogen and Hydrogen inlet and outlet nozzlesThere will be special nozzles for N2 and H2 inlet and outlet on the dish top of this reactor.
15. Product picture
16. Platform drawing for referenceWe suggest you use 100x48mm U steel to make the platform. The simplest platform is a like shown in this drawing.The hanging ear to ground have about 1500mm height.
From ground to the discharge valve need about 300 to 350mm space.
500L 1000Ltrs stainless steel reactor reaction kettle | reaction tank | tank reactor
A real sample for the platform
Also, you can use a much better platform if you would like to spend more money on it. Here is a sample for your reference.
500L electric heating reactor chemical reactor reaction tank price
(Stainless Steel 304 / 316L reactor kettle reaction Tank)
Due to stainless steel raw material market keep changing, the stainless steel reaction tank prices will change accordingly. we are unable to make a price list for our stainless steel reactors but we are ready to offer you the prices for any stainless steel reactor tanks and other 316L / 304 mixing equipments that you are looking for. So, please do not hesitate, sending your inquiry to our on line service team and get the latest price now.
500L 1000Ltrs stainless steel reactor reaction kettle | reaction tank | tank reactor
Quantity: 1set
| No | Item Content | Technical Parameter |
| 1 | Capacity | 500Ltrs~3000Liters |
| 2 | Electric Motor Power | Power: 2.2~11kw (3 phase) 220V, 60HZ Ex-proof type motor |
| Equipped with Cycloid Reducer | ||
| 3 | Inner shell | Material: SS304 Polished / SS316L |
| Steel Plate thickness:8 mm | ||
| 4 | Jacket | Material: Carbon steel Q235 coated with Anti-Rust Paint |
| Steel Plate thickness: 4 mm | ||
| 5 | Dished cover & end | SS304, 6mm in thickness, matte polished |
| 6 | Heating | Heating way: electric heating | steam heating reactor Electric heaters: 4kw*15pcs | steam |
| 7 | Rotation Speed | 80 RPM |
| 8 | Agitator | scraper type | Anchor type Agitator and Cowles Disck |
| 9 | Inner shell diameter | 1400mm |
| 10 | Jacket diameter | 1500mm |
| 11 | Over all diameter | 1600mm |
| 12 | Welding line | 1100 mm |
| 13 | Sealing way | Mechanical Seal |
| 14 | insulation | Rock wool as insulation material, outside the rock wool with 3mm SS304 plate. |
| 15 | Unit Price | USD **,*50 FOB Ningbo China |
| 16 | Remark | 1. With electric control panel 2. With standard Manhole, Sight Glass, charging holes, vent holes, sampling hole etc. 3. With oil inlet/outlet flanges at jacket. 4. Discharging from bottom of reactor. 5. With Thermometer hole. 6. with flow meter 7. with weighing cell 8. with PLC control 9. with vacuum pump from Gemany |
More details
1. Interior wall diameter and thicknessThis reactor is a tri-wall structure one, interior wall is made of stainless steel 304, with 8mm wall thickness. This interior wall has a diameter of 1400mm.
2. Jacketed diameter and thicknessOutside the interior wall, there is a jacket wall which is made of carbon steel Q235. This jacket diameter is 1500mm and thickness is 6mm.
3. Heating elements positionIn the space between the interior wall and the jacket, 15pcs electric heating elements, 4kw each, was installed vertically.
4. Controller for the heating elementsThis 15pcs heating elements will be controlled by 3 push buttons. Each push button will control 4pcs, 5pcs and 6pcs heating elements respectively. That means you can use 16kw, 20kw, 24kw separately for heating. Also, you can use 16kw and 20kw together, 16kw and 24kw together or 20 kw and 24kw together. You can also use all the 15pcs heating elements at the same time which makes 60kw in total.
5. Heating medium Thermal oil should be feed to the jacket before heating. The jacket has a capacity of 330Liter in total. The minimum oil level should be 100mm higher than the heating elements' top edge. Oil inlet is DN40 raised-face flange. It is about 38mm diameter.
6. Exterior wall diameter and thicknessThe exterior wall of this reactor is made of SS304 with 3mm wall thickness. This exterior wall diameter is 1600mm.
7. Dish end / top of the reactorThe top structure of the reactor is torispherical head, we usually call it a dish head. The bottom of the reactor also use the same dish head. The thickness of the interior dish head are both 8mm, the same thickness as the interior wall.
8. Water inlet holesIn the dish top, we have
- a 38mm diameter hole as water inlet
- a 25mm diameter safety valve
- a 25mm diameter vent to release the extra pressure in the tank
- a sight glass with 125mm diameter
- a sight light with 100 mm diameter
9. motor and mixing speedon the dish top, there is a mixing motor which is 7.5kw, use 220V 60Hz 3phase electric power supply. The speed is 100rpm. Mechanical sealing being used to seal the tank and the shaft.
10. Manway on dish topThere is an manhole on the dish top, beside the motor.
11. Insulation material50mm rock wool insulation material will be inserted to the space between jacket and exterior wall.
12. Discharge valve and oil outlet pipeThere is a 89mm diameter discharge valve at the tank bottom. This valve use pneumatic control. It is a mushroom type valve. No liquid will be hold on the drainage pipe after drainage.
Beside the discharge valve, there is a 38mm diameter flange pipe act as oil discharge pipe. Before you feed oil in the oil jacket, never forget to close this pipe.
13. The floor area of the reactorNeed a place no less than 4 square meter.
14. Nitrogen and Hydrogen inlet and outlet nozzlesThere will be special nozzles for N2 and H2 inlet and outlet on the dish top of this reactor.
15. Product picture
16. Platform drawing for referenceWe suggest you use 100x48mm U steel to make the platform. The simplest platform is a like shown in this drawing.The hanging ear to ground have about 1500mm height.
From ground to the discharge valve need about 300 to 350mm space.
500L 1000Ltrs stainless steel reactor reaction kettle | reaction tank | tank reactor
A real sample for the platform
Also, you can use a much better platform if you would like to spend more money on it. Here is a sample for your reference.
500L electric heating reactor chemical reactor reaction tank price
(Stainless Steel 304 / 316L reactor kettle reaction Tank)
Due to stainless steel raw material market keep changing, the stainless steel reaction tank prices will change accordingly. we are unable to make a price list for our stainless steel reactors but we are ready to offer you the prices for any stainless steel reactor tanks and other 316L / 304 mixing equipments that you are looking for. So, please do not hesitate, sending your inquiry to our on line service team and get the latest price now.
500L 1000Ltrs stainless steel reactor reaction kettle | reaction tank | tank reactor
