Stainless Steel Receiving Single Vacuum Hopper Loader for Granulators
Set
Negotiable
Product information
High-quality Stainless Steel Receiving Single Vacuum Hopper Loader for Granulators supplied by Guangdong Xiecheng Intelligent Equipment Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Storage Tank Volume:
24 L
Specification:
430*330*690 mm
Loading Distance:
5 M
Motor:
5HP/3.75kw
Conveying Capacity:
820 Kg/H
Certification:
CE
Origin:
China
Trade Term:
FOB, EXW, CFR, CIF
Specifications
Storage Tank Volume:
24 L
Specification:
430*330*690 mm
Loading Distance:
5 M
Motor:
5HP/3.75kw
Conveying Capacity:
820 Kg/H
Certification:
CE
Origin:
China
Trade Term:
FOB, EXW, CFR, CIF
Absorb Material:
Flakiness, Granules
Port Of Loading:
Gaosha Port
Usage:
Industry Plastic
Controller:
Microcomputer
Security Setting:
Overload Protection
Payment Term:
T/T, LC, D/P, PayPal, Western Union, Small-amount payment
Transport Package:
Wooden Case as Usual
Model NO.:
XCAL-7.5HP
Trademark:
XIECHENG
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2009-06-25
Annual Revenue Amount:
Not specified
Numbers Of Employees:
284
Preferred Payment Term:
T/T, LC, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
Gaosha Port
Certificates:
Others, ISO9001:2015
Product descriptions from the supplier

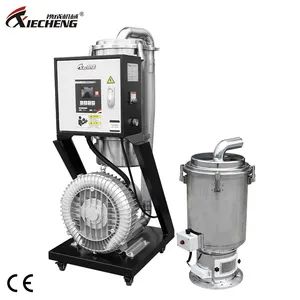

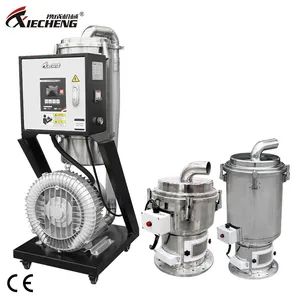

Stainless Steel Receiving Single Vacuum Hopper Loader For Granulators
Separate-Vacuum Hopper Loader
It is specially developed for the situation of large amount of materials conveying, long conveying distance and crushed materials and powder. High-power motor with enlarged hose and hopper.
| Model | XCAL-1.5HP | XCAL-2HP | XCAL-3HP | XCAL-5HP | XCAL-7.5HP | XCAL-10HP | XCAL-15HP | |
| Motor | 1.5 /1.1 | 2/1.5 | 3/2.2 | 5/3.75 | 7.5/5.5 | 10/7.5 | 15/11 | |
| Conveying Capacity (kg/hr) | 450 | 500 | 590 | 820 | 1000 | 1300 | 1500 | |
| Loading Distance (m) | 5 | 5 | 5 | 5 | 6 | 6 | 6 | |
| Static Wind Pressure (mm/H2O) | 2800 | 2800 | 2800 | 3200 | 4200 | 4500 | 4500 | |
| Storage Tank Capacity (L) | 7.5 | 7.5 | 12 | 24 | 30 | 30 | 30 | |
| Conveying Tube Inner Diameter(mm) | φ38 | φ38 | φ51 | φ51 | φ63 | φ63 | φ63 | |
| Specification of the Attached Hoses | φ38mm×4m 1pc | φ38mm×4m 1pc | φ51mm×10m 1pc | φ51mm×10m 1pc | φ63mm×12m 1pc | φ63mm×12m 1pc | φ63mm×12m 1pc | |
| Dimensions (cm) | Host | 50x42x109 | 69x52x144 | 99x85x142 | ||||
| hopper | 38x28x45 | 38x28x45 | 43x33x58 | 43x33x69 | 43x33x83 | |||
| Weight (kg) | Host | 65 | 65 | 68 | 90 | 135 | 140 | 168 |
| hopper | 6 | 6 | 6 | 10 | 12 | 12 | 12 | |
If you want more sizes, please contact us for details
CONTACT SUPPLIER
01 LCD Controller
▪ Industry leading LCD microcomputer controller with adjustable parameters, intuitive display and convenient operation;
▪Optional RS485 communication function to realize. remote automatic management.
▪Optional RS485 communication function to realize. remote automatic management.
02 Siemens Electric
SIEMENS electrical parts ensures stable running and liability of the machine.
03 Motor
Adopt induction high-pressure motor, which has the function of reversing and automatically removing dust, with low noise and long life.
04 Filter
Unique cyclone barrel and large dust isolation and collection system adopt advanced design, easy and fast to maintain.
05 Stainless Steel Hopper
Stainless steel hopper, to ensure that the raw materials are not polluted during transportation.
06 Vacuum Breaking Valve
≥ 5HP equipped with vacuum breaking valve as standard to prevent frequent start , stop or prolong the service life of the motor.
