Steel Frame Prefabricated Table Tennis Training Playing Sports Hall Hangar Building
200 Square Meter
$79.99200 Square Meter
$29.99Product information
High-quality Steel Frame Prefabricated Table Tennis Training Playing Sports Hall Hangar Building supplied by Qingdao Director Steel Structure Co., Ltd.. Bulk wholesale pricing ranges from $29.99 to $79.99 per Square Meter with a minimum order of 200 Square Meter. Inquiry for latest prices.
Production Capacity::
5000ton/Month
Life Time:
50years
HS Code:
940690
Wind Resistance Capacity:
>80km / Hour
Seismic Resistance Capacity:
>Grade 8
After Sales Service:
After Sale Service
Window:
Aluminum /PVC
Feature:
Anti-Corrosion, Earthquake Resistance, Easy To Install, High Intensity, Recyclable
Specifications
Production Capacity::
5000ton/Month
Life Time:
50years
HS Code:
940690
Wind Resistance Capacity:
>80km / Hour
Seismic Resistance Capacity:
>Grade 8
After Sales Service:
After Sale Service
Window:
Aluminum /PVC
Feature:
Anti-Corrosion, Earthquake Resistance, Easy To Install, High Intensity, Recyclable
Connection:
Bolt Connect, Weld Connect
Connection Form:
Bolt Connection
Trademark:
DFX
Model NO.:
DFXSSB00001
Trade Term:
FOB, CFR, CIF
Transport Package:
Flat Packed
Type Of Steel For Building Structure:
High-Strength Steel
Forming:
Hot-Rolled Steel
Payment Terms::
L/C, T/T, Western Union
Payment Term:
LC, T/T, PayPal, Western Union
Warranty:
More Than 5 Years
Install:
Online Guidance
Carbon Structural Steel:
QQ235 Q355
Port Of Loading:
Qingdao Port
Port::
Qingdao, China
Origin:
Qingdao, China
Bracing:
Rod Steel, Angle Steel, C/Z Purlin etc.
Wall&Roof:
Sandwich Panel /Fiber Cement Board
Door:
Sliding Door or as Request
Member:
Steel Beam
Product Name:
Steel Frame Prefabricated Table Tennis Training Pl
Residential Wall Structure:
Wallboard
Specification:
custom
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2011-12-04
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, CFR, CIF
Port Of Loading:
Qingdao Port
Certificates:
ISO 14001, ISO 9001
Product descriptions from the supplier
Product Description
Product Description
Steel Frame Prefabricated Table Tennis Training Playing Sports Hall Hangar Building

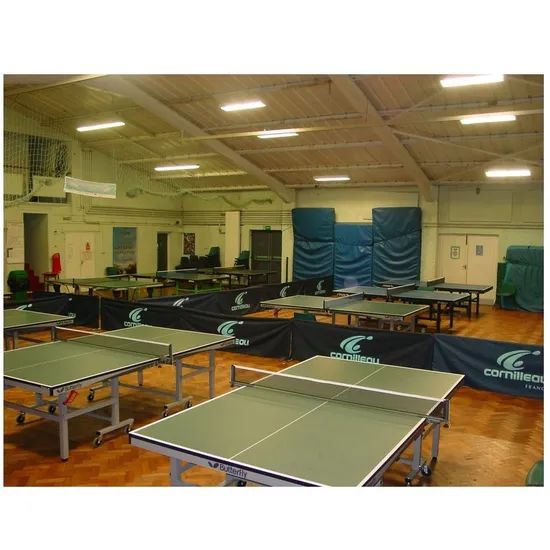

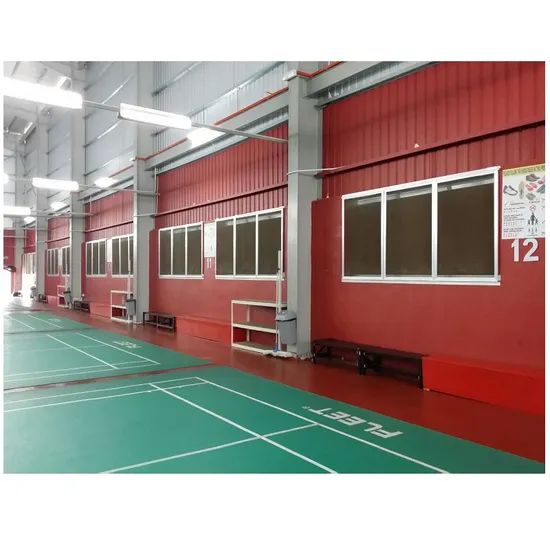

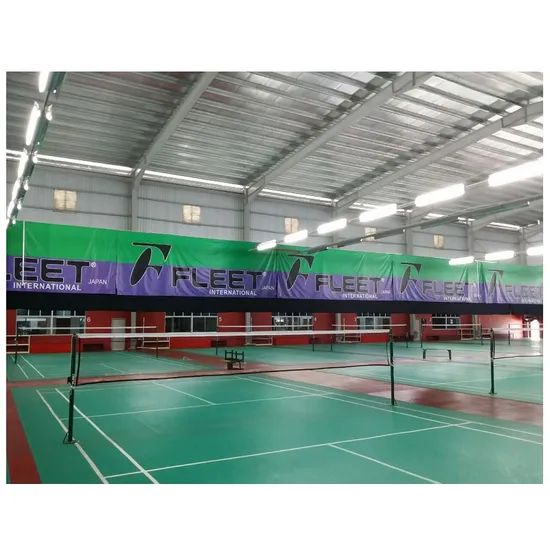

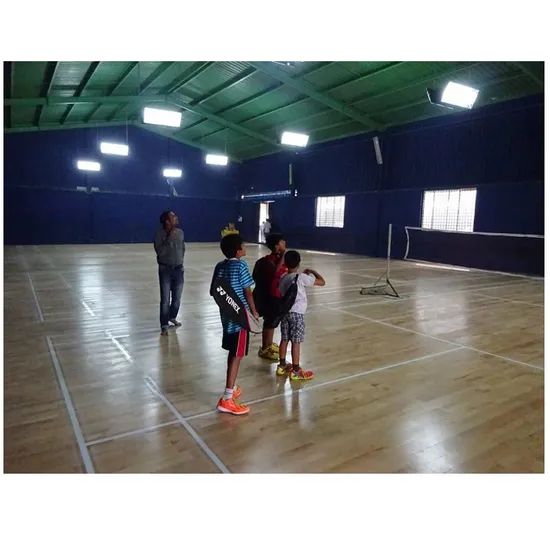

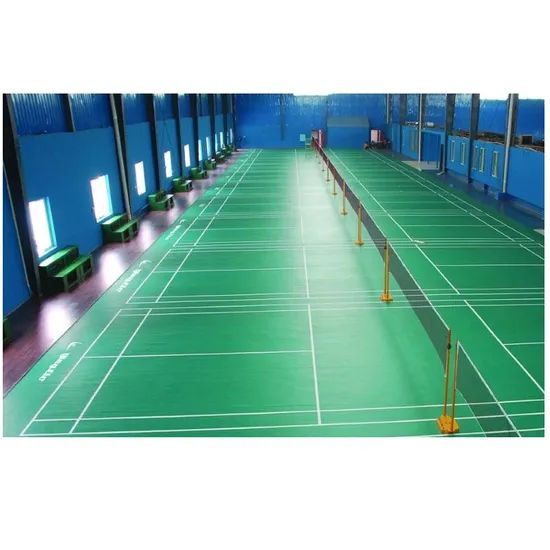

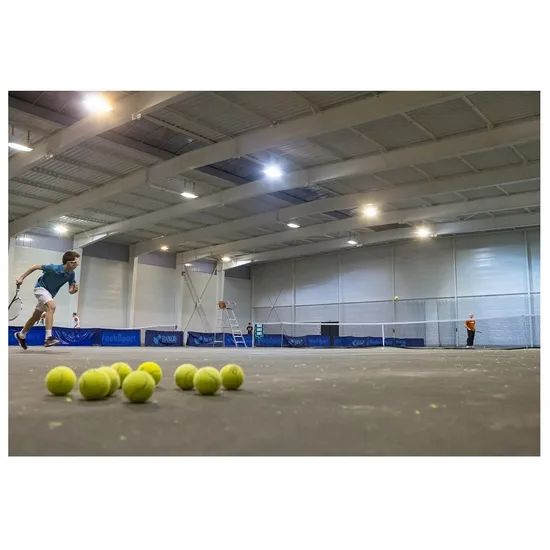

The steel structure buildings can be used inside sports arena, basketball, tennis ball, badminton playing, horse riding.Project sample details:
- Size is 100*20*6m
- 1:10 Roof Pitch
- 150km/h Wind Load
- 0.5kn/m2 Live Load
- No Snow
- Seismic Grade 8
- Floor Load 5.0kn/m2
- Clear Span
- Loads can be adjusted for local codes
Special Features:
Building warranty 50 Year structural, 25 Year on colored galvanized sheet.(under normal weather conditions)
| Main Steel Frame | H section or C section steel | Q345 steel 8mm/10mm |
| 2 | Welding | Automatic Submerged Arc Welding |
| 3 | Rust removing | Sand blasting |
| 4 | Surface processing | Alkyd Paint or galvanized |
| 5 | Intensive bolt | Grade 10.9 |
| Supporting System | Angle Brace | L50x4,Steel Q235, Process and Painting |
| 2 | Cross Support | Φ20, Steel Q235, Process and Painting |
| 3 | Belt Bar | Φ89*3, Steel Q235 Process and Painting |
| 4 | Small Brace | Φ12,Steel Q235 Process and Painting |
| 5 | Ordinary Bolt | Galvanized Bolt |
| Roof | Purlin | C160*60*2.5,Steel Q235, painting and Galvanized |
| 2 | Out-roof Panel | Sandwich Panel or corrugated steel plate |
| 3 | Transparent lighting panel | 6mm thick PVC |
| 4 | Accessories | Glass glue, self-tapping screw etc. |
| 5 | Edge Cover | Made of color steel sheet thickness 0.5mm |
| 6 | Gutter | Made of steel sheet thickness 0.8mm |
| 7 | Rainspout | Φ110PVC |
| Wall | Purlin | C160*60*2.5,Steel Q235, Paint |
| 2 | Wall | sandwich panel or corrugated steel plate |
| 3 | Accessories | Glass Cement, Self-tapping Screw etc. |
| 4 | Edge Cover | Made of color steel sheet thickness 0.5mm |
| 5 | Axial fan | Axial Fan |
| 6 | Door | Rolling door/sliding door |
| 7 | Window | PVC / alu / steel frame window |
| 8 | Crane | With or without crane in 5 tons to 20 tons |
| Drawings | lPermit Drawings lEngineered Drawings lAnchor Bolt Plans lFull Set of Erection Drawings lElectricity or water system drawings if need | |
Production Flow:
Compare:
Take the Time to REALLY Compare Us!
| Features | DFX Steel Structure | "competition" |
| We don't just sell buildings, we engineer, design and detail your building.Our Engineers are available at all times to make sure you get just the building you wanted. | Standard Included | Additional Cost Or Not Available |
| We are all humans and errors can come up, however our expert technicians and customer service specialist are available at all times to make things right. | Standard Included | Additional Cost Or Not Available |
| All components including sheeting, I-beams, accessories and even doors are manufactured in factory. | Standard Included | Additional Cost Or Not Available |
| Our Pre-Cut, Pre-Punched and Pre-Drilled Parts allow quick and easy assembly. No drilling or welding required. | Standard Included | Additional Cost Or Not Available |
| Our Long Life Hex Flange Bolts, Hex Nuts, Washers, Screws & Fasteners with Matching Finish ensure tightness and weather protection for the entire building. | Standard Included | Additional Cost Or Not Available |
| All DFX Steel Buildings come with cable bracing which will add strength and rigidity. | Standard Included | Additional Cost Or Not Available |
| All Framed Openings come with Jamb & Header cover trim giving your building a more attractive finish. | Standard Included | Additional Cost Or Not Available |
| Minimum 28 GA Steel to keep you and your belongings safe. | Standard Included | Additional Cost Or Not Available |
Optimal Construction- A DFX Steel Building can optimize your building time and reduce your total construction time by weeks and in cases several months.
Personalized Design - Each DFX Steel building can be accommodated to suit your needs. It can even be designed to allow expansion, while maintaining its uncompromising clear span interior.
Energy Efficiency - DFX Steel Buildings' Galvalume finish allows heat to bounce off the building. When complemented with insulation, these buildings will be between 10 to 15 degrees cooler in the summer and 10 to 15 degrees warmer in the winter. Many of DFX Steels colored panels meet the reflective and impassivity performance levels required to mitigate the cause of urban heat islands and energy consumption overall.
Green Buildings - DFX Steel Buildings are created with 100% Recyclable Steel.
Cost Efficiency - Labor cooperative buildings, lifelong durability, virtually no maintenance and more affordable prices than almost any other type of construction, it's simple to see why DFX Beam Steel buildings should be your No.1 choice for prefabricated construction.
PRICE MATCH GUARANTEE-If you find this item less expensive anywhere on the Internet, let us know and we will match or beat that price when Comparing Apples to Apples!
Superior Customer Service-We take pride in providing prompt and courteous customer service. Our goal is to make your customer and shopping experience as easy and convenient as possible. If you have any questions or comments before or after your purchase, please don't hesitate to contact us.
Loading Picture:
Contact Us:
Maggie Zhu
DFX Steel is proud to provide quality products with Customer Service Second to None!We offer a guarantee on all our products, so Buy it now with confidence.
Company Profile
Our company is a group company after a 23-year stable development. We are major in the whole building system and manufacture all buildings by ourselves.
Hope to know more of your requirements for further servicing you.
We provide one-stop service of steel structure buildings including design,fabrication and installation guidance,etc.
We have 300 workers(more than 20 engineers), 3 workshops total 30,000 square meters, 3000 tons fabrication capacity each month, more than 23 years experience,
steel buildings built in more than 120 countries &areas, ISO & CE certificated,
These are how to keep good quality and competitive prices for global valued customers.
if you have specific project, pls tell the information for us to check the cost.
FAQ
FAQ
Q: You are manufacture factory or trading company?
A: We are manufacture factory. And you are welcomed to visit us for inspection. The quality control flow will show you ourprofessional. Also you will enjoy the best quality and competitive price.
Q: Whats the quality assurance you provided and how do you control quality ?
A: Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc. SGS, BV and other testing are available for us.
Q: Can you offer designing service?
A: Yes, we have more than 10 design engineers. We could design full solution drawings as per your requirments. They use software: Auto CAD,PKPM, MTS, 3D3S, Tarch, Tekla Structures(Xsteel)V12.0.etc.
Q: Do you offer guiding installation on site overseas?
A: Yes, usually we will send you the detailed installation drawing, if you need, we can provide the service of installation, supervision and training by extra. We can send our professional technical engineer to supervise installation on site overseas.
