Stretch Spacing Factory Price Computer Data Acquisition Testing Instrument
1-2 set
$13,0003 set
$11,000Product information
High-quality Stretch Spacing Factory Price Computer Data Acquisition Testing Instrument supplied by Wuhu Kete Instrument Sales Co., Ltd.. Bulk wholesale pricing ranges from $11,000 to $13,000 per set with a minimum order of 1 set. Inquiry for latest prices.
Accuracy Grade:
1
Weight:
1000-2000Kg
Experimental Force:
100kN
The Weight Of The Host:
1450kg
Dimensions Of The Host'S External Appear:
800mm×620mm×1850mm
Maxcapacity:
<1000KN
Power Source:
AC380V
Origin:
Anhui, China
Specifications
Accuracy Grade:
1
Weight:
1000-2000Kg
Experimental Force:
100kN
The Weight Of The Host:
1450kg
Dimensions Of The Host'S External Appear:
800mm×620mm×1850mm
Maxcapacity:
<1000KN
Power Source:
AC380V
Origin:
Anhui, China
Transport Package:
Each Product Is Individually Packaged
Trade Term:
FOB
Color:
Grey
The Level Of Testing Machine:
Level 1(Level 0.5)
Port Of Loading:
Ningbo Port, Shanghai Port
Load Way:
Other
Loading Method:
Other
Specification:
Power: 3KW
Trademark:
SANYU
Payment Term:
T/T
Type:
Universal Testing Machine
Model NO.:
WAW-100B
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2010-08-23
Annual Revenue Amount:
Not specified
Numbers Of Employees:
6
Preferred Payment Term:
T/T
Preferred Trade Term:
FOB
Port Of Loading:
Ningbo Port, Shanghai Port
Certificates:
Certificate
Product descriptions from the supplier
Product Description

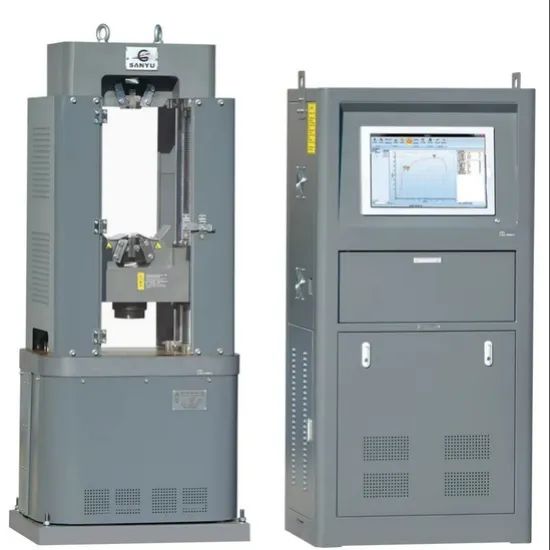

WAW-100B Micro Electro Hydraulic Servo Universal Testing Machine
The WAW-100B electro-hydraulic servo universal testing machine can meet various standard tests for metal tensile testing regulations, and can also perform tensile, compression, bending, shear, and other types of tests on different materials or products according to other standards.
The WAW-100B electro-hydraulic servo universal testing machine can meet various standard tests for metal tensile testing regulations, and can also perform tensile, compression, bending, shear, and other types of tests on different materials or products according to other standards.
Details
The WAW-100B electro-hydraulic servo universal testing machine is a high-precision material testing equipment that uses hydraulic power source drive, electro-hydraulic servo control technology, computer data acquisition and processing, and can achieve closed-loop control and automatic detection. It consists of four parts: the testing host, oil source (hydraulic power source), measurement and control system, and testing equipment. The testing force is 100kN, and the accuracy level of the testing machine is better than level 1.
The WAW-100B electro-hydraulic servo universal testing machine is a high-precision material testing equipment that uses hydraulic power source drive, electro-hydraulic servo control technology, computer data acquisition and processing, and can achieve closed-loop control and automatic detection. It consists of four parts: the testing host, oil source (hydraulic power source), measurement and control system, and testing equipment. The testing force is 100kN, and the accuracy level of the testing machine is better than level 1.
The WAW-100B electro-hydraulic servo universal testing machine is a product with strong universality, which can meet various standard tests related to metal tensile testing regulations, and can also perform tensile, compression, bending, shear and other types of tests on different materials or products according to other standards. It can obtain performance indicators such as tensile strength, yield strength, specified non proportional tensile strength, elastic modulus, etc. of the tested materials, and can achieve closed-loop control such as constant rate loading, constant rate deformation, constant rate displacement, and constant rate strain. It can also perform process compliance performance verification tests on materials or products.
The testing machine is a six column, dual space structure, with a tension space between the upper and lower crossbeams and a compression space between the lower crossbeam and the test bench. The testing space is automatically adjusted by driving the lower crossbeam up and down through the rotation of sprockets and screws. Hydraulic controlled clamping jaws are installed on the upper and lower crossbeams, and standard models are equipped with V-shaped and flat jaws for clamping cylindrical and flat specimens for tensile testing; The bottom end of the lower crossbeam of the standard model is equipped with an upper pressure plate, and the test bench is equipped with a lower pressure plate with a spherical structure, which can be directly used for compression testing.
The testing machine is a six column, dual space structure, with a tension space between the upper and lower crossbeams and a compression space between the lower crossbeam and the test bench. The testing space is automatically adjusted by driving the lower crossbeam up and down through the rotation of sprockets and screws. Hydraulic controlled clamping jaws are installed on the upper and lower crossbeams, and standard models are equipped with V-shaped and flat jaws for clamping cylindrical and flat specimens for tensile testing; The bottom end of the lower crossbeam of the standard model is equipped with an upper pressure plate, and the test bench is equipped with a lower pressure plate with a spherical structure, which can be directly used for compression testing.
Industrial tablet
Strong adaptability to hash environment, with the characteristics of earthquake resistance, moisture-proof, dust-proof and high temperature resistance.
Spoke load sensor
1.High precision.
2.Good repeatability.
3.Good long-term stability.

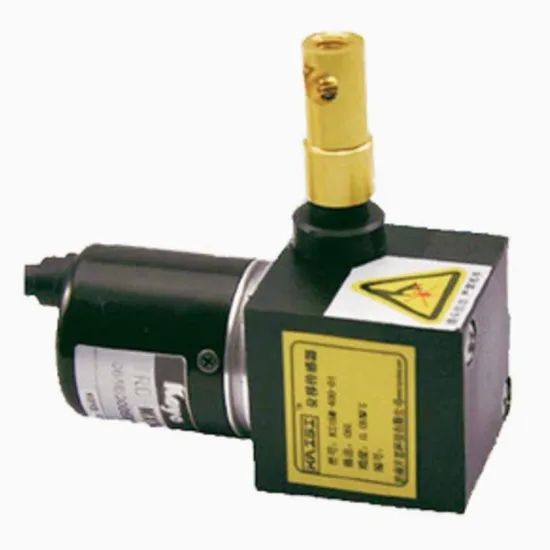

Withdrawable digital displacement sensor
1.High accuracy and resolution.
2.Strong seismic and anti-interference ability.
3.Good repeatability.
Semi enclosed crossbeam
1.Increased strength of crossbeam.
2.Effectively reduce the deformation of structural parts.
3.More accurate test data.
Steel institute electronic extensometer
1.High precision.
2.Good stability.

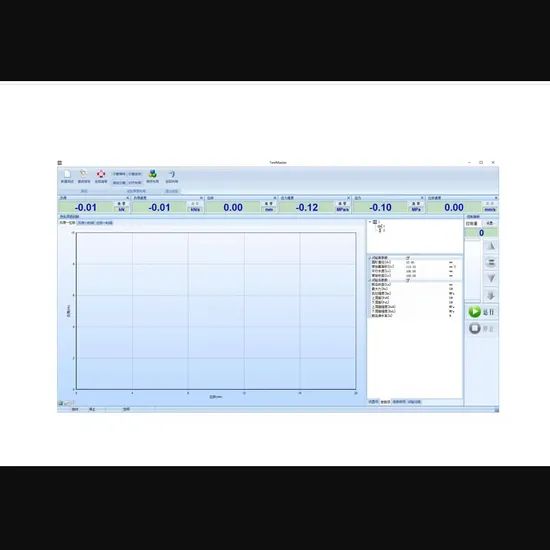

Measurement and control software
1.Simple operation.
2.Beautiful interface.
3.Powerful function.
4.Convenient expansion.
Specification
Experimental force | 100KN |
The level of testing machine | Level 1(Level 0.5) |
Compression surface spacing | 500mm |
Stretch spacing | 600mm |
The stroke of the piston | 200mm |
Circular specimen clamping diameter | Φ6mm-Φ22mm |
Flat specimen clamping thickness | 0mm-15mm |
Dimensions of upper and lower pressure plates | Φ110mm |
Dimensions of the host's external appearance | 800mm×620mm×1850mm |
Dimensions/weight of the oil source cabinet | 680mm×580mm×1500mm/260kg |
The weight of the host | 1450kg |
The power of the entire machine | 3KW |
Company Profile
Wuhu Kote Instrument Sales Co., Ltd. is an enterprise specializing in domestic and foreign instrument sales, mainly engaged in test instruments, experimental instruments, testing instruments, engineering materials, test consumables, etc., the products sold are widely used in the construction of building materials quality testing, higher education testing and teaching, the quality of public railways and railway construction testing, building energy-saving environmental testing and other areas of the national economy.
In recent years, in addition to the traditional instrument sales, we also provide customers with a full set of test room configuration program and the supply of test equipment, for the user to prepare for the construction of various types of test room to provide the greatest convenience, and effectively achieve the sales, training, after-sales service in one-stop.
Year of sales experience allows us to provide more reasonable products and programs according to your needs, so that each of our cooperation can bring you greater benefits.
"Sales and service, quality and integrity of the same" is the foundation of our development, with our sincerity to create a larger and more comprehensive instrument sales platform, for your choice to provide maximum convenience is the goal of our efforts.
Quality lays the foundation, credibility builds the brand, Wuhu City Kote Instrument Sales Co., Ltd. is willing to cooperate with friends from all over the world to realize the grand prospect together!
In recent years, in addition to the traditional instrument sales, we also provide customers with a full set of test room configuration program and the supply of test equipment, for the user to prepare for the construction of various types of test room to provide the greatest convenience, and effectively achieve the sales, training, after-sales service in one-stop.
Year of sales experience allows us to provide more reasonable products and programs according to your needs, so that each of our cooperation can bring you greater benefits.
"Sales and service, quality and integrity of the same" is the foundation of our development, with our sincerity to create a larger and more comprehensive instrument sales platform, for your choice to provide maximum convenience is the goal of our efforts.
Quality lays the foundation, credibility builds the brand, Wuhu City Kote Instrument Sales Co., Ltd. is willing to cooperate with friends from all over the world to realize the grand prospect together!
Workshop
Certifications
Exhibitions
Packaging & Shipping
FAQ
1. Question: Is your company a trading company or a factory?
Answer: We are a trading company, but we also have our own factory. The establishment of a trading company is only used for exporting various types of concrete molds and other products.
2. Question: Why are your prices higher than others?
Answer: We insist that every factory should prioritize quality. We spend time and money developing how to make machines more automated, accurate, and of high quality. We can ensure that our machines can be used for more than ten years without any problems. And we can provide a one-year free quality guarantee.
3. Question: How to choose the most suitable product?
Answer: Our professional team will give you the best advice, as long as you tell us what kind of testing you need to do and the required specifications.
4. Question: What is the delivery deadline?
Answer: In most cases, we have inventory in the factory. If there is no inventory, the delivery time is usually 15-20 working days after receiving the deposit. If you have an urgent need, we can consider making special arrangements for you.
5. Question: Do you accept customized services?
Answer: Yes, of course, we can not only provide standard machines, but also customize machines according to your requirements. Please let us know your requirements at any time, and we will do our best to meet them.
Answer: We are a trading company, but we also have our own factory. The establishment of a trading company is only used for exporting various types of concrete molds and other products.
2. Question: Why are your prices higher than others?
Answer: We insist that every factory should prioritize quality. We spend time and money developing how to make machines more automated, accurate, and of high quality. We can ensure that our machines can be used for more than ten years without any problems. And we can provide a one-year free quality guarantee.
3. Question: How to choose the most suitable product?
Answer: Our professional team will give you the best advice, as long as you tell us what kind of testing you need to do and the required specifications.
4. Question: What is the delivery deadline?
Answer: In most cases, we have inventory in the factory. If there is no inventory, the delivery time is usually 15-20 working days after receiving the deposit. If you have an urgent need, we can consider making special arrangements for you.
5. Question: Do you accept customized services?
Answer: Yes, of course, we can not only provide standard machines, but also customize machines according to your requirements. Please let us know your requirements at any time, and we will do our best to meet them.
