Suspended Belt Magnetic Separator
Piece
Negotiable
Product information
High-quality Suspended Belt Magnetic Separator supplied by Linqu Real Magnet Co., LTD.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Warranty:
1 Year
Production Capacity:
100 Sets Per Month
Belt Width:
300-2600mm
Max.Belt Speed:
4.5m/S
Max.Product Stream Thickness:
400mm
Max.Suspended Height:
450mm
Magnetic Intensity:
70-150mt
HS Code:
84741000
Specifications
Warranty:
1 Year
Production Capacity:
100 Sets Per Month
Belt Width:
300-2600mm
Max.Belt Speed:
4.5m/S
Max.Product Stream Thickness:
400mm
Max.Suspended Height:
450mm
Magnetic Intensity:
70-150mt
HS Code:
84741000
Specification:
As model requirements
Material:
Carbon Steel
Origin:
China
Work Type:
Continuous Work Type
Customized:
Customized
After Sales Service:
Email Guide
Energy Saving:
Energy Saving
Transport Package:
Export Standard Pack
Trade Term:
FOB, EXW, CFR, CIF, Others, FCA
Separator:
Ferrous Metal
Feature:
High Recovery Rate Easy
Quality:
High Reputation
Certification:
ISO9001:2008
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Cooling Type:
Natural Cooling,Winding Cooling,Oil Cooling
Condition:
New
Key Selling Points:
Protect Crusher-Purify Product Stream
Model NO.:
RCYC RCYD
Material Feature:
Rare Earth Material-NdFeB Magnet
Magnetic Origin:
Rare Earth Material-NdFeB Magnet or Engerised Coil
Iron Cleaning Style:
Self Cleaning
Installation Type:
Suspended Install
Color:
as Customer Requirement
Weight:
as Model
Port Of Loading:
qingdao
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2022-02-09
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, EXW, CFR, CIF, Others, FCA
Port Of Loading:
qingdao
Product descriptions from the supplier
Introuduce:
Suspend permanent magnetic belt separator is composed of high-performance permanent magnetic core, iron discharging belt, reducer motor, frame, roll, etc, which can be combined with conveyers to remove 0.1~35kg iron from non-magneti
materials automatically.

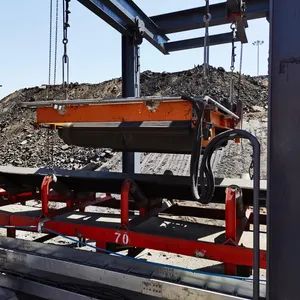

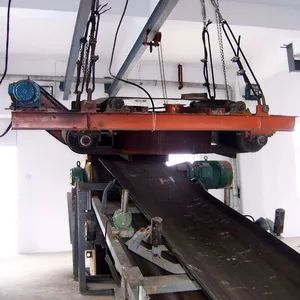

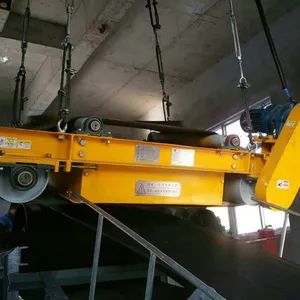

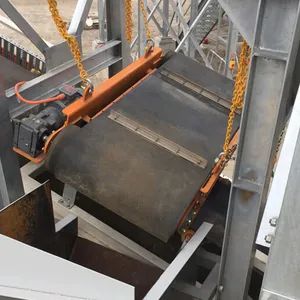

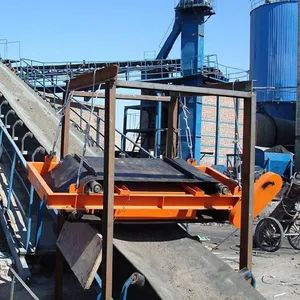

Suspend permanent magnetic belt separator usually suspend on the onveyor or over the head pulley.
Suspend permanent magnetic belt separator can protect downstream important and in most cases very expensive equipments from being potentially damaged by tramp metal.
Working principle:
When the material mixed in ferromagnetic impurities pass through the suspension magnetic iron separator,the ferromagnetic impurities will be absorbed and collected on the self cleaning magnetic separator belt,with the movement of the self cleaning belt,the ferromagnetic impurities will be out of the magnetic field,then release beyond the product flow automatically.
Work with metal detector to achieve optimum protection:
Metal detectors are commonly used alongside suspended overband magnet to
detect tramp metal such digger teeth(manganese steel).
Used in this combination,magnetic separators and metal detectors provide optimum protection.
This results in less production downtime and reduced maintenance and repair cost.
detect tramp metal such digger teeth(manganese steel).
Used in this combination,magnetic separators and metal detectors provide optimum protection.
This results in less production downtime and reduced maintenance and repair cost.
Application:
Installation on Mobile Crushers, Screens and Shredders
Installation within a MRF (Material Recovery Facility) plant
Separation of ferrous contamination in quarries
Removal of ferrous materials in mining operations
Used in Wood Waste processing applications
Separation of ferrous in fragmentiser metal recovery
Separation of ferrous metals from Municipal Solid Waste
Removal of ferrous contamination in glass cullet recycling
Separation of ferrous from Kerbside collection recycling
Separation of ferrous metals in Skip Waste recycling
Removal of ferrous from Foundry applications
Installation within a MRF (Material Recovery Facility) plant
Separation of ferrous contamination in quarries
Removal of ferrous materials in mining operations
Used in Wood Waste processing applications
Separation of ferrous in fragmentiser metal recovery
Separation of ferrous metals from Municipal Solid Waste
Removal of ferrous contamination in glass cullet recycling
Separation of ferrous from Kerbside collection recycling
Separation of ferrous metals in Skip Waste recycling
Removal of ferrous from Foundry applications
Installation drawing:
Overall drawing:
Technical specifications:
| Model No. | Belt width (mm) | Suspension height(h≤mm) | Magnetic intensity (≥mT) |
Thickness of materials (≤mm) |
Motor power (kw) |
Adaptive belt speed (≤m/s) |
Duty type | Weight (kg) |
Outline dimensions (mm) | ||||
| A | B | C | D | E | |||||||||
| RCYD(C)-5 | 500 | 150 | 60 | 80 | 1.5 | 4.5 | continuous | 450 | 1900 | 710 | 935 | 950 | 753 |
| RCYD(C)-6 | 600 | 175 | 60 | 120 | 1.5 | 620 | 2050 | 710 | 1020 | 1050 | 753 | ||
| RCYD(C)-6.5 | 650 | 200 | 70 | 150 | 1.5 | 900 | 2050 | 728 | 1020 | 1200 | 888 | ||
| RCYD(C)-8 | 800 | 250 | 70 | 200 | 2.2 | 1100 | 2250 | 750 | 1300 | 1350 | 1090 | ||
| RCYD(C)-10 | 1000 | 300 | 70 | 250 | 3.0 | 1820 | 2650 | 889 | 1550 | 1450 | 1335 | ||
| RCYD(C)-12 | 1200 | 350 | 70 | 300 | 4.0 | 3050 | 2860 | 1010 | 1720 | 1550 | 1515 | ||
| RCYD(C)-14 | 1400 | 400 | 70 | 350 | 4.0 | 4150 | 3225 | 1050 | 1980 | 1800 | 1755 | ||
| RCYD(C)-16 | 1600 | 450 | 70 | 400 | 5.5 | 5900 | 3350 | 1180 | 2160 | 1950 | 1850 | ||
| RCYD(C)-18 | 1800 | 500 | 70 | 450 | 5.5 | 7800 | 3580 | 1210 | 2450 | 2200 | 2130 | ||
| RCYD(C)-20 | 2000 | 550 | 70 | 500 | 7.5 | 9400 | 3800 | 1300 | 2700 | 2400 | 2410 | ||
