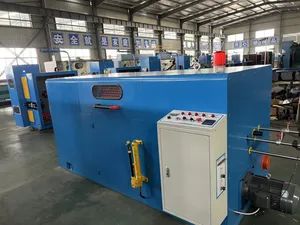

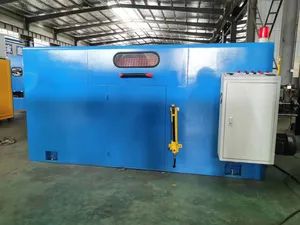

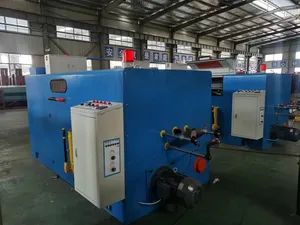

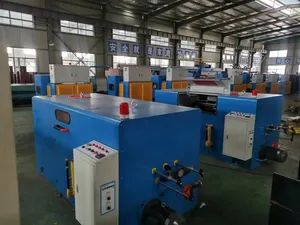

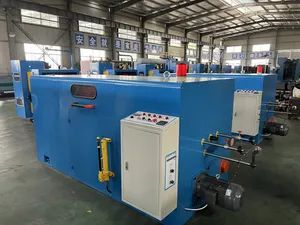

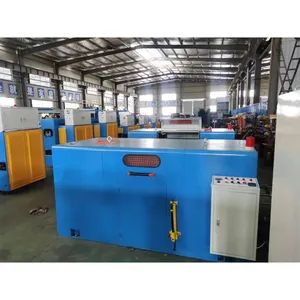

Swan 630 Copper Wire Twisting Winding Stranding Double Twist Bunching Machine Cable Making Machine
set
Negotiable
Product information
High-quality Swan 630 Copper Wire Twisting Winding Stranding Double Twist Bunching Machine Cable Making Machine supplied by SWAN Wire Engineering. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Warranty:
12 Months
Maximum Rotating Speed:
1600RPM/3200TPM
Stranded Limits:
7 up copper wire or 5# cable stranded
Automatic Grade:
Automatic
Origin:
China Shanghai
Trade Term:
FOB, CIF, CFR, EXW
Type:
High-speed Stranding Machine
Specification:
L2900× W1560× H1500(MM)
Specifications
Warranty:
12 Months
Maximum Rotating Speed:
1600RPM/3200TPM
Stranded Limits:
7 up copper wire or 5# cable stranded
Automatic Grade:
Automatic
Origin:
China Shanghai
Trade Term:
FOB, CIF, CFR, EXW
Type:
High-speed Stranding Machine
Specification:
L2900× W1560× H1500(MM)
Payment Term:
LC, T/T
Copper Loading Capacity:
Max.600kgs
Condition:
New
Certification:
RoHS, ISO, CE
Port Of Loading:
Shanghai Port
Trademark:
Swan INT'L
Transport Package:
Wrapped in Plastic Film FCL or LCL
Soft Copper Wire Individual:
φ0.14-0.68mm
Insulated Wire Individual:
φ1.0-2.0mm
Max.Wire Stranded:
φ3.0mm
Spool Dimension(Flange O.D):
φ500-φ630mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-08-12
Annual Revenue Amount:
Not specified
Numbers Of Employees:
8
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
ISO, OHSAS, Reach, ROHS, UL
Product descriptions from the supplier
SW-630 Automatic High-speed Double TwistBunching Machine
| Product Parameters | |
| Stranded limits | 7 up copper wire or 5# cable stranded |
| Maximum rotating speed | 1600RPM/3200TPM |
| Soft copper wire individual | φ0.14-0.68mm |
| Insulated wire individual | φ1.0-2.0mm |
| Stranding section area | 0.183-6.7mm2 |
| Max.wire stranded | φ3.0mm |
| Lay length | 10.89~100.02mm |
| Twistingdirection | S or Z |
| Direction of strand | optional for right or left |
| Spooldimension(Flange O.D) | φ500-φ630mm |
| Copper loading capacity | Max.600kgs |
| Spool Loading and unloading type | manualhydrauliclift |
| Take-up tension control | A clutch is installed for adjusting the take-up tension |
| Traversing | Bearing traverse and distance can be adjusted |
| Main motor | 15HP-4P Variable speed control with frequency converter |
| Brake system | 24+3kg.m electromagnetic brake |
| Machine net weight | 3500Kg |
SWAN INT'L , based in Shanghai , is the manufacturer and exporter of wire , cable and its manufacturing equipments ; the company also provides the consulting service for international bidding projects, Chinese supplier sourcing service for the industrial products supply chain development .
The company has developed its business with more than 100 overseas clients in more than 20 countries and regions such as Germany,Italy, Brazil, Southeast Asia, Russia, Turkey, the Middle East Region , Africa, etc.For wire and cable industry , the company provide the overall whole factory technology solutions for wire and cable companies , including the whole factory tailor made technical design , manufacturing equipment technology consulting service , equipments selection and innovation. We supply wire and cable products and OEM service .
Our equipments includes :full line for copper rod up-casting manufacturing,Tandem line for CAT5/6/7 series and coaxial cable manufacturing,Equipment units for Drawing/Stranding/Bunching /Extrusion .Our wire and cable products includes : Power cable,telecommunication cable , Enameled copper ( aluminum ) wire ,etc .
China government's new " Road and Belt " policy , provide one brand new chance for industry manufacturing capacity cooperation with overseas country and regions .By this new policy ,Shanghai SWAN INT'L sincerely hope to establish and develop long-term , mutual benefit relationship with you in the future .
