Swan Factory Power Cable Extrusion Production Line/ Electrical Wire Extruder/ Power Wire Cable Extruding Machine
Set
Negotiable
Product information
High-quality Swan Factory Power Cable Extrusion Production Line/ Electrical Wire Extruder/ Power Wire Cable Extruding Machine supplied by SWAN Wire Engineering. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Central Height:
1000mm
Rotating Speed Of Screw:
10~90r/Min
Warranty:
12 Months
Production Capacity:
15set/Year
L/D Of Screw:
25:1
Max. Extrusion Output:
400kg/H(PVC)
Certification:
CCC, ISO, CE
Origin:
China
Specifications
Central Height:
1000mm
Rotating Speed Of Screw:
10~90r/Min
Warranty:
12 Months
Production Capacity:
15set/Year
L/D Of Screw:
25:1
Max. Extrusion Output:
400kg/H(PVC)
Certification:
CCC, ISO, CE
Origin:
China
Transport Package:
FCL. Film Wrapping
Trade Term:
FOB, CIF, CFR, EXW
Payment Term:
LC, T/T
Condition:
New
Pay Off Bobbin Size:
PN800 to PN1250
Take Up Bobbin Size:
PN800 to PN1250
Model NO.:
SW-JC90
Trademark:
SWAN
Port Of Loading:
Shanghai Port
Screw:
Single-Screw
Designed Speed:
max 120m/min(According to The Cable Size)
Diameter Of Cable Core:
φ3.5mm to 25mm
Outer Diameter Of Sheath:
φ5.0mm to 28mm
Screw Diameter:
φ90mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-08-12
Annual Revenue Amount:
Not specified
Numbers Of Employees:
8
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
ISO, OHSAS, Reach, ROHS, UL
Product descriptions from the supplier

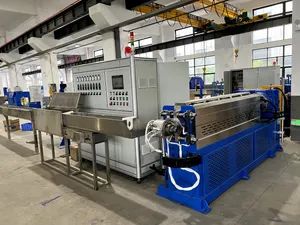

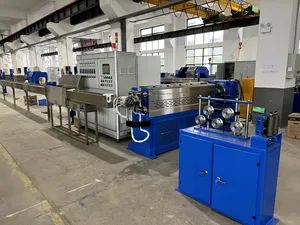

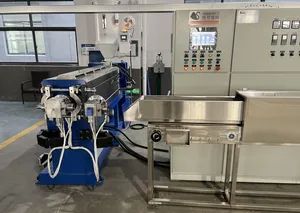

SWAN SJ-90×25 cable extrusion line
The machine is mainly applied for extrusion of PVC, PE, XLPE and other thermoplastics insulation and jacket for wire and cable core by hot extrusion method.
Equipment composition and accessories can be customized according to customer needs
|
Equipment composition
|
|
| PN1250 cantilever type passive payoff | one set |
| Korea type straightener | one set |

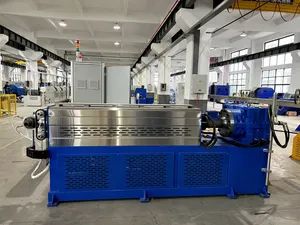

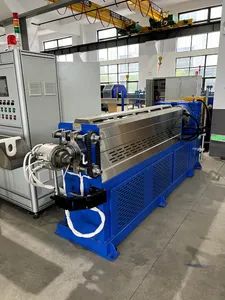

| SJ-90×25 extruder | one set |
| Cross head | one set |
| Drying and loading device | one set |
| Cooling stainless steel trough (sectional trough) | one set |
| Drying device | one set |
| WK-GX 20W laser jet | one set |
| Spark tester | one set |
| External diameter gauge | one set |
| Mechanical electron meter counter | one set |
| TQDV800 wheel type capstan | one set |
| PN1250 cantilevered take up and traverse | one set |
| Line synchronization electric control system | one set |
|
Main technical parameters
|
|
| Diameter of cable core | Φ3.5~25mm |
| Outer diameter of sheath | Φ5.0~28mm |
| Designed speed | max 120m/min (according to the size of cable) |
| Central height of equipment | 1000mm |
| Size of pay off reel | PN 800~1250mm |
| Size of take up reel | PN 800~1250mm |
| Diameter of screw | Φ90mm |
| L/D of screw | 25:1 |
| Rotating speed of screw | 10~90r/min |
| Max. extrusion output | 400 kg/h(PVC) |
| Voltage class | three-phase five-line, ~380V / 50Hz. |
SWAN INT'L , based in Shanghai , is the manufacturer and exporter of wire , cable and its manufacturing equipments ; the company also provides the consulting service for international bidding projects, Chinese supplier sourcing service for the industrial products supply chain development .
The company has developed its business with more than 100 overseas clients in more than 20 countries and regions such as Germany,Italy, Brazil, Southeast Asia, Russia, Turkey, the Middle East Region , Africa, etc.For wire and cable industry , the company provide the overall whole factory technology solutions for wire and cable companies , including the whole factory tailor made technical design , manufacturing equipment technology consulting service , equipments selection and innovation. We supply wire and cable products and OEM service .
Our equipments includes :full line for copper rod up-casting manufacturing,Tandem line for CAT5/6/7 series and coaxial cable manufacturing,Equipment units for Drawing/Stranding/Bunching /Extrusion .Our wire and cable products includes : Power cable,telecommunication cable , Enameled copper ( aluminum ) wire ,etc .
China government's new " Road and Belt " policy , provide one brand new chance for industry manufacturing capacity cooperation with overseas country and regions .By this new policy ,Shanghai SWAN INT'L sincerely hope to establish and develop long-term , mutual benefit relationship with you in the future .
For extruders , pls inform :
1, Max. section
2, Conductor structure ( single or multi-core , pls inform wire number and single wire size )
3, What is the payoff bobbin size
4, What is take up bobbin size ( or you need auto coiling with film wrapping ) ;
5, If you need the online testing units ( Diameter ; pre-heating unit ; sparkle test) ;
6, If you need the printer ( ink or laser jet printer ) ;
7, For extruding capacity ( kgs/hour) , speed ( meters/minute ), what's requirement ?
8, Pls inform me your budget , we can recommend accordingly .
With above specific information ,we can provide quotation accordingly .Thanks .
