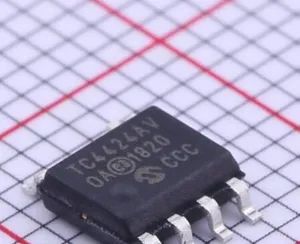

TC4424AVOA713 Gate Drivers 3A Dual MOSFET driver

The TC4424A device is dual-output 3A buffers/MOSFET drivers. These devices are improved versions of the earlier TC4424 dual-output 3A driver family. This improved version features higher peak output current drive capability, lower shoot-throught current, matched rise/fall times and propagation delay times. The TC4424A devices are pincompatiblewith the existing TC4424 family. An 8-pin SOIC package option has been added to the family. The 8-pin DFN package option offers increased power dissipation capability for driving heavier capacitive or resistive loads. The TC4424A MOSFET drivers can easily charge and discharge 1800 pF gate capacitance in under 20 ns, provide low enough impedances in both the on and off states to ensure the MOSFET's intended state will not be affected, even by large transients. The TC4424A inputs may be driven directly from either TTL or CMOS (2.4V to 18V). In addition, the 300 mV of built-in hysteresis provides noise immunity and allows the device to be driven from slow rising or falling waveforms. The TC4424A dual-output 3A MOSFET driver family is offerd with a -40oC to +125oC temperature rating, making it useful in any wide temperature range application.

Key Features

• High Peak Output Current: 4.5A (typical)
• Wide Input Supply Voltage Operating Range: - 4.5V to 18V
• High Capacitive Load Drive Capability: - 1800 pF in 12 ns
• Short Delay Times: 40 ns (typical)
• Matched Rise/Fall Times
• Low Supply Current: - With Logic '1' Input - 1.0 mA (maximum) - With Logic '0' Input - 150 µA (maximum)
• Low Output Impedance: 2.5Ω (typical)
• Latch-Up Protected: Will Withstand 1.5A Reverse Current
• Logic Input Will Withstand Negative Swing Up To 5V
• Pin compatible with the TC4423/TC4424/TC4425 and TC4426A/TC4427A/TC4428A devices
• Space-saving 8-Pin 150 mil body SOIC and 8-Pin 6x5 DFN Packages
