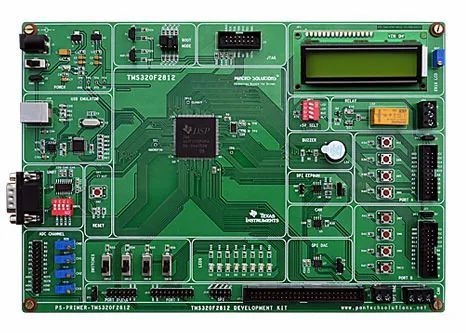

TMS320F2812 Primer Power Board Relay 1 Relay Buzzer 1 Buzzer Spi Dac 12 Bit Spi Dac Spi Eeprom 4k Spi Eeprom Can Interface Can
Negotiable
Product information
High-quality TMS320F2812 Primer Power Board Relay 1 Relay Buzzer 1 Buzzer Spi Dac 12 Bit Spi Dac Spi Eeprom 4k Spi Eeprom Can Interface Can supplied by Pantech Prolabs India Private Limited. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Buzzer:
1 Buzzer
Relay:
1 Relay
Spi Dac:
12 Bit Spi Dac
Analog To Digital Converter:
12-bit Adc, 16 Channels
Operating Frequency:
150 Mhz (6.67-ns Cycle Time)
Mac Operations:
16 X 16 And 32 X 32 Mac Operations
Numeric Lcd Display:
16x2 Numeric Lcd
Saram Memory:
1k X 16 Each Saram
Specifications
Buzzer:
1 Buzzer
Relay:
1 Relay
Spi Dac:
12 Bit Spi Dac
Analog To Digital Converter:
12-bit Adc, 16 Channels
Operating Frequency:
150 Mhz (6.67-ns Cycle Time)
Mac Operations:
16 X 16 And 32 X 32 Mac Operations
Numeric Lcd Display:
16x2 Numeric Lcd
Saram Memory:
1k X 16 Each Saram
Onboard Crystal Oscillator:
25mhz
Analog Inputs (Trimpot):
4 Analog Inputs (trimpot)
Digital Inputs (Slide Switch):
4 Digital Inputs (slide Switch)
Spi Eeprom:
4k Spi Eeprom
Digital Inputs (Push Switch):
8 Digital Inputs (push Switch)
Digital Led Outputs:
8 Digital Led Output
Motor Control Features:
Advanced Motor Control
Can Interface:
Can Interface
Power Supply Design:
Low-power (1.8-v Core @135 Mhz, 1.9-v Core @150 Mhz, 3.3-v I/o)
Boot Options:
Multiple Booting Option Connectors
Jtag Emulation Connector:
Onboard Ieee 1149.1 Jtag Emulation Connector
Included Accessories:
Primer Kit, 5v Power Adaptor, Rs232 Serial Cable, Cd: Examples, Datasheet, Software’s, Utility
Application Use Cases:
Servo Drives And Motion Control, Renewable Energy And Uninterrupted Power Supplies
Trade Term:
To be discussed
Payment Term:
To be discussed
Flash Memory Capacity:
Up To 128k X 16 Flash
Rom Memory Capacity:
Up To 128k X 16 Rom
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2014
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier
Features
- On Board XDS100 USB Emulator.
- Flash Memory Up to 128K x 16 Flash.
- ROM Memory Up to 128K x 16 ROM.
- 16 x 16 and 32 x 32 MAC Operations.
- 150 MHz (6.67-ns Cycle Time).
- 1K x 16 Each SARAM.
- 25MHz on board crystal.
- Motor Control Peripherals.
- 12-Bit ADC, 16 Channels.
- On board RS-232 connector with line driver.
- SCIA or SCIB can configure single UART.
- 8 Digital LED Output.
- 8 Digital Inputs (Push Switch).
- 4 Digital Inputs (Slide Switch).
- 4 Analog Inputs (Trimpot).
- 16x2 Numeric LCD.
- 1 Buzzer.
- 1 Relay.
- 12 bit SPI DAC.
- 4K SPI EEPROM.
- CAN interface.
- Multiple Booting Option Connectors.
- Onboard IEEE 1149.1 JTAG emulation connector.
- 16 x 16 and 32 x 32 MAC Operations.
- 150 MHz (6.67-ns Cycle Time).
- Low-Power (1.8-V Core @135 MHz, 1.9-V Core @150 MHz, 3.3-V I/O) Design.
- Advanced Motor control.
- Solar Power systems.
- Servo drives and motion control.
- Renewable Energy and Uninterrupted power supplies
- Flash Devices: Up to 128K x 16 Flash (Four 8K x 16 and Six 16K x 16 Sectors)
- ROM Devices: Up to 128K x 16 ROM
- 1K x 16 OTP ROM
- L0 and L1: 2 Blocks of 4K x 16 Each Single-Access RAM (SARAM)
- H0: 1 Block of 8K x 16 SARAM
- M0 and M1: 2 Blocks of 1K x 16 Each SARAM
- Primer kit.
- 5V Power Adaptor.
- RS232 Serial Cable,
- CD: Examples, Datasheet, Software’s, utility.
