TPU Shoe Soles Making Machine Container 1*40 Hq Product Shoe Sole HS Code 8477101090 Type Static Machine Trademark
SET
Negotiable
Product information
High-quality TPU Shoe Soles Making Machine Container 1*40 Hq Product Shoe Sole HS Code 8477101090 Type Static Machine Trademark supplied by Dongguan Kingstone Shoe-Making Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Container:
1*40 Hq
Machine Weight:
15 Tons
Guarantee:
2 Years, The Longest Time in China
Power Consumption:
25-30kw
Work Stations:
4 Stations
Specification:
7.5*3.8*2.8m
HS Code:
8477101090
Origin:
Dongguan City, China
Specifications
Container:
1*40 Hq
Machine Weight:
15 Tons
Guarantee:
2 Years, The Longest Time in China
Power Consumption:
25-30kw
Work Stations:
4 Stations
Specification:
7.5*3.8*2.8m
HS Code:
8477101090
Origin:
Dongguan City, China
Trade Term:
FOB, CIF, CFR, EXW
Power Supply:
Hydraulic
Model NO.:
JL-208-4S2G
Trademark:
Kingstone
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Function:
Making Sole
Motor:
Normal Motor/Servo Motor
Sole Mould:
One Mould One Pair
Applicable Material:
Plastic
Port Of Loading:
Shenzhen Port
Product:
Shoe Sole
Transport Package:
Standard Export Package
Type:
Static Machine
Raw Materials:
TPU Tr TPR PVC
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2015-07-21
Annual Revenue Amount:
Not specified
Numbers Of Employees:
29
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port
Product descriptions from the supplier
>> Descriptions
Products:Specialized in producing one color and two colors outsoles for various kinds of shoes,
such as sports shoes, leather shoes, soccer shoes, casual shoes, etc.
Material: Suitable for all kinds of thermoplastic raw materials, such as TPR TPU PVC and TR.
>> Features
Mold Carrier Unit
1. Mold thickness automatically compensated hydraulic clamping system.
2. Three-position (0°-90°) mold rotating head, providing multi-mode production capability
for one color and two color unit soles.
3. Unique rotating head positioning mechanism, providing precise and fast mold positioning.
4. Upper and bottom molds ejector units for easy, fast and distortion free sole removal.
5. Automatic sliding unit for flexible and easy sole collection and for easy insertion parts placement.
6. Separate blowing system on three faces rotating head and bottom mold plate, providing easy soles and sprue removal.
7. Suitable for molding TPU in multi-color unit soles by injection system.
Feeding Unit
1. Electric motor driven injection point height adjustment system, suitable for different size of mold.
2. Adjustment or injection point with horizontal leveling, no material heap at channel or extruders.
3. Precise barrel temperature control with P.I.D. control system.
4. It is easy and fast for material changing with less waste.
Electric Control System
1. With self-diagnosis analysis system, current status of machine operation can be monitored to insure smoothly production.
2. Providing with work file records, processing parameters for different molds can be saved with individual files, production is more efficient.

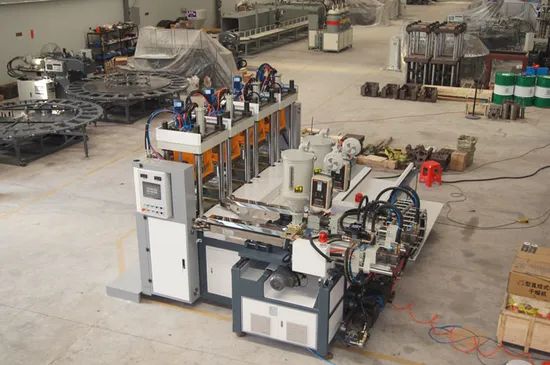

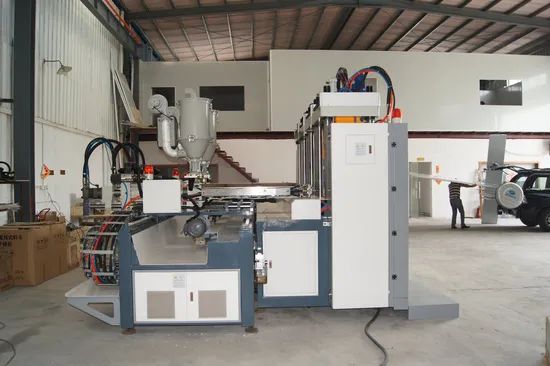

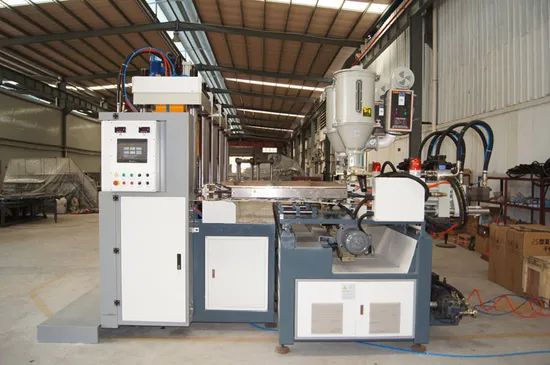

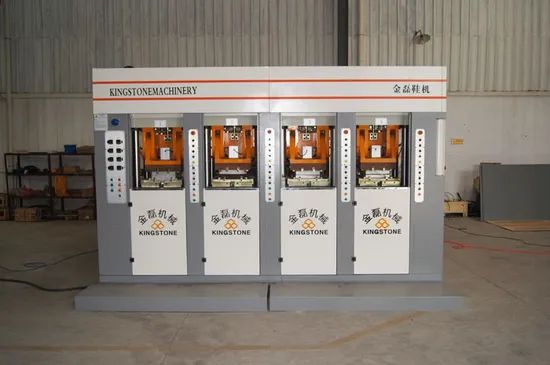

>> Machine Photos
>> Specifications
>> Finished Products
Below products is samples for your reference.
We also can make custom design with your requirements.
>> Customer Visits
>> Package & Shipping
Products:Specialized in producing one color and two colors outsoles for various kinds of shoes,
such as sports shoes, leather shoes, soccer shoes, casual shoes, etc.
Material: Suitable for all kinds of thermoplastic raw materials, such as TPR TPU PVC and TR.
>> Features
Mold Carrier Unit
1. Mold thickness automatically compensated hydraulic clamping system.
2. Three-position (0°-90°) mold rotating head, providing multi-mode production capability
for one color and two color unit soles.
3. Unique rotating head positioning mechanism, providing precise and fast mold positioning.
4. Upper and bottom molds ejector units for easy, fast and distortion free sole removal.
5. Automatic sliding unit for flexible and easy sole collection and for easy insertion parts placement.
6. Separate blowing system on three faces rotating head and bottom mold plate, providing easy soles and sprue removal.
7. Suitable for molding TPU in multi-color unit soles by injection system.
Feeding Unit
1. Electric motor driven injection point height adjustment system, suitable for different size of mold.
2. Adjustment or injection point with horizontal leveling, no material heap at channel or extruders.
3. Precise barrel temperature control with P.I.D. control system.
4. It is easy and fast for material changing with less waste.
Electric Control System
1. With self-diagnosis analysis system, current status of machine operation can be monitored to insure smoothly production.
2. Providing with work file records, processing parameters for different molds can be saved with individual files, production is more efficient.
>> Machine Photos
>> Specifications
| Machine model | JL-208-2S2G | JL-208-4S2G | |||
| Mould-clamping Unit | |||||
| Work station | 2 | 2 | |||
| Clamping force | TON | 220 | 220 | ||
| Opening stroke | MM | 350 | 350 | ||
| Mould dimension | MM | 300*400 | 300*400 | ||
| Mould height | MM | 100-200/150-250 | 100-200/150-250 | ||
| Rotating head | . | 0°-90° | 0°-90° | ||
| Injection Unit | |||||
| Injector | SET | 2 | 2 | ||
| Screw diameter | MM | 60/65/70 | 60/65/70 | ||
| Screw L/D ratio | L/D | 22 | 22 | ||
| Max.injection volume | cm3 | 650-1000 | 650-1000 | ||
| Injection pressure | Kg/cm² | 650 | 650 | ||
| Screw rotation speed | R.P.M | 0-200 | 0-200 | ||
| Electricity Consumption | Normal | Servo | Normal | Servo | |
| Heating power of injector | KW | 11*2 | 11*2 | 11*2 | 11*2 |
| Hydraulic unit motor | KW | 22.5 | 15+11 | 22.5+13 | 15+15 |
| Total power | KW | 44.5 | 48 | 57.5 | 52 |
| Temperature control | Section | 4 | 4 | 4 | 4 |
| Power consumption per hour | Kw/h | 25-30 | 15-20 | 32-37 | 22-27 |
| Dimension and Weight | |||||
| Machine dimension(L*W*H) | M | 3.5*3.8*2.8 | 7.5*3.8*2.8 | ||
| Machine weight | TONS | 9 | 15 | ||
>> Finished Products
Below products is samples for your reference.
We also can make custom design with your requirements.
>> Customer Visits
>> Package & Shipping
