TPX6111 TPX6113 Horizontal Boring and Milling Machine with DRO
Set
Negotiable
Product information
High-quality TPX6111 TPX6113 Horizontal Boring and Milling Machine with DRO supplied by Dalian Viseno Precision Cnc Co., Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
100/Year
Package Gross Weight:
12200.000kg
Voltage:
220/380/440/460V
Package Size:
439.00cm * 260.00cm * 285.00cm
HS Code:
8459310000
Controlling Mode:
Artificial
Tool Type:
Boring/Milling/Drilling Cutter
Certification:
CE, ISO 9001
Specifications
Production Capacity:
100/Year
Package Gross Weight:
12200.000kg
Voltage:
220/380/440/460V
Package Size:
439.00cm * 260.00cm * 285.00cm
HS Code:
8459310000
Controlling Mode:
Artificial
Tool Type:
Boring/Milling/Drilling Cutter
Certification:
CE, ISO 9001
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Port Of Loading:
Dalian
Trade Term:
FOB, CIF, CFR, EXW
Machine Color:
Factory Standard or Customized
Structure:
Horizontal Boring Machine
Coordinate Boring Machine Type:
Horizontal Type
DRO:
Included for X/Z-Axis
Condition:
New
Transport Package:
Nonfumigation Wooden Cases
Precision:
Precision
Automatic Grade:
Semiautomatic
Specification:
Spindle Dia: 110 130mm
Payment Methods:
Support payments in USD
Payment Term:
T/T, LC
Model NO.:
TPX6111 TPX6113
Trademark:
VSN
OEM:
to Be Consulted
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2022-04-25
Annual Revenue Amount:
Not specified
Numbers Of Employees:
37
Preferred Payment Term:
T/T, LC
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Dalian
Certificates:
Our certificates
Product descriptions from the supplier

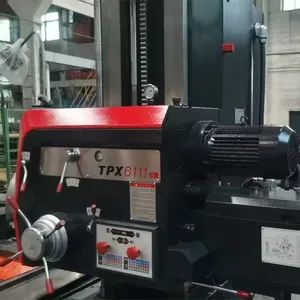

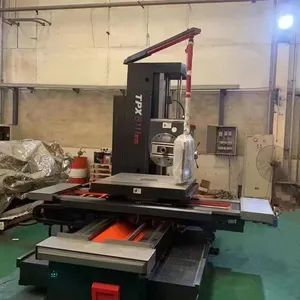

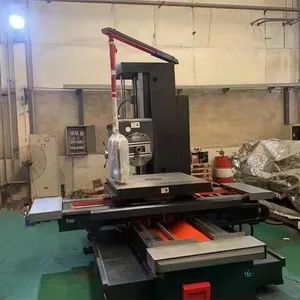

TPX6111 TPX6113 Horizontal Boring and Milling Machine
| Machine Type | DRO & Table-type & Horizontal Boring Machine |
| Spindle Diameter | Φ110MM, Φ130MM |
| Worktable Size | 1100x960MM-1800x1600MM |
| Load Capacity | 2,500-10,000KGS |
| Power of Main Motor | 7.5 kW, 15kW |
TPX6111 and TPX6113 are a table-type horizontal boring and milling machine, and has following main features:
1. It is mainly used for drilling, under-reaming, boring, reaming, milling, counter-boring,threading, and so on.
2. The spindle can be equipped with an automatic tool clamping/unclamping device and has an optional taper hole of 7:24 No50.
3. The machine can be equipped with a rear column(Optional) to expand its capabilities, enabling it to machine holes with special alignment requirements to a high precision.
4. It is a key equipment for complex machining of housing parts.
5. CNC system is available, Siemens or Fanuc.
6. Machine Color can be customized.
1. It is mainly used for drilling, under-reaming, boring, reaming, milling, counter-boring,threading, and so on.
2. The spindle can be equipped with an automatic tool clamping/unclamping device and has an optional taper hole of 7:24 No50.
3. The machine can be equipped with a rear column(Optional) to expand its capabilities, enabling it to machine holes with special alignment requirements to a high precision.
4. It is a key equipment for complex machining of housing parts.
5. CNC system is available, Siemens or Fanuc.
6. Machine Color can be customized.
| Technical Items | TPX6111B | TPX6111B/2 | TPX6111B/3 | TPX6113B | TPX6113B/2 | Unit |
| Diameter of spindle | Φ110 | Φ110 | Φ110 | Φ130 | Φ130 | mm |
| Taper of spindle bore | Morse 6 | Morse 6 | Morse 6 | Metric 80 | Metric 80 | |
| Maximum torque of spindle | 1225 | 1225 | 1225 | 3136 | 3136 | N.m |
| Maximum axial thrust of spindle | 12250 | 12250 | 12250 | 31360 | 31360 | N |
| Steps of spindle speed | 22 | 22 | 22 | 24 | 24 | - |
| Speed range of spindle | 8-1000 | 8-1000 | 8-1000 | 4-800 | 4-800 | rpm |
| Power of main motor | 7.5 | 7.5 | 7.5 | 15 | 15 | kW |
| Maximum torque of face plate | 1960 | 1960 | 1960 | 4900 | 4900 | N.m |
| Diameter of face plate | Φ600 | Φ600 | Φ600 | Φ750 | Φ750 | mm |
| Speed range of face plate | 4-200 | 4-200 | 4-200 | 2.5-125 | 2.5-125 | rpm |
| Speed steps of face plate | 18 | 18 | 18 | 18 | 18 | - |
| Worktable size (LxW) | 1100x960 | 1100x960 | 1250x1100 | 1600x1400 | 1800x1600 | mm |
| Maximum load capacity of wokrtable | 2500 | 2500 | 3000 | 8000 | 10,000 | kg |
| Size of T-slot | 22 | 22 | 22 | 28 | 28 | mm |
| Number of T-slots | 7 | 7 | 7 | 9 | 11 | - |
| Travel of X-axis | 900 | 1250 | 1600 | 1600 | 2000 | mm |
| Travel of Y-axis | 900 | 900 | 1200 | 1400 | 1800 | mm |
| Travel of Z-axis | 1400 | 1400 | 1400 | 2000 | 2000 | mm |
| Travel of W-axis | 600 | 600 | 600 | 900 | 900 | mm |
| Travel of U-axis | 180 | 180 | 180 | 250 | 250 | mm |
| Travel of B-axis | 360 | 360 | 360 | 360 | 360 | ° |
| Minimum distance between spindle center to worktable size | 0 | 0 | 0 | 0 | 0 | mm |
| Rapid travelling speed of X/Y/Z/W | 2500 | 2500 | 2500 | 2500 | 2500 | mm/min |
| Feedrate range /revolution of spindle of X/Y/Z/W | 0.04-6/ 0.01-1.88 |
0.04-6/ 0.01-1.88 |
0.04-6/ 0.01-1.88 |
0.05-8/ 0.01-2 |
0.05-8/ 0.01-2 |
- |
| Digital Measurement Accuracy of X/Y/Z-axis | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | mm |
| Digital Measurement Accuracy of B-axis | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | |
| ° | ||||||
| Overall dimensions | 4190x2454 x2750 |
4930x2870 x2750 |
5028x3359x 3079 |
6695x3647x 3442 |
7030x4665x 3800 |
mm |
| Machine weight | 11500 | 12000 | 14000 | 24000 | 28000 | kg |
