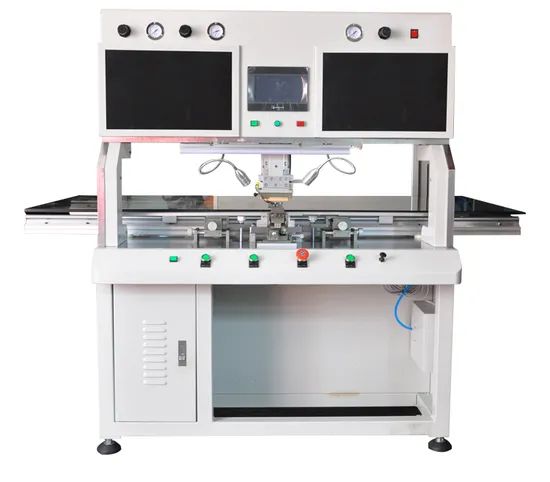

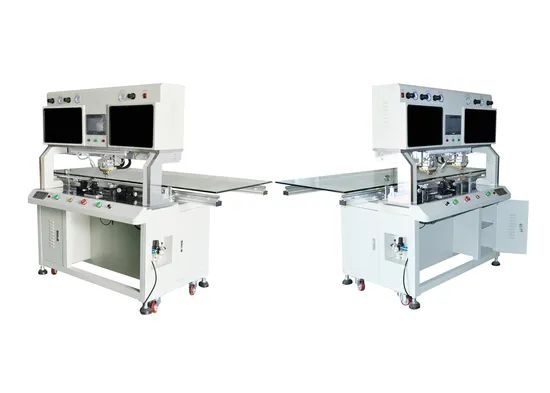

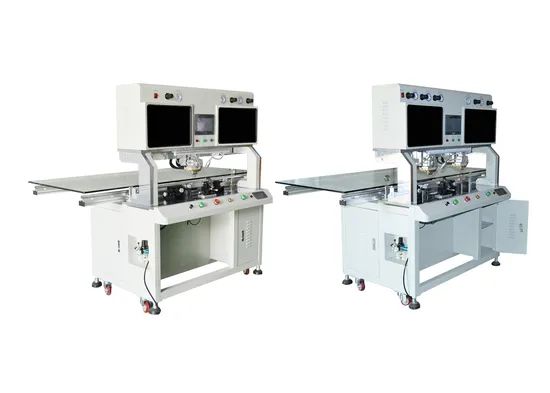

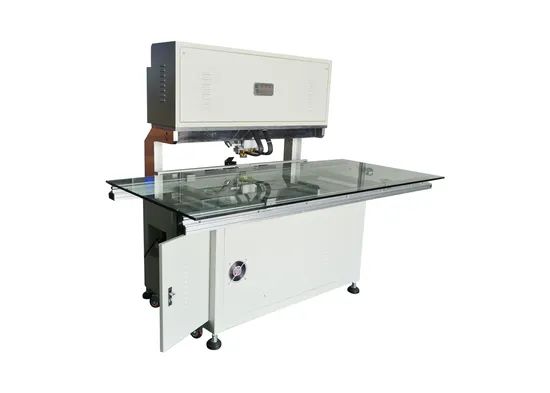

TV LCD Repair Machine LCD Bonding
1-4 Piece
$3,1005 Piece
$3,000Product information
High-quality TV LCD Repair Machine LCD Bonding supplied by Guangzhou Chuang Li You Machinery Co., Ltd.. Bulk wholesale pricing ranges from $3,000 to $3,100 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
1000
Package Size:
123.00cm * 92.00cm * 175.00cm
Package Gross Weight:
450.000kg
Specification:
450KG
Model NO.:
616DH
Trademark:
CLY
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Specifications
Production Capacity:
1000
Package Size:
123.00cm * 92.00cm * 175.00cm
Package Gross Weight:
450.000kg
Specification:
450KG
Model NO.:
616DH
Trademark:
CLY
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF
Origin:
Guangzhou
Port Of Loading:
Guangzhou Huangpu Port
Payment Term:
LC, T/T
Payment Methods:
Support payments in USD
Training:
Teach Online or Learning for Training Videos
Transport Package:
Wooden Box
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-09-27
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF
Port Of Loading:
Guangzhou Huangpu Port
Certificates:
CE
Product descriptions from the supplier
| Model NO. | 616DH | Use LCD Screen Repair | Tab Bonding |
| Other Name | LCD Repair Bonding Machine | Peak Power | 1500W |
| Voltage | AC220V | Hot Pressing Time | Can Be Set (S) |
| Work Pressure | 0.3~0.4 (MPa) |
Machine Shape Size | 1800(L)X1200(W)X1520(H)mm |
| Peak Temperature | + / - 0.3 Degrees Celsius | Weight | 450kg |
Welcome to Guangzhou Chuang Li You Machinery Co., Ltd.
Product Description:
The system control is: DELTA - PLC control (single). Production parameters have store brands on the market such as Samsung, LG, Sharp, Chi Mei, AUO, Huaxing Photoelectric, Hitachi, Hanyu Display, Huasheng, Zhonghua, etc. The system features four different temperature set points for precise control.
The stability control is: Panasonic - TC2. It utilizes imported temperature sensing line and Panasonic's newest chips (TC2) for accurate temperature control and fast heating time.
The operating interface is: WV full-color PDA (single communication). It offers a 6.5-inch intelligent man-machine interface for stable and reliable equipment operation.
Heating method: pulse heating mode. This mode provides fast heating/cooling and auxiliary cooling functions with high precision.
High precision counterpoint: micrometer counterpoint. Equipped with an advanced optical alignment system for precise product counterpoint and production.
The maintenance and brand size: Unlimited size and screen card compatibility with TFT LCD, LED screen, TAB, COG, and PCB bonding. The 616DH model offers exclusive domestic original installed after-sales service and patented products.
Features:
- Repair any inches below 100 inches.
- Refurbish various screen issues like black belt, black line, color line, ribbons, etc.
- Pulse heating precision of +/-0.3ºC.
- Response time from room temperature to 180 degrees in 2 seconds.
- Plane precision (hot-pressing side) of 0.005 mm.
- Low repair rate and easy operation.
| Model number | 616DH |
| Heating Mode | Pulse |
| PID Temperature Control System Brand | Siemens temperature control module |
| Temperature curve:Factory Reset | |
| Peak temperature + / - 0.3 degrees Celsius | |
| From room temperature to 180 degrees response time for 2 seconds | |
| Brand:the United State OMEAG | |
| Heat Press Head | Materials: titanium alloy |
| Place of origin: the United States | |
| Plane precision (hot-pressing side) : 0.005 mm | |
| Industrial Control Unit | PLCS:DELTA |
| HDMI:Weinview | |
| Imaging Unit | COF counterpoint: under counterpoint (optical path: lens>quartz>ITO electrode COF package) |
| PCB counterpoint: no | |
| Microscope magnification: 20 ~ 100 consecutive times | |
| Number of lens: 2 | |
| COF counterpoint display: 19 inch | |
| PCB counterpoint display:no | |
| Light above:yes | |
| Light down:no | |
| COF Trimming Unit | Place of origin: Taiwan |
| Type of guide rail:V guide rail | |
| Accuracy: 0.01 | |
| Adjustable direction: X/Y/R | |
| X-y range: + / - 6.5mm | |
| R range:coarse adjustment 360 degrees, fine adjustment + / - 5 degrees | |
| COF Fixture | Mechanical clamping fixture way,Z to tilt radius can be adjusted/ Adjustable horizontal angel/COF can be extended |
| Lens Fine-Tuning Unit | Type of guide rail: precise cross rail . Control mode: X - Y - Z micrometer control |
| Position Detection | NO |
| Silicone Skin/Tefloon | Change position manually |
| LCD Drive (Platform) | Sliding or fixed optional manually |
| Alarm | Abnormal:temperature/thermocouple anomaly/actions |
| Heat Seal Head Counterpoint | Independent pneumatic,Pressure reducing valve be adjusted manually |
| Control Way | Touch screen + button operation |
| Parameter Setting | According to the need to set to storage more groups of hot-pressing parameters |
| Voltage | AC220 v |
| Peak Power | 1500W |
| Weight | 450kg |
| Size Of Machine (mm) | 1800(L)X1200(W)X1520(H)mm |
Product Description: LCD TV Repair Bonding Machine
Welcome to Guangzhou Chuang Li You Machinery Co., Ltd.! Our LCD TV Repair Bonding Machine is designed to provide efficient and reliable repair solutions for LCD TVs. Here are some key features and benefits:
- Payment and Delivery:Payment terms include EXW/FOB/CIF, with options for 100% deposit in advance or 50% deposit and 50% before delivery. Delivery time is approximately one week.
- Warranty:Enjoy a standard 1-year warranty and lifetime technical support for peace of mind.
- Training:Choose between factory training or video training to ensure you get the most out of your machine. More details can be foundhere.
- Packaging:Our machine is carefully packaged to ensure safe delivery.
- Installation:Refer to our disassembly video for easy installation instructions upon receiving the machine.
Experience the convenience and quality of our LCD TV Repair Bonding Machine for all your repair needs. Contact us today to learn more!

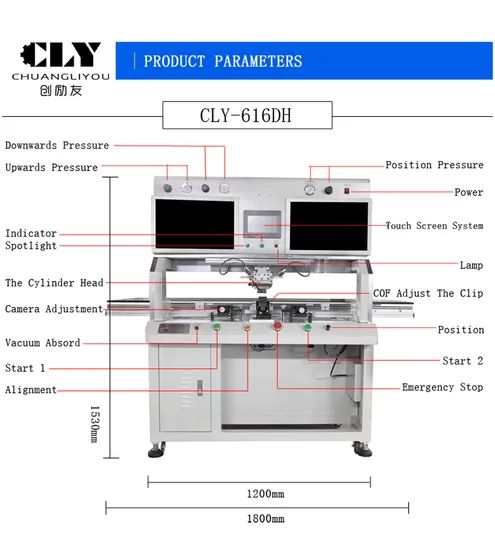

616DH Specification
Single Head Manual Platform Automatic Pressure Machine
Equipment Model Number:616DH (Single Head)
Device Description:Repair screen machine / Bonding machine
Introducing the 616DH Single Head Manual Platform Automatic Pressure Machine from Guangzhou Chuang Li You Machinery Co., Ltd. This machine is designed for screen repair and bonding, providing efficient and precise results.
Product Description:
Introducing the cutting-edge device from Guangzhou Chuang Li You Machinery Co., Ltd. - the 616DH. This device is designed for FPC, COF, TAB, LCD Panel, and PCB combination bonding, making it versatile and efficient for various applications.
Key Features:
- Applicable LCD panel specifications: 7" - 100"
- Applicable LCD panel thickness: 0.3mm - 1.1mm (Single glass)
- Bonding IC number: Multiple / Panel Can be set
- Bonding accuracy: Within ±1.5μm (support 4K screen)
- Equipment requirements for the work environment: Clean, No dust, Clean room
Technical Specifications:
- Power Supply: AC 220V±10%, 50HZ, 1500W
- Heating Type: Pulse (rapid heating / cooling and auxiliary cooling function)
- PID Temperature Control System: Brand: DELTA
- Hot pressing head: Materials: Japan Titanium, Origin: United States 50*1.4
- Industrial control units / Programmer: DELTA PLC FX-C14T
Additional Features:
- Alarm device for pressure abnormal, temperature anomalies, thermocouple abnormal, and action abnormal
- Control mode: Touch screen + button operation Using Taiwan's Wei Lun touch screen dual-core
- Parameter setting: Store multiple sets of hot pressing parameters
Dimensions and Weight:
- Body size: 1800x1200x1520mm (L*W*H)
- Machine weight: 450KG
With the 616DH, you will receive all the necessary accessories for ACF/COF/TAB repairing, eliminating the need to purchase extra accessories. Upgrade your bonding process with the advanced features of the 616DH.
| No. | Name | Model No. | Quantity | Unit | Specification | Remark |
| 1 | Single Head Bonding Machine | 616DH | 1 | Set | Single Head | |
| 2 | ACF Anisotropic Conductive Film | AC-7206U-18 | 1 | Piece | 1.2X50M | Glass special |
| 3 | ACF Anisotropic Conductive Film | AC-2056R-35 | 1 | Piece | 2.0X50M | PCB special |
| 4 | Acetone Liquid | BT-H1 | 1 | Bottle | 500ML | |
| 5 | Absolute Alcohol | CH3CH2OH | 2 | Bottle | 500ML | |
| 6 | ACF Removing Liquid | G-450 | 1 | Bottle | 500ML | |
| 7 | Hitachi Blue Glue | 1 | Bottle | 100ML | ||
| 8 | Fuji Silicone | 1 | Piece | 50M | ||
| 9 | Tefloon | 1 | Piece | 50M | ||
| 10 | Heating Solder Iron | 1 | Piece | 30W | ||
| 11 | Alcohol Bottle | 2 | Bottle | |||
| 12 | TAB Cutter | 1 | Piece | |||
| 13 | Optical Microscope | 1 | Piece | |||
| 14 | LCD Test Board | HXV59 | 1 | Piece | ||
| 15 | Air Compressor | OTS750 | 1 | Piece | Mute Oil-free | |
| 16 | Cleanroom Wipers | 1 | Piece | |||
| 17 | Cotton Swab | 1 | Piece | |||
| 18 | Handheld Magnifier | 1 | Piece | |||
| 19 | Precision Tweezers | Elbow, Straight | 2 | Piece | High Hardness Hyperfine |
